Bosch Rexroth offers 39 articles for mounting surface elements in aluminium profile structures: edge trim profiles for slot 6, 8, and 10 in lengths of 2000 mm and 10000 mm (signal grey), protective glazing profiles in aluminium (slot 8 and 10) and plastic PP/TPE, sliding door profiles, clamping strips, clamp bushings, and floor panels in 5x1000x1200 mm (grey and ESD black). These components fix glass panels, covers, grids, and boards directly into slot-8 and slot-10 profiles.
The ESD equipotential bonding element (art. 3842536148) provides electrostatic-safe integration of floor panels and surface elements in EPA zones. Retaining brackets for slot 8/10 and transparent or opaque versions of the glazing profile complete the range for safety-critical installations.
| Product group | Slot/grid | Material | Length |
|---|---|---|---|

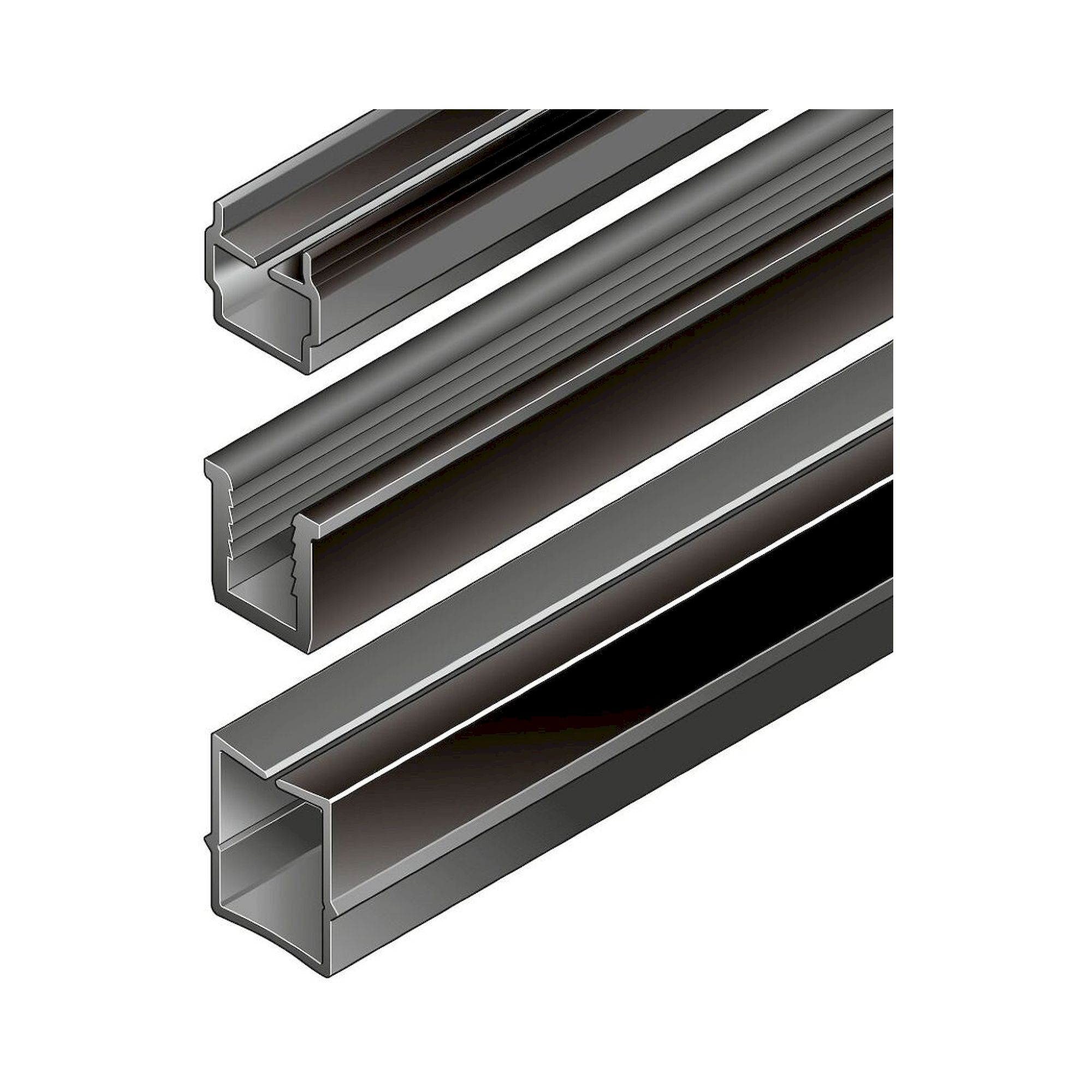

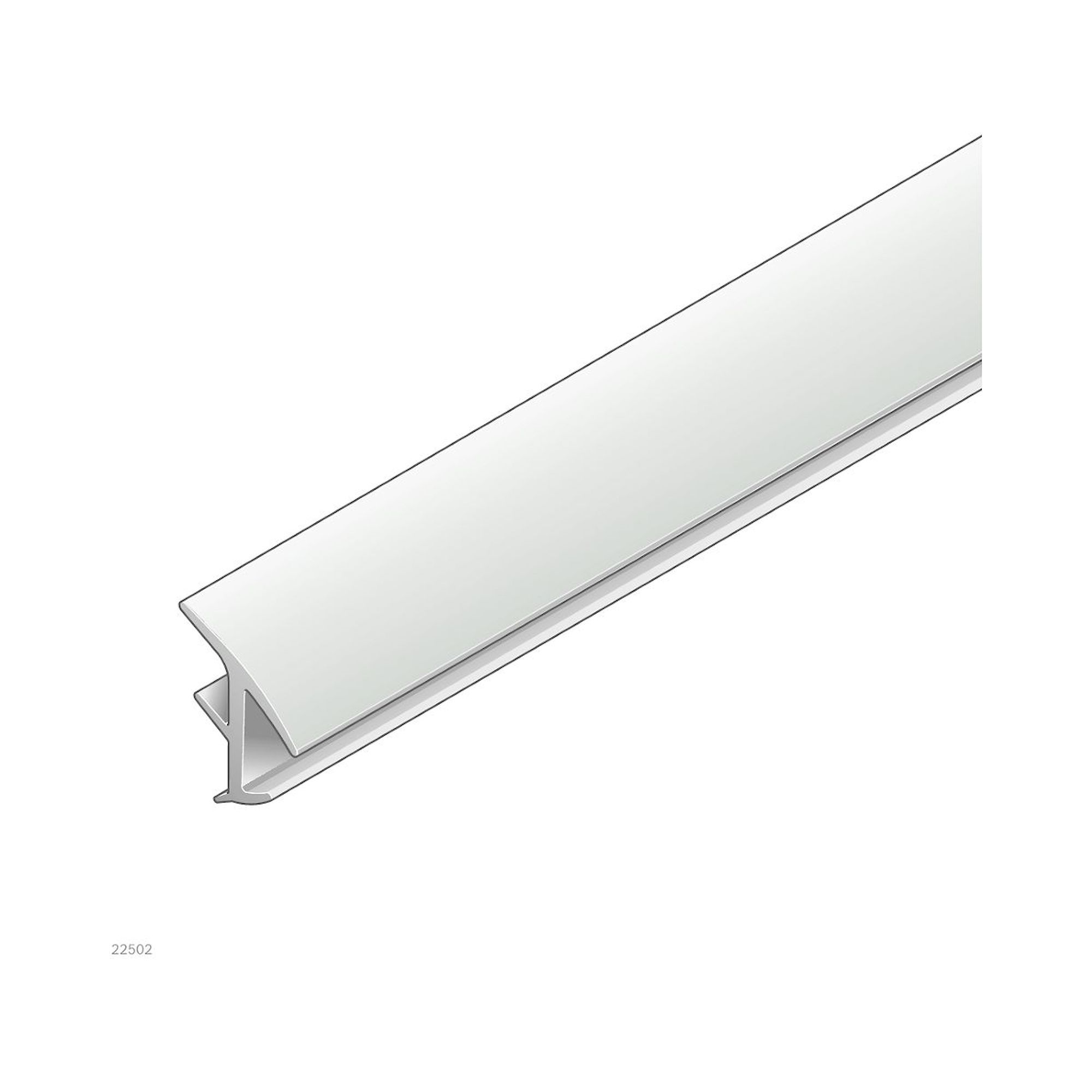

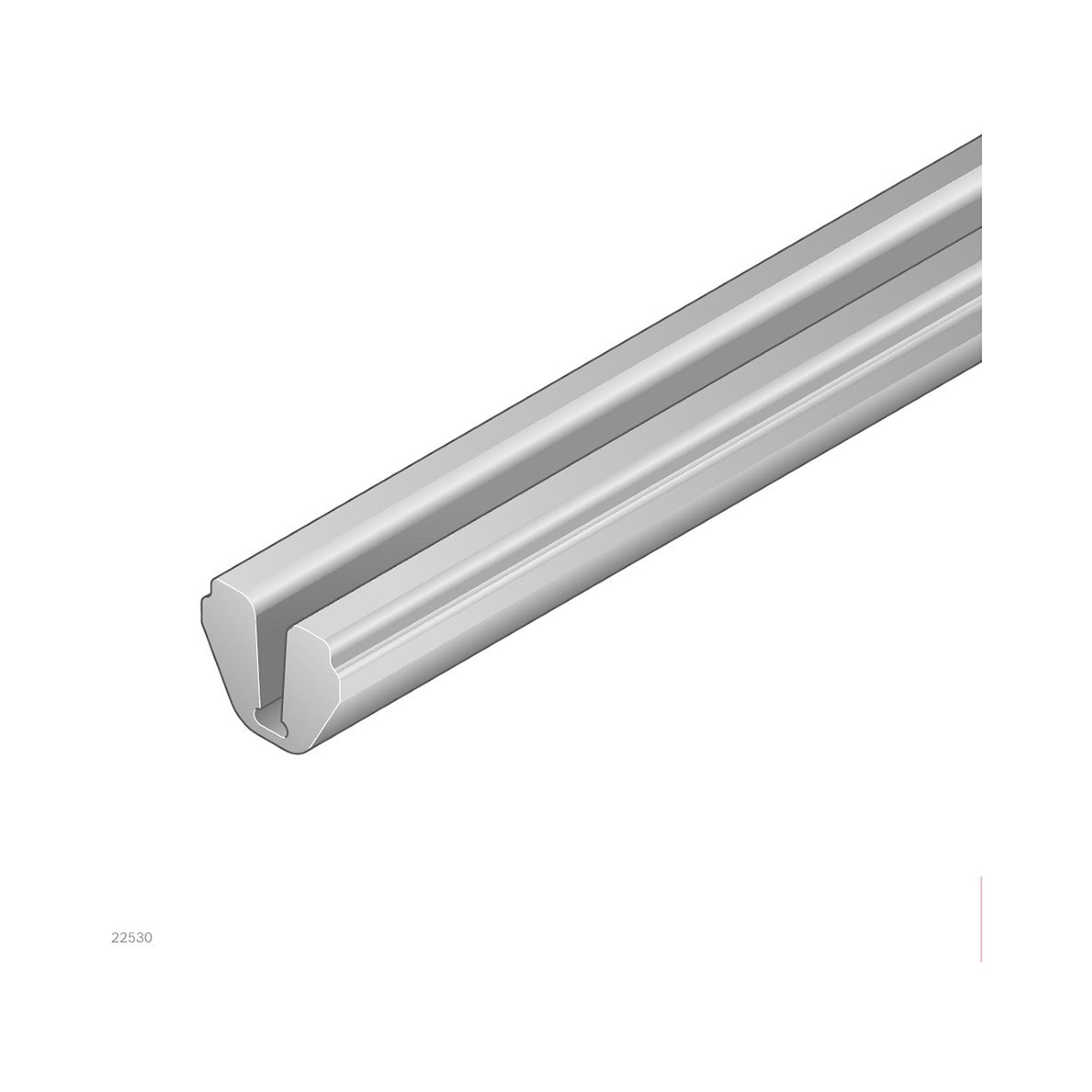

| Edge trim profile | N6, N8, N10 | PVC (signal grey) | 2000 mm, 10000 mm |

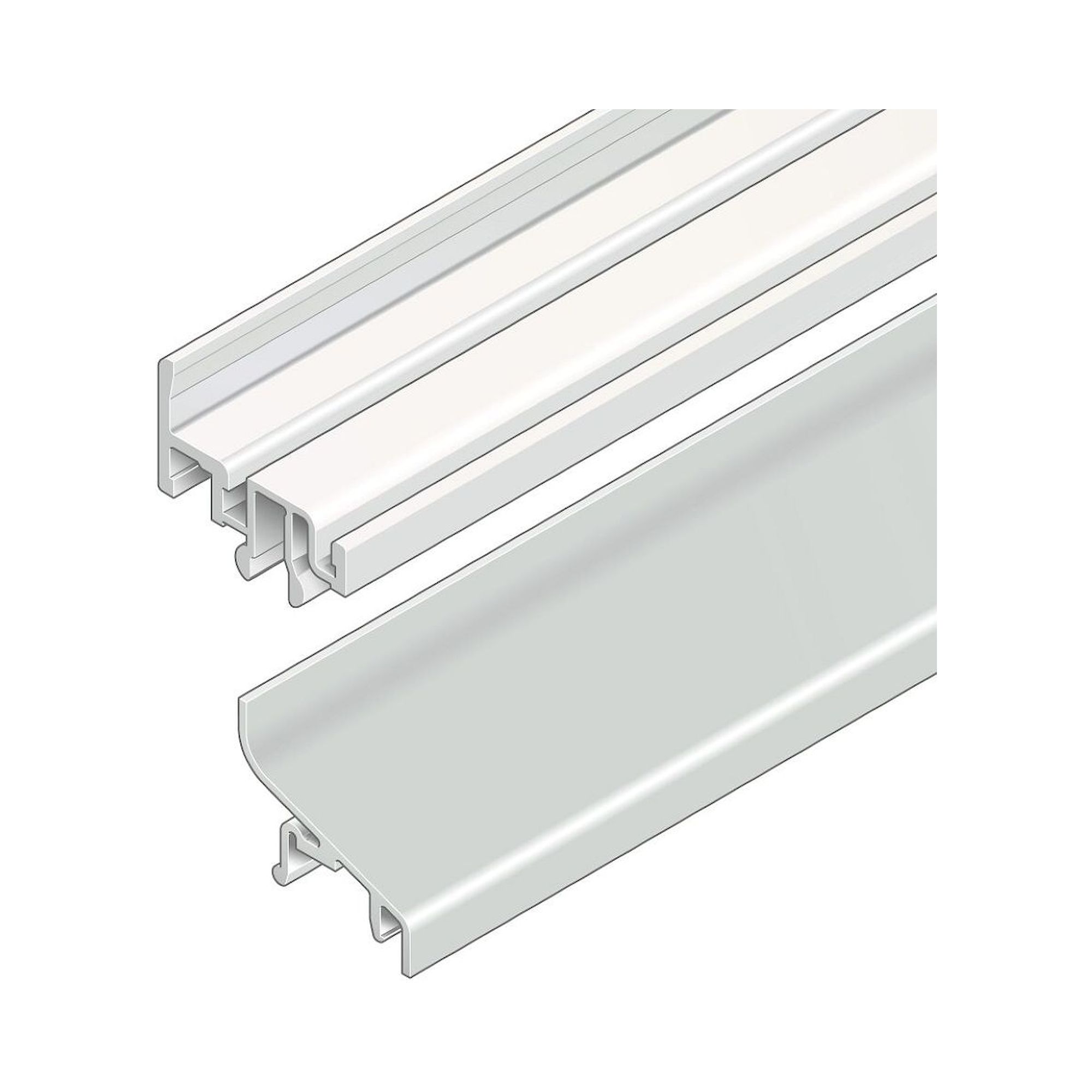

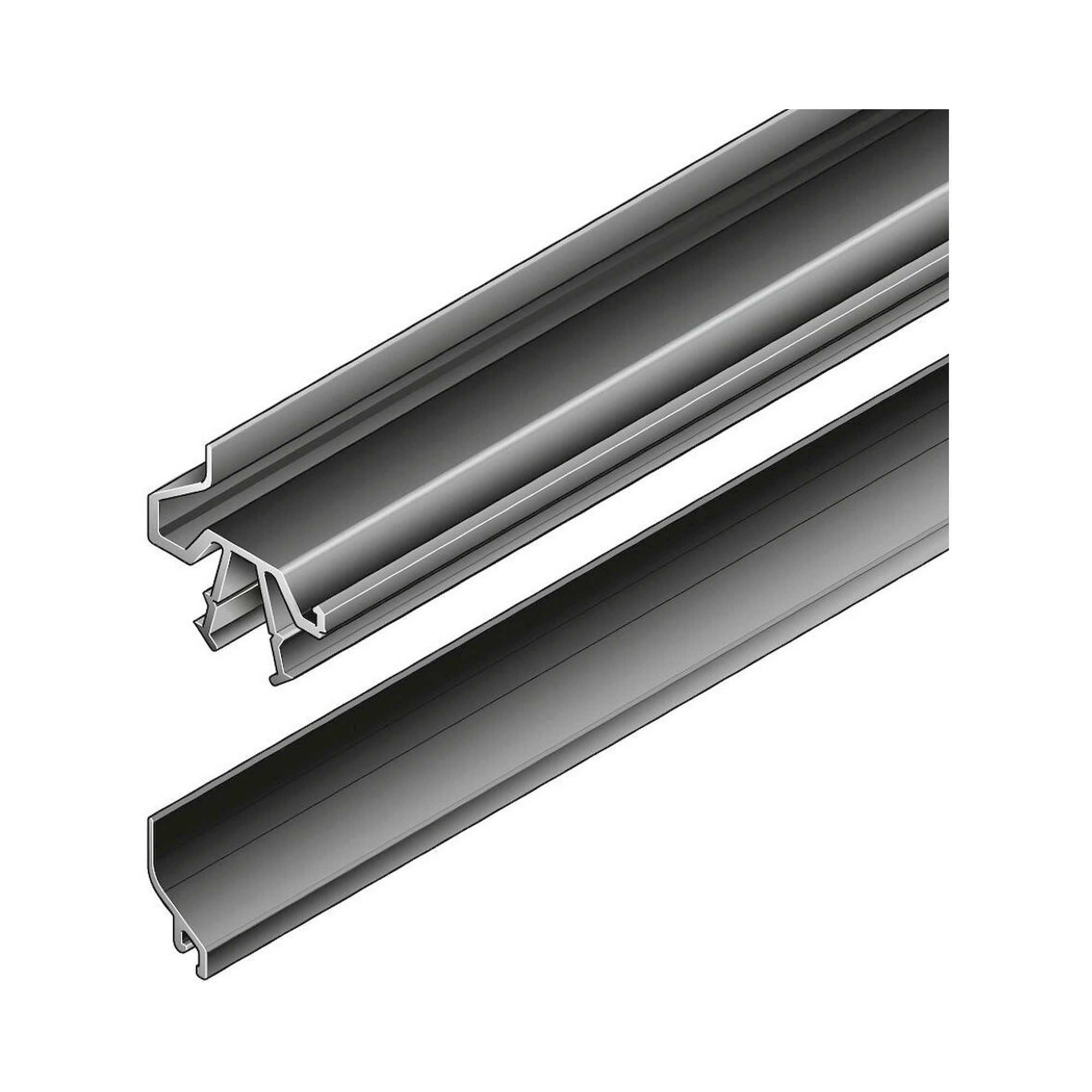

| Protective glazing profile | N8, N10 | Aluminium / PP/TPE grey | 2000-2100 mm |
| Clamping strip | N8, N10 | Aluminium | 2000 mm |
| Floor panel | - | Grey / ESD black | 1000x1200 mm |
| Clamp bushing | 8/10 | Aluminium | - |
| ESD equipotential bonding | - | - | 3842536148 |
Typical applications: Installing glass panes and acrylic sight windows in machine guards and enclosures, fitting perforated sheets and grid panels in production cells, mounting antistatic floor panels in EPA zones, and assembling sliding door partition walls and room dividers using the Bosch Rexroth modular aluminium profile system.
