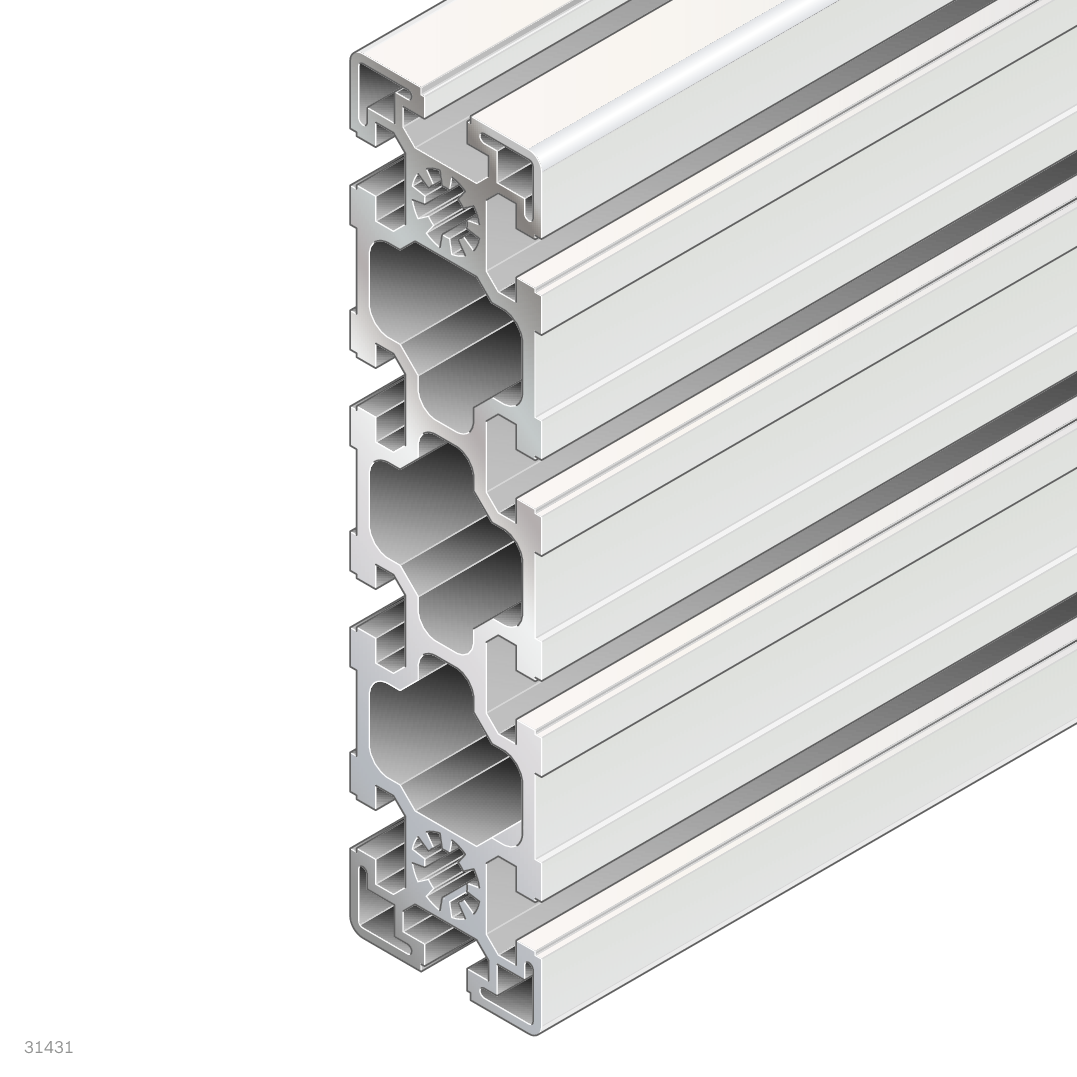

The product may differ from the illustration
Heavy-section strut profile 45x180 mm on a 45 mm modular grid, made from anodized aluminum for ESD-safe machine frames and assembly lines. Supplied as a pack of 6 profiles, each 6070 mm long, with 10 open slots and M12-tapped cores ready for direct bolting. Recommended accessories: cover cap 45x180 in signal gray or black.
Strut Profile 45x180, 6x6070 mm, Anodized Aluminum, ESD-Compatible - Bosch Rexroth 3842553616
BOSCH REXROTH Original product
Net price (excl. VAT)
€3,624.17
Excl. 19% VAT , excl. Shipping Cost
Item BRR-3842553616
Manufacturer no. 3842553616
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842553616
Country of originGermany
Customs tariff number76042100
ConditionNew
Article
BRR-3842553616
Frequently Bought Together
- This Item: €3,624.17Excl. 19% VAT , excl. Shipping Cost
- Strut Profile 90x90 M16/M16, 1000 mm - Bosch Rexroth 3842990502-1000 €135.28Excl. 19% VAT , excl. Shipping Cost
- Strut Profile 45x45L, 6070 mm, Anodized Aluminum, ESD-Suitable - Bosch Rexroth 3842553611 €2,020.92Excl. 19% VAT , excl. Shipping Cost
Total price
The Bosch Rexroth strut profile 45x180 is a high-load aluminum section for demanding frame structures, machine bases, and ESD-protected assembly lines. Each pack contains 6 profiles at the standard length of 6070 mm; individual profile weight is 6.9 kg.
- 10 open slots allow flexible attachment of connectors, fasteners, and add-on components without additional machining
- M12 threads in all core bores, plus D17 and D17V bores in defined slots for direct bolted connections
- ESD-compatible - anodized surface meets the requirements of electrostatic-protected work areas
- High bending stiffness: area moment of inertia lx = 766.7 cm⁴ (x-direction), ly = 57.3 cm⁴ (y-direction)
- Profile surface area 25.5 cm², mass 6.9 kg per piece - favorable weight-to-load-bearing ratio
Technical data
| Property | Value |
|---|---|
| Cross-section | 45x180 mm |
| Length [L] | 6070 mm |
| Delivery unit | 6 pieces (packaging unit in standard length) |
| Modular dimension | 45 mm |
| Profile slots / open slots | 10 |
| Profile type | Standard |
| Profile machining | M12 in all core bores; D17 in slots B/J, E/G; D17V in slots A/F |
| Material | Aluminum, anodized |
| Color | Natural |
| ESD | yes |
| Profile surface [A] | 25.5 cm² |
| Mass [m] | 6.9 kg |
| Weight (pack) | 273.6 kg |
| Area moment of inertia X [lx] | 766.7 cm⁴ |
| Area moment of inertia Y [ly] | 57.3 cm⁴ |
| Moment of resistance X [Wx] | 85.2 cm³ |
| Moment of resistance Y [Wy] | 25.5 cm³ |
| Torsional moment of inertia [It] | 44.4 cm⁴ |
| Moment of torsion resistance [Wt] | 17 cm³ |
| Recommended accessories | Cover cap 45x180, signal gray; cover cap 45x180, black |
| Manufacturer Nr. | 3842553616 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 273.600000 |
| Lenght | 6070 mm |
| Note | Gemäß der aktuellen Preisstruktur werden für Bestellungen von Profilen mit einer Länge von 1500 mm zusätzliche Kosten in Höhe von 80,00 Euro berechnet. |
| HS-Code | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
