The product may differ from the illustration
Heavy-duty aluminum strut profile with a 90x180mm cross-section and 6070mm length, supplied as a pack of 3. Features 12 open slots (profile slot type 10), M16 machining in all core channels, and ESD suitability for electrostatically protected assembly environments. Material: aluminum, anodized, natural color.
Strut Profile 90x180, 3x6070mm, Anodized Aluminum, ESD-Suitable - Bosch Rexroth 3842553617
BOSCH REXROTH Original product
Net price (excl. VAT)
€3,938.33
Excl. 19% VAT , excl. Shipping Cost
Item BRR-3842553617
Manufacturer no. 3842553617
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842553617
Country of originSweden
Customs tariff number76042100
ConditionNew
Article
BRR-3842553617
Frequently Bought Together
- This Item: €3,938.33Excl. 19% VAT , excl. Shipping Cost
- Strut Profile 90x90 F2/-, 1000 mm, Anodized Aluminum, 8 Slots - Bosch Rexroth 3842990505-1000 €140.79Excl. 19% VAT , excl. Shipping Cost
- Strut Profile 90x90L M12/D17, 1000 mm - Bosch Rexroth 3842992423-1000 €103.99Excl. 19% VAT , excl. Shipping Cost
Total price
The Bosch Rexroth 90x180 strut profile is a load-bearing aluminum structural profile for demanding frame and support structures in industrial assembly. Cross-section 90x180mm, length 6070mm, delivered as a packaging unit of 3 bars. The anodized aluminum construction is ESD-suitable, making it compatible with electrostatic discharge-protected workstations and assembly lines.
- 12 open slots and profile slot type 10 allow versatile connections and fixings without drilling
- 45mm modular dimension - fully compatible with the Bosch Rexroth aluminum structure system (Standard profile type)
- Ready-to-assemble machining: M16 in all core channels; D17V and LF in slots A/H, B/G; LF-S in slots D/K, E/J
- High bending stiffness: area moment of inertia Ix = 2138.3 cm⁴ (x-direction), Iy = 544.3 cm⁴ (y-direction)
- Recommended accessories: cover cap 90x90 in black or signal gray, also available with through-hole
Technical data
| Property | Value |
|---|---|
| Cross-section | 90x180 mm |
| Length [L] | 6070 mm |
| Delivery unit | 3 pieces (packaging unit in standard length) |
| Modular dimension | 45 mm |
| Profile slot | 10 |
| Open slots | 12 |
| Profile type | Standard |
| Material | Aluminum, anodized |
| Color | Natural |
| ESD | Yes |
| Profile machining | M16: all core channels; D17V, LF: slots A/H, B/G; LF-S: slots D/K, E/J |
| Profile surface [A] | 63.6 cm² |
| Mass [m] | 17.2 kg (per bar) |
| Weight (packaging unit) | 336.3 kg |
| Area moment of inertia Ix | 2138.3 cm⁴ |
| Area moment of inertia Iy | 544.3 cm⁴ |
| Moment of resistance Wx | 237.6 cm³ |
| Moment of resistance Wy | 121 cm³ |
| Torsional moment of inertia [It] | 429 cm⁴ |
| Moment of torsion resistance [Wt] | 64 cm³ |
| Manufacturer Nr. | 3842553617 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Sweden |
| Weight | 336.300000 |
| Lenght | 6070 mm |
| Note | Gemäß der aktuellen Preisstruktur werden für Bestellungen von Profilen mit einer Länge von 1500 mm zusätzliche Kosten in Höhe von 80,00 Euro berechnet. |
| HS-Code | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
Download
Write Your Own Review
Customers Who Bought This Item Also Bought
Strut Profile 45x90 M16, Anodized Aluminum, 6 Slots - Bosch Rexroth 3842990303
€15.42
Excl. 19% VAT , excl. Shipping Cost
Strut Profile 45x90L, Anodized Aluminum, ESD-Suitable, Variable Length - Bosch Rexroth 3842992432-1000
€42.74
Excl. 19% VAT , excl. Shipping Cost
Strut Profile 45x90L 2NVS, Anodized Aluminum, 1000 mm - Bosch Rexroth 3842993770-1000
€53.64
Excl. 19% VAT , excl. Shipping Cost
Strut Profile 15x22.5 Q&E, Anodized Aluminum, 1 Open Slot, L 50-3000 mm - Bosch Rexroth 3842993689
€2.82
Excl. 19% VAT , excl. Shipping Cost
Half-Round Profile 45x45 HR M12/M12, 1000 mm - Bosch Rexroth 3842992999-1000
€37.17
Excl. 19% VAT , excl. Shipping Cost
Strut Profile 45x30°, Anodized Aluminium, ESD-Suitable, 1000 mm - Bosch Rexroth 3842993013-1000
€35.18
Excl. 19% VAT , excl. Shipping Cost
Strut Profile 45x180, 6x6070 mm, Anodized Aluminum, ESD-Compatible - Bosch Rexroth 3842553616
€3,624.17
Excl. 19% VAT , excl. Shipping Cost
Related Products
Check items to add to the cart or
-
Cover Cap 90x90 mm, Slot 10, Signal Gray - Bosch Rexroth 3842548814€2.53Excl. 19% VAT , excl. Shipping Cost -
ESD Cover Cap 90x90 for Assembly Profile, Modular Dimension 45 mm - Bosch Rexroth 3842548761€2.77Excl. 19% VAT , excl. Shipping Cost -
Cover Cap 90x90 Signal Gray, PP, Modular Dimension 45 mm - Bosch Rexroth 3842548760€2.54Excl. 19% VAT , excl. Shipping Cost -

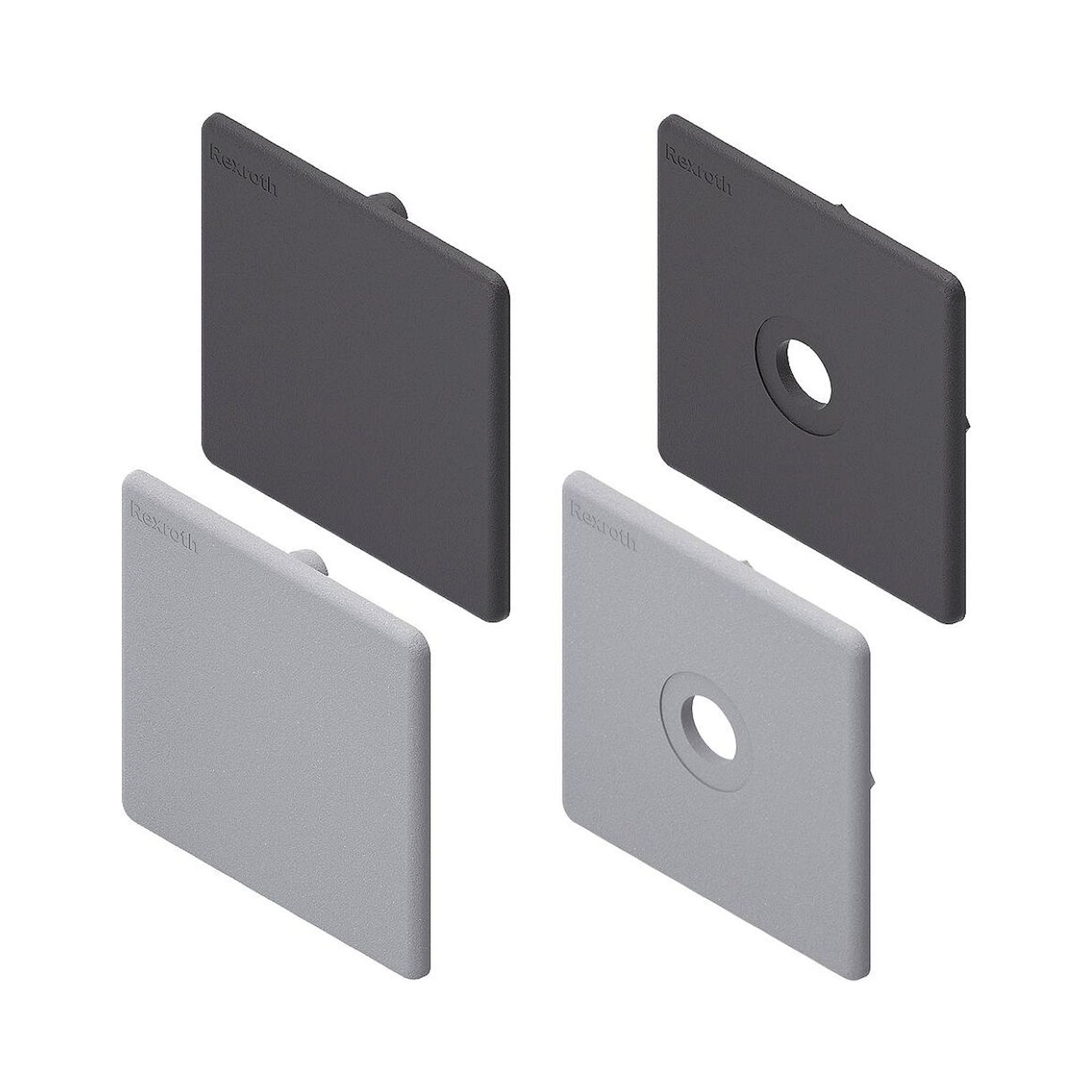

Cover Cap 90x90 with Hole D16.3 ESD-Suitable - Bosch Rexroth 3842548815€2.75Excl. 19% VAT , excl. Shipping Cost
