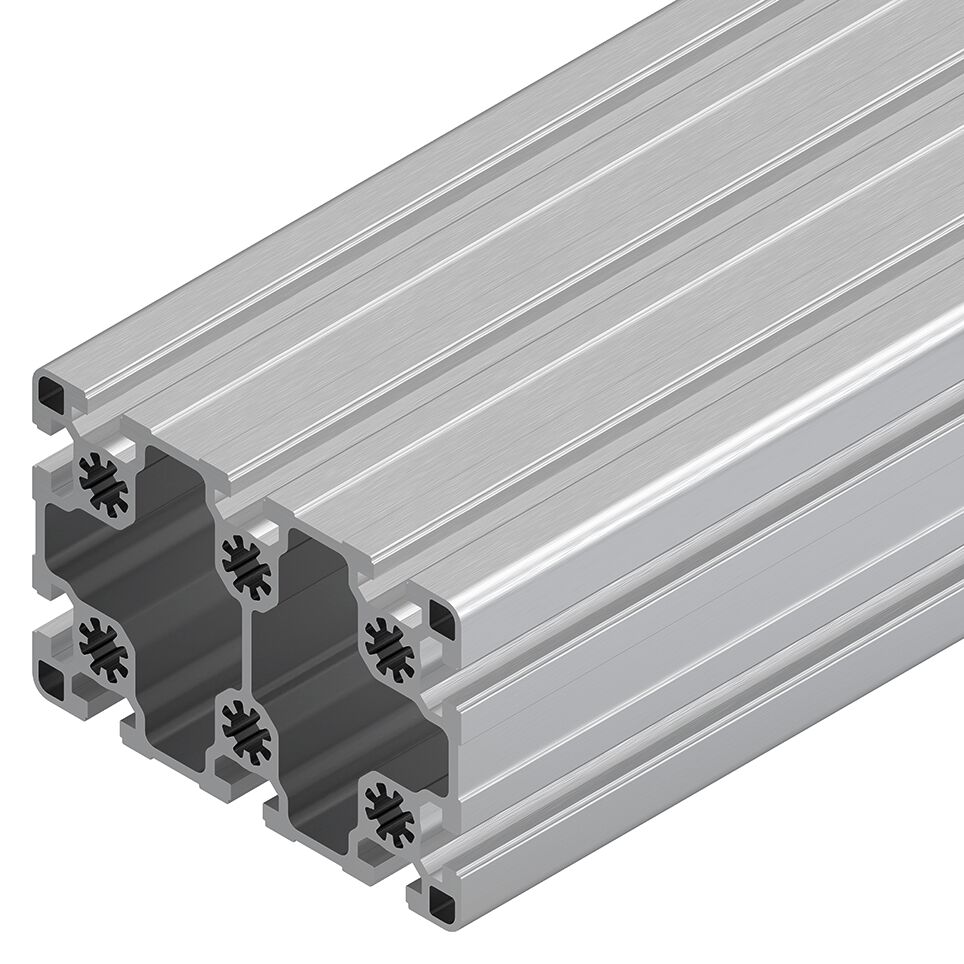

Strut profile 90x135L, 4xL=6070mm, Natural, Aluminum, anodized, Slot 10 - Bosch Rexroth 3842564805
The anodized aluminum strut profile 90x135L is the load-bearing element for frames, workstations and guarding in the Rexroth system with 10 mm slot. Key data: Dimensions 90x135; Length [L] 6070 mm.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The anodized aluminum strut profile 90x135L is the load-bearing element for frames, workstations and guarding in the Rexroth system with 10 mm slot. Key data: Dimensions 90x135; Length [L] 6070 mm; Profile slot 10.
Benefits
- Bending and torsion values for frame design

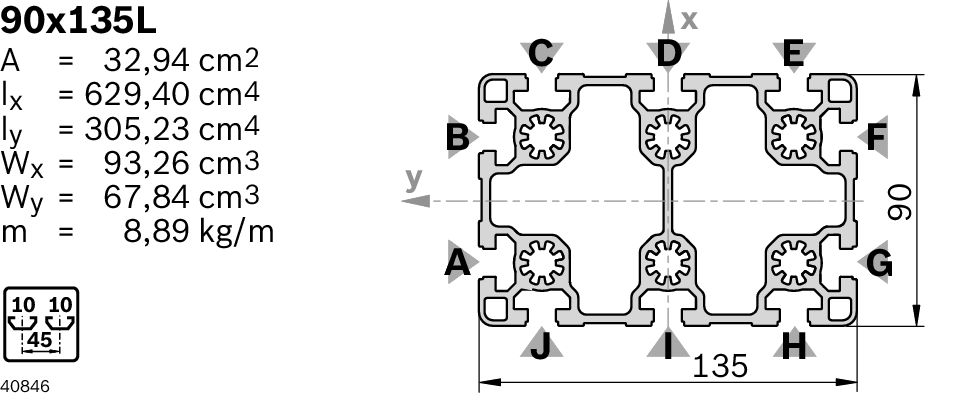

- Cross-section 90x135, slot 10
- Moments of inertia Ix 629.4 cm⁴, Iy 305.23 cm⁴
- Delivery length 6070 mm
- aluminum, anodized, Natural
- Genuine Bosch Rexroth part, clearly reorderable via material number 3842564805
Applications
Assembly and conveyor technology, workstation systems, machine frames, guarding and fixture construction.
Technical data
| Manufacturer | Bosch Rexroth |
|---|---|
| Manufacturer part number | 3842564805 |
| Designation | Strut profile 90x135L |
| Color | Natural |
| Area moment of inertia in x-direction [lx] | 629.4 cm⁴ |
| Material | aluminum, anodized |
| Modular dimension | 45 mm |
| Recommended accessories | Cover cap 90x90, black ESD |
| Profile surface [A] | 32.94 cm² |
| Open slots | 10 |
| Torsional moment of inertia [It] | 163.7 cm⁴ |
| Mass [m] | 8.89 kg |
| Dimensions | 90x135 |
| Length [L] | 6070 mm |
| Profile slot | 10 |
| Profile type | Standard |
| Moment of torsion resistance [Wt] | 39.6 cm³ |
| Condition on delivery | Packaging unit in standard length |
| Moment of resistance in the x-direction [Wx] | 93.26 cm³ |
| Moment of resistance in the y-direction [Wy] | 67.84 cm³ |
| Area moment of inertia in y-direction [ly] | 305.23 cm⁴ |
| Cross-section | 90x135L |
| Weight | 219.6 kg |
| Manufacturer Nr. | 3842564805 |
| HS-Code | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Sweden |
| Colour | Natural |
