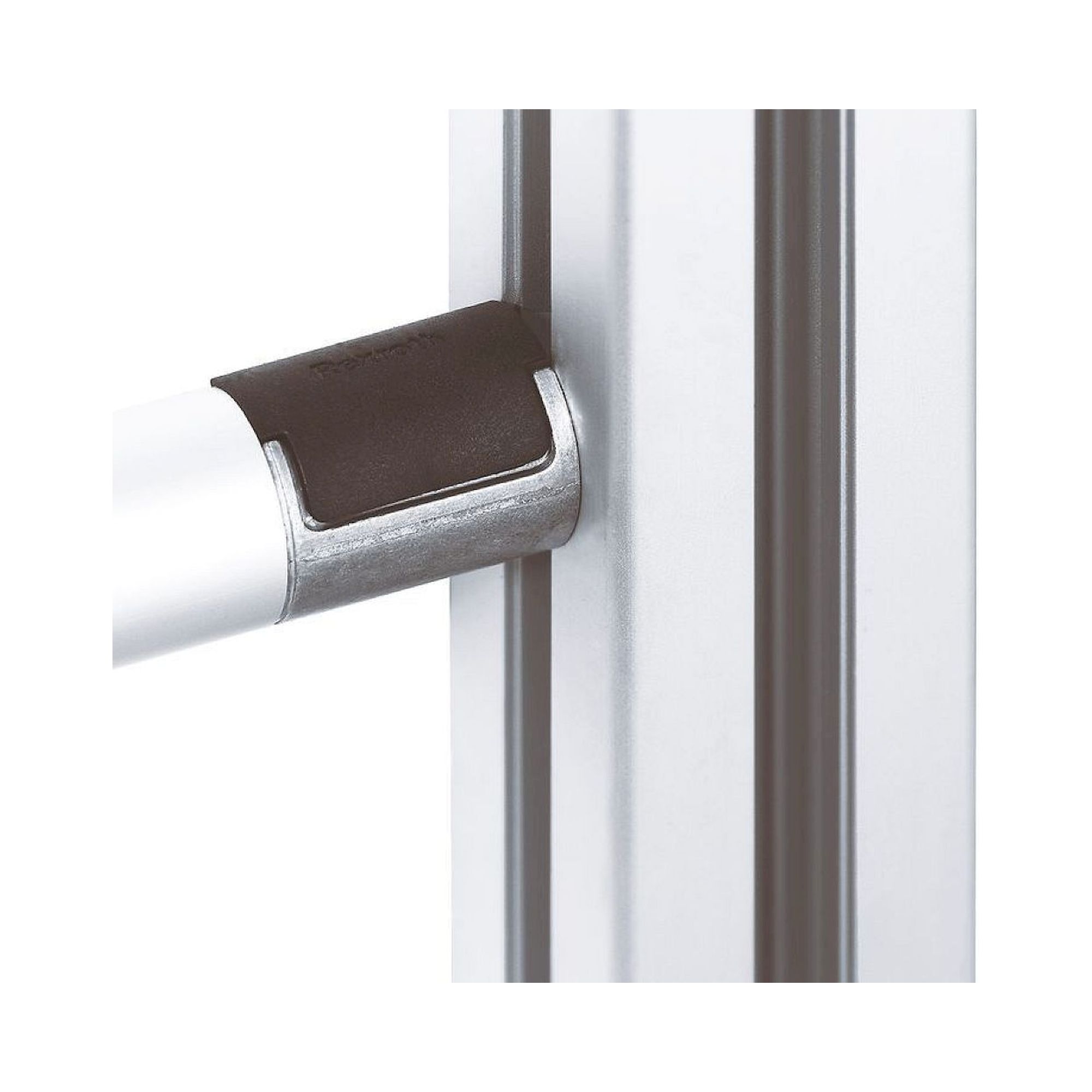

Strut Profile D28, Variable Length 50-6070 mm, Anodized Aluminum - Bosch Rexroth 3842993317-1000

Name: Strut Profile D28, Variable Length 50-6070 mm, Anodized Aluminum - Bosch Rexroth 3842993317-1000
Brand: Bosch Rexroth
SKU: BRR-3842993317-1000
Price: 17.77 EUR
Availability: InStock

Bosch Rexroth ✓ Original product Brand new Made in Germany

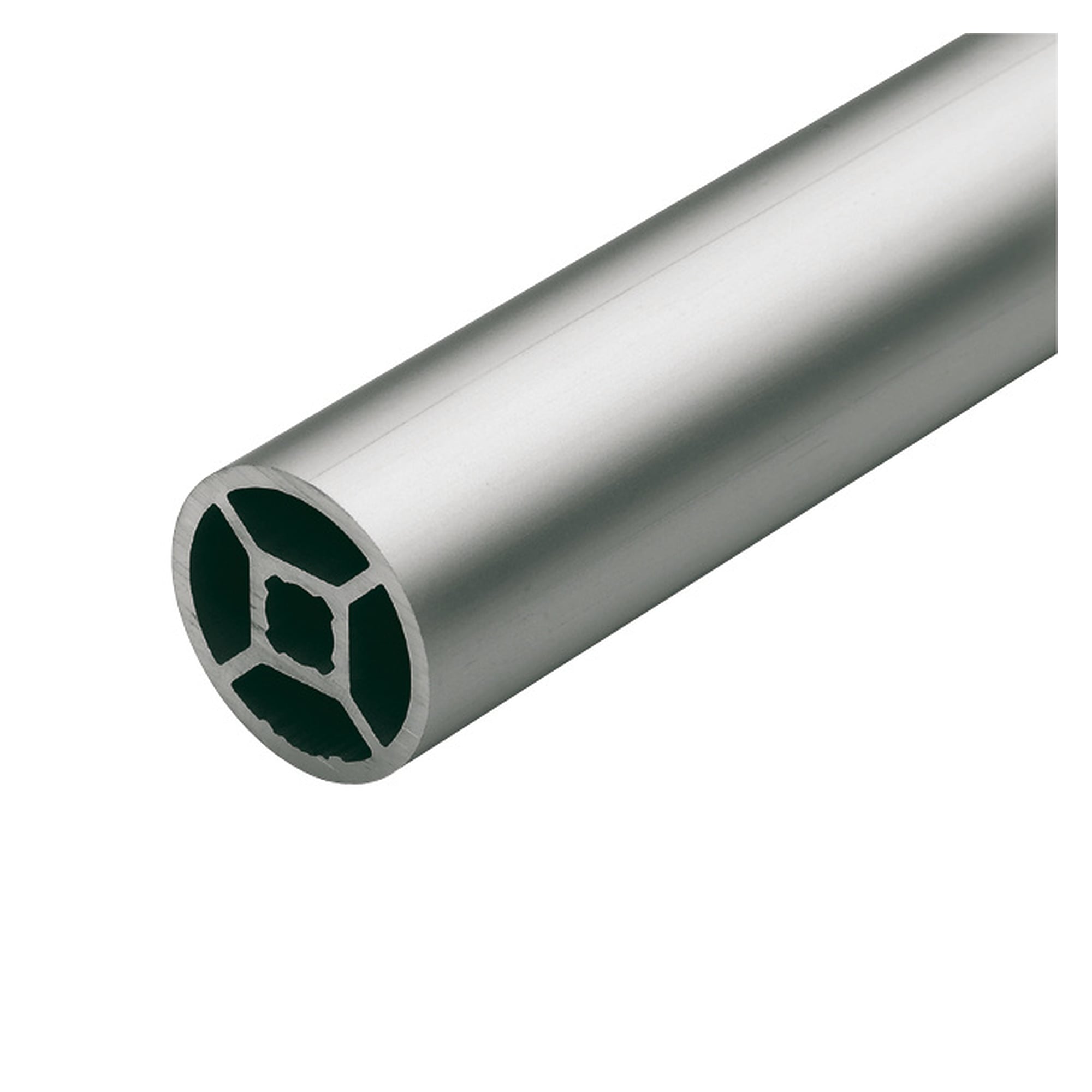

Extruded anodized aluminum strut profile D28 for manual assembly systems and workstation structures. Symmetric area moments of inertia (Ix = Iy = 1.5 cm⁴), supplied cut to variable length from 50 mm to 6070 mm. Compatible with Lettering Clip accessory.

Net

€17.77

excl. VAT

Item BRR-3842993317-1000

Manufacturer no. 3842993317-1000

Question about this item

Datasheet (PDF) 11 documents, all under Downloads

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

The Bosch Rexroth Strut Profile D28 is an anodized aluminum profile for building manual production systems, workstations, and lean-assembly structures. Supplied cut to the required length, it eliminates fixed-length waste and simplifies adaptation to individual workstation dimensions.

Variable cut length: 50 mm to 6070 mm - ordered to exact length, ready for direct installation.
Symmetric cross-section: Ix = Iy = 1.5 cm⁴ and Wx = Wy = 1.1 cm³ deliver equal bending stiffness in both principal axes.
Low linear mass: 0.7 kg/m - keeps overall workstation weight low without compromising structural rigidity.
Anodized surface: Corrosion-resistant finish suited to industrial assembly environments.
Lettering Clip compatible: Recommended accessory enables clear, tool-free labeling directly on the profile.

Technical data

Property	Value
Material	Aluminum, anodized
Condition on delivery	Variable length
Length min [L min]	50 mm
Length max [L max]	6070 mm
Profile surface [A]	2.4 cm²
Mass [m]	0.7 kg/m
Area moment of inertia X [Ix]	1.5 cm⁴
Area moment of inertia Y [Iy]	1.5 cm⁴
Moment of resistance X [Wx]	1.1 cm³
Moment of resistance Y [Wy]	1.1 cm³
Delivery unit	1
Recommended accessories	Lettering Clip
Weight	0.01 kg
Manufacturer	Bosch Rexroth
Manufacturer Nr.	3842993317-1000
HS-Code	76169990
GPSR manufacturer information	Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Condition of article	New
Article authenticity	Original product
Country of Manufacture	Germany
ESD version	TEC
