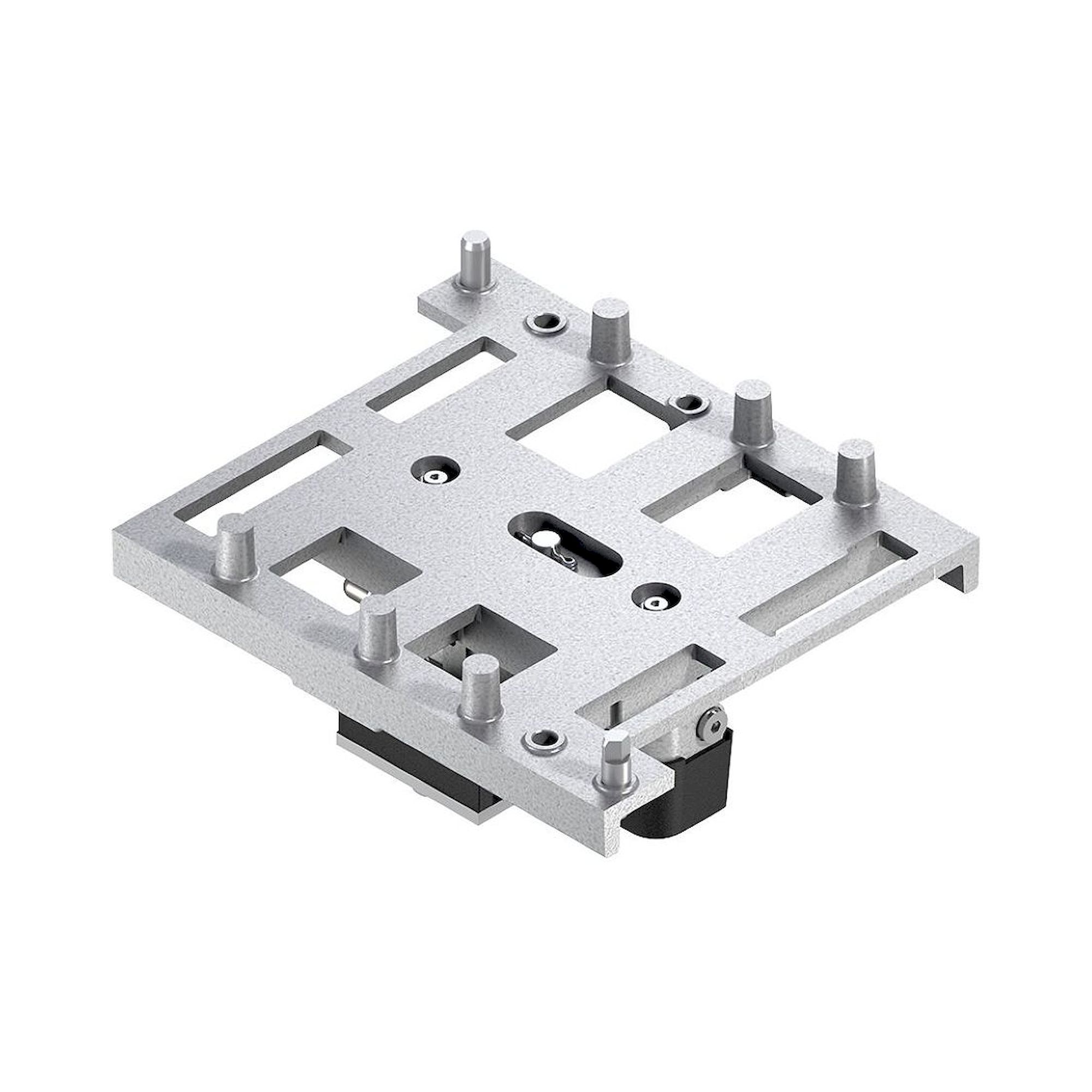

The PE 2 positioning unit lifts workpiece pallets above the conveyor medium in the TS 2plus transfer system and positions them accurately for processing. The ESD version suits handling of electrostatically sensitive components. Sized for a 240 mm track width and 400 mm length in the direction of transport.
Positioning Unit PE 2, ESD, 400 x 240 mm - Bosch Rexroth 3842504713
BOSCH REXROTH Original product
Net price (excl. VAT)
€1,031.03
Item BRR-3842504713
Manufacturer no. 3842504713
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842504713
Country of originGermany
Customs tariff number84313900
ConditionNew
Article
BRR-3842504713
Frequently Bought Together
- This Item: €1,031.03
- Housing Element for HD 2/H, 640/480, 180° - Bosch Rexroth 3842552617 €761.91
- Housing Element HD 2/H, 480 x 480 mm, 90° - Bosch Rexroth 3842552596 €761.91
Total price
The PE 2 positioning unit lifts workpiece pallets above the conveyor medium in the TS 2plus transfer system and positions them accurately for assembly and processing stations. The ESD-compliant version is designed for handling electrostatically sensitive components.
- Accurate positioning with a repetition accuracy of plus/minus 0.1 mm
- ESD-compliant for ESD-sensitive workpieces
- Pneumatic lift of the workpiece pallet above the conveyor medium
- Supplied fully assembled, including fastening material
Technical data
| ESD | yes |
| Thread size | G1/8" |
| Track width in direction of transport (b) | 240 mm |
| Length in direction of transport (lT) | 400 mm |
| Lift of WT over conveyor medium (h0) | 2.5 mm |
| Workpiece pallet total weight (mG) | 30 kg |
| Repetition accuracy | plus/minus 0.1 mm |
| Permissible vertical process force | 300 N |
| Required compressed air connection (pmin) | 4 bar |
| Required compressed air connection (pmax) | 6 bar |
| Scope of delivery | incl. fastening material |
| Delivery information | fully assembled |
| Required accessories | Stop gate VE 2/... |
| Recommended accessories | Position sensing kit for PE 2 |
| Weight | 3.96 kg |
| ESD version | TEC |
|---|---|
| Manufacturer Nr. | 3842504713 |
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 3.960000 |
| HS-Code | 84313900 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
