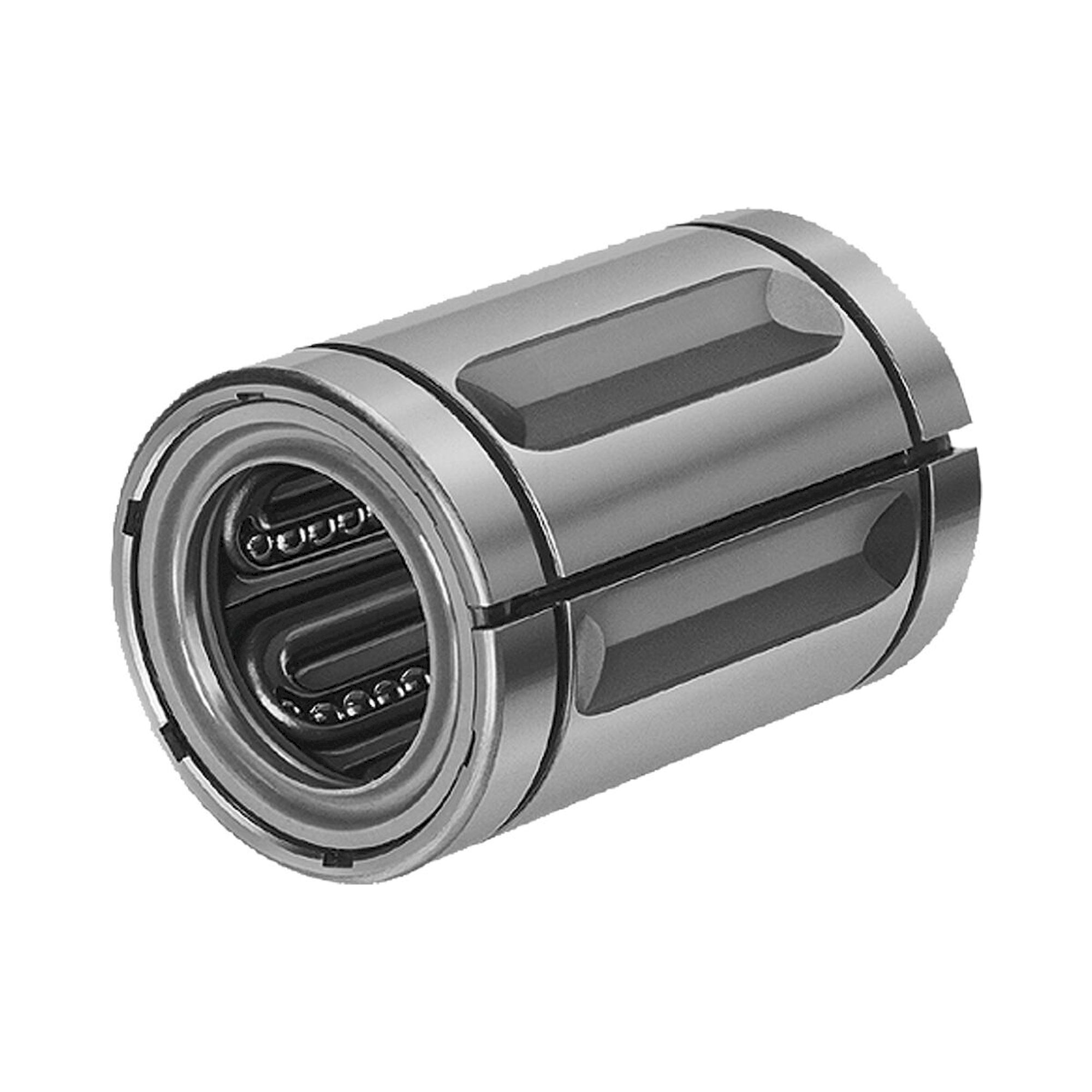

Super linear bushing KBB-50-DD for 50 mm shaft - Bosch Rexroth R067225040
Super linear bushing KBB-50-DD by Bosch Rexroth for shafts of 50 mm diameter. Dynamic load capacity 14730 N, static load capacity 8280 N. 2 integrated wiper seals, not lubricated, weight 0.63 kg.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Building a linear guide on hardened precision shafts calls for a bearing with a defined load capacity and low friction. The Super linear bushing KBB-50-DD runs on shafts of 50 mm diameter and reaches a dynamic load capacity of 14730 N with a static load capacity of 8280 N. Weight: 0.63 kg.
Benefits
- Load capacity: dynamic 12060 N to 14730 N, static 6470 N to 8280 N, depending on load direction relative to the ball rows
- Dynamics: up to 3 m/s, acceleration up to 150 m/s²
- Sealing and lubrication: 2 integrated wiper seals, not lubricated
- Design: Closed, series Super B (no self-alignment feature)
- Clearance: Radial clearance shaft/bore h6/H7 +50 µm
- Installation dimensions: outer diameter D = 75 mm, length 100 mm
Technical data
| Manufacturer | Bosch Rexroth |
|---|---|
| Manufacturer part number | R067225040 |
| Type designation | KBB-50-DD |
| Friction coefficient μ | 0.001 ... 0.0025 |
| Radial clearance shaft/bore h6/H7 | +50 µm |
| Lubrication | Not lubricated |
| Maximum permissible linear speed vmax | 3 m/s |
| Length of linear bushing | 100 mm |
| Radial clearance shaft h6/bore K7 | +29 µm |
| Series | Super B (no self-alignment feature) |
| Maximum dynamic load capacity Cmax | 14730 N |
| Rows of balls | 6 |
| Breakaway force | 10 N |
| Maximum acceleration rate amax | 150 m/s² |
| Outer diameter D | 75 mm |
| Minimum static load capacity C0min | 6470 N |
| Radial clearance shaft h6/bore M7 | +20 µm |
| Shaft diameter d | 50 mm |
| Minimum dynamic load capacity Cmin | 12060 N |
| Maximum static load capacity C0max | 8280 N |
| Format of linear bushings | Closed |
| Version | Normal |
| Friction force FR | 4 N |
| Seal | 2 integrated wiper seals |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Weight | 0.63 kg |
| Manufacturer Nr. | R067225040 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
