Ball bushing guides
Linear guides
Bosch Rexroth ball bushing guides (Eline system) enable precise linear guidance on cylindrical precision shafts. The system consists of ball bushings, linear sets (ball bushing with housing), precision steel shafts with and without shaft supports, and associated accessories. The modular Eline concept allows combination of shaft, bushing, and housing from a single supplier range with matched fits and tolerances.

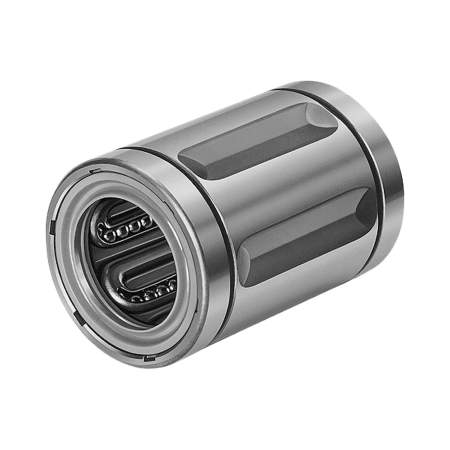

Ball bushingsCompact-KB KBC series, shaft diameter 10 mm, DD/D versions
Linear sets with ball bushingsEline LSAC sets, ø 12-20 mm, RT-G and NR-G versions
Precision steel shafts with supportsWU series, 600 mm length, mounting brackets AF/AF1/AF2

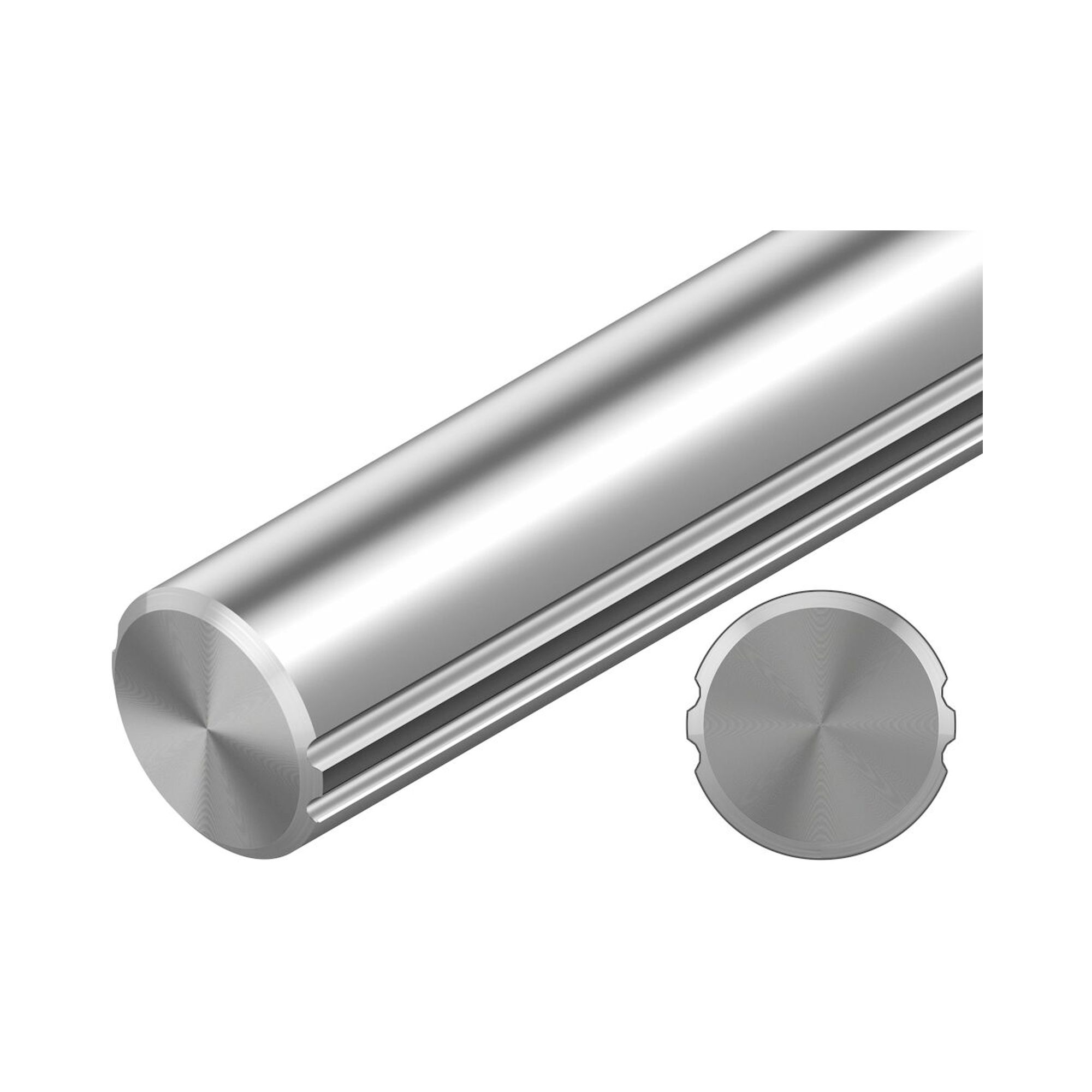

Precision steel shaftsHollow shafts WOD4, diameter 4-16 mm, length 200-600 mm

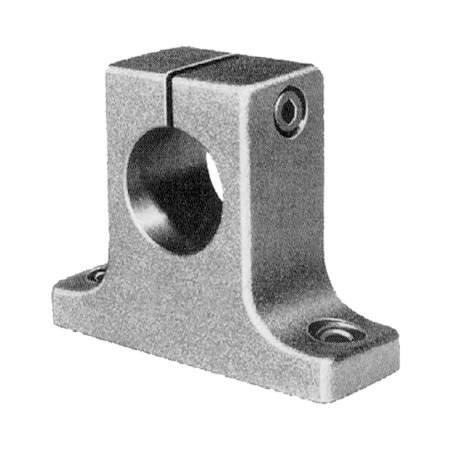

Accessories for ball bushing guidesShaft end pieces, mounting brackets and assembly accessories
| Component | Series | Dimension |
|---|---|---|
| Ball bushing | Compact-KB KBC | ø 10 mm (KBC-10, -10-D, -10-DD, -10-NR) |
| Linear set | Eline LSAC | 12, 16, 20 mm, RT-G and NR-G versions |
| Steel shaft with support | WU12-AF/-AF1/-AF2 | ø 12 mm, length 600 mm |
| Hollow shaft | WOD4 | ø 4, 6, 8, 10, 16 mm, length 200-600 mm |
Typical applications: Simple linear motion axes in handling modules and small automation systems, print heads and scanning units in peripheral devices, traverse units in dispensing and filling machines, feed axes in laser cutting equipment with small to medium loads, and repair and replacement of ball bushings and shafts in existing machine systems.
