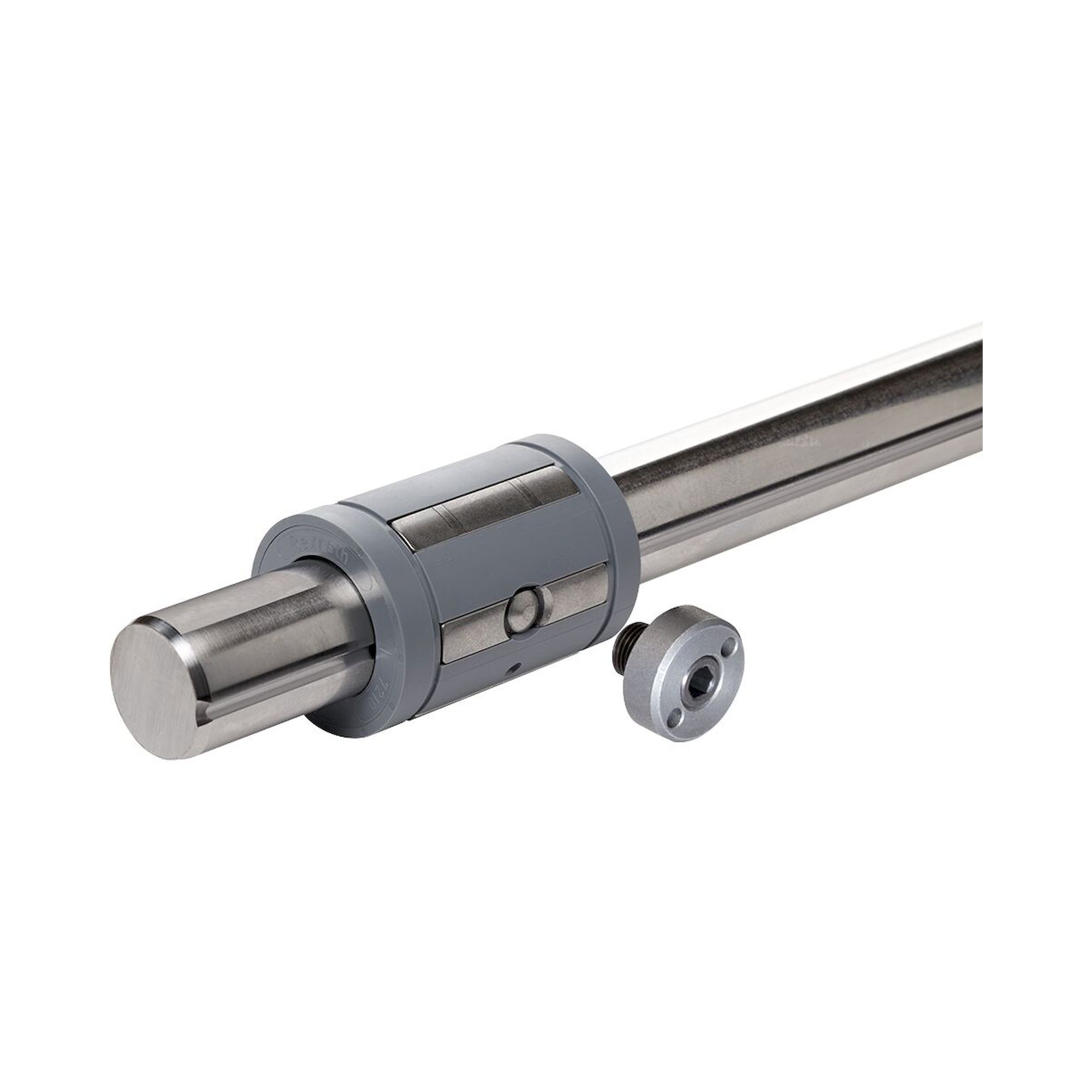

Torque-resistant linear bushing (standard) KBDR1-40-WV-2000 for 40 mm shaft - Bosch Rexroth R069604088

Name: Torque-resistant linear bushing (standard) KBDR1-40-WV-2000 for 40 mm shaft - Bosch Rexroth R069604088
Brand: Bosch Rexroth
SKU: BRR-R069604088
Price: 819.46 EUR
Availability: InStock

Bosch Rexroth ✓ Original product Brand new Made in Germany

Torque-resistant linear bushing (standard) KBDR1-40-WV-2000 by Bosch Rexroth for shafts of 40 mm diameter. Dynamic load capacity 6320 N, static load capacity 4350 N, torque up to 53 Nm. Without wiper seals, weight 10.19 kg.

Net

€819.46

excl. VAT

Item BRR-R069604088

Manufacturer no. R069604088

Question about this item

Datasheet (PDF) User manual 5 documents, all under Downloads

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

Building a linear guide on hardened precision shafts calls for a bearing with a defined load capacity and low friction. The torque-resistant linear bushing KBDR1-40-WV-2000 runs on shafts of 40 mm diameter and reaches a dynamic load capacity of 6320 N with a static load capacity of 4350 N. Through the ball guide grooves in the shaft it also transmits a dynamic torque of up to 53 Nm. Weight: 10.19 kg.

Benefits

Load capacity: dynamic load capacity C = 6320 N, static load capacity C0 = 4350 N
Torque transmission: dynamic torsional moment load capacity Mt = 53 Nm
Dynamics: up to 3 m/s, acceleration up to 150 m/s²
Sealing and lubrication: without wiper seals
Design: Closed, series Torque
Installation dimensions: outer diameter D = 62 mm, length 80 mm

Technical data

Manufacturer	Bosch Rexroth
Manufacturer part number	R069604088
Type designation	KBDR1-40-WV-2000
Maximum permissible linear speed vmax	3 m/s
Mass m (kg/m)	9.8 kg/m
Length of linear bushing	80 mm
Dynamic torsional moment load capacity Mt	53 Nm
Static load capacity C0	4350 N
Series	Torque
Rows of balls	6
Maximum acceleration rate amax	150 m/s²
Outer diameter D	62 mm
Shaft diameter d	40 mm
Format of linear bushings	Closed
Dynamic load capacity C	6320 N
Version	Normal
Friction force FR	8 N
Seal	Without wiper seals
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Weight	10.19 kg
Manufacturer Nr.	R069604088
GPSR manufacturer information	Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Condition of article	New
Article authenticity	Original product
Country of Manufacture	Germany
