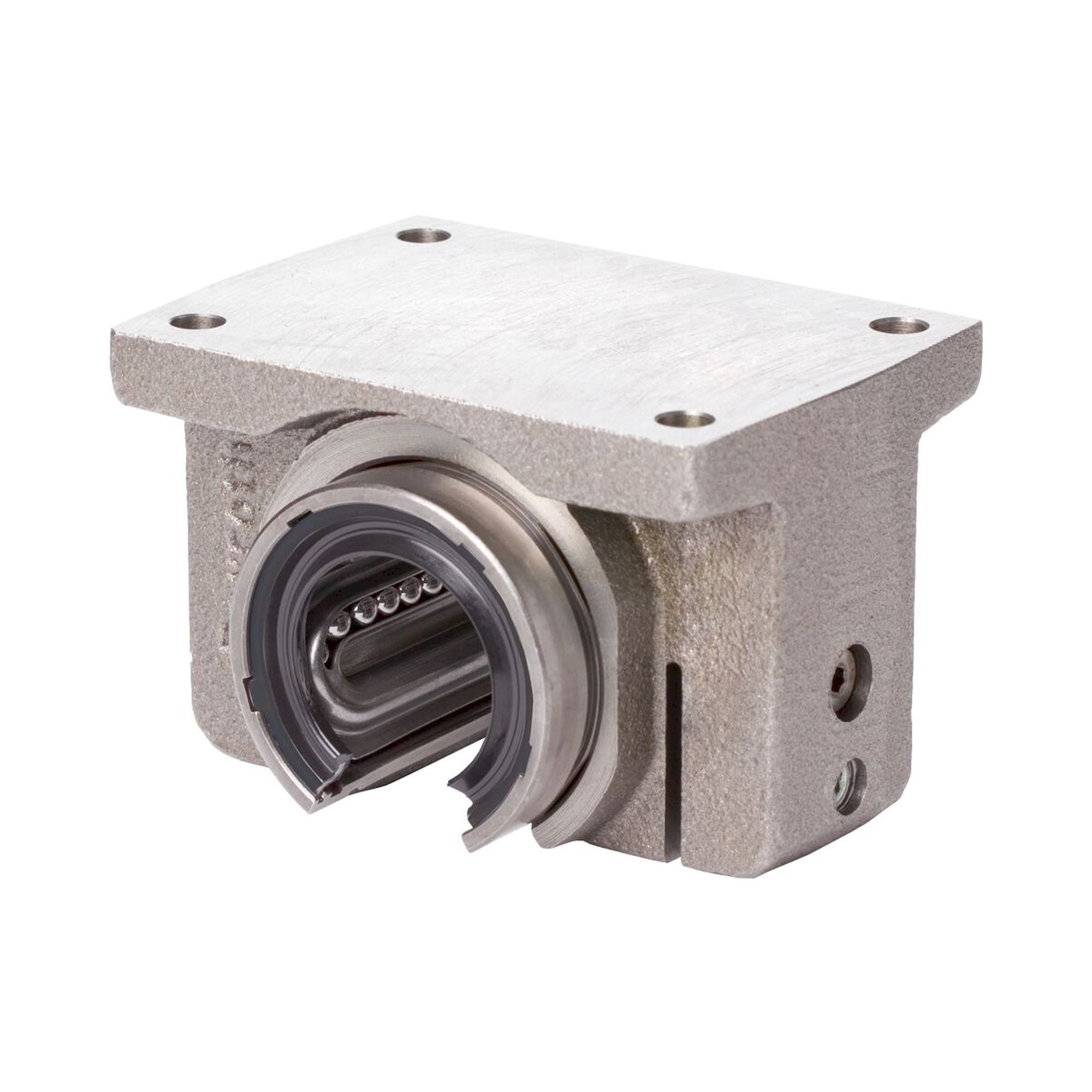

Linear set LSSDR2-30-WV-2000 - Bosch Rexroth R109653088
Linear set LSSDR2-30-WV-2000 by Bosch Rexroth, material number R109653088. The static load capacity is 2790 N.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Linear set LSSDR2-30-WV-2000 by Bosch Rexroth, material number R109653088. The static load capacity is 2790 N. Permissible values are up to 3 m/s travel speed and 150 m/s² acceleration. The weight is 0.1 kg.
Technical data
| Maximum permissible linear speed vmax | 3 m/s |
|---|---|
| Mass m (kg/m) | 5.5 kg/m |
| Type | Linear set |
| Shaft diameter d | 30 mm |
| Dynamic torsional moment load capacity Mt | 37 Nm |
| Static load capacity C0 | 2790 N |
| Linear guide type | Linear bushing and shaft |
| Dynamic load capacity C | 3680 N |
| Series | Torque |
| Permissible ambient temperature (min) | <prefix>-</prefix>10<suffix></suffix> °C |
| Maximum acceleration rate amax | 150 m/s² |
| Permissible ambient temperature (max) | <prefix>+</prefix>80<suffix></suffix> °C |
| Outer diameter D | 47 mm |
| Weight | 0.1 kg |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Manufacturer | Bosch Rexroth |
| Manufacturer Nr. | R109653088 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
