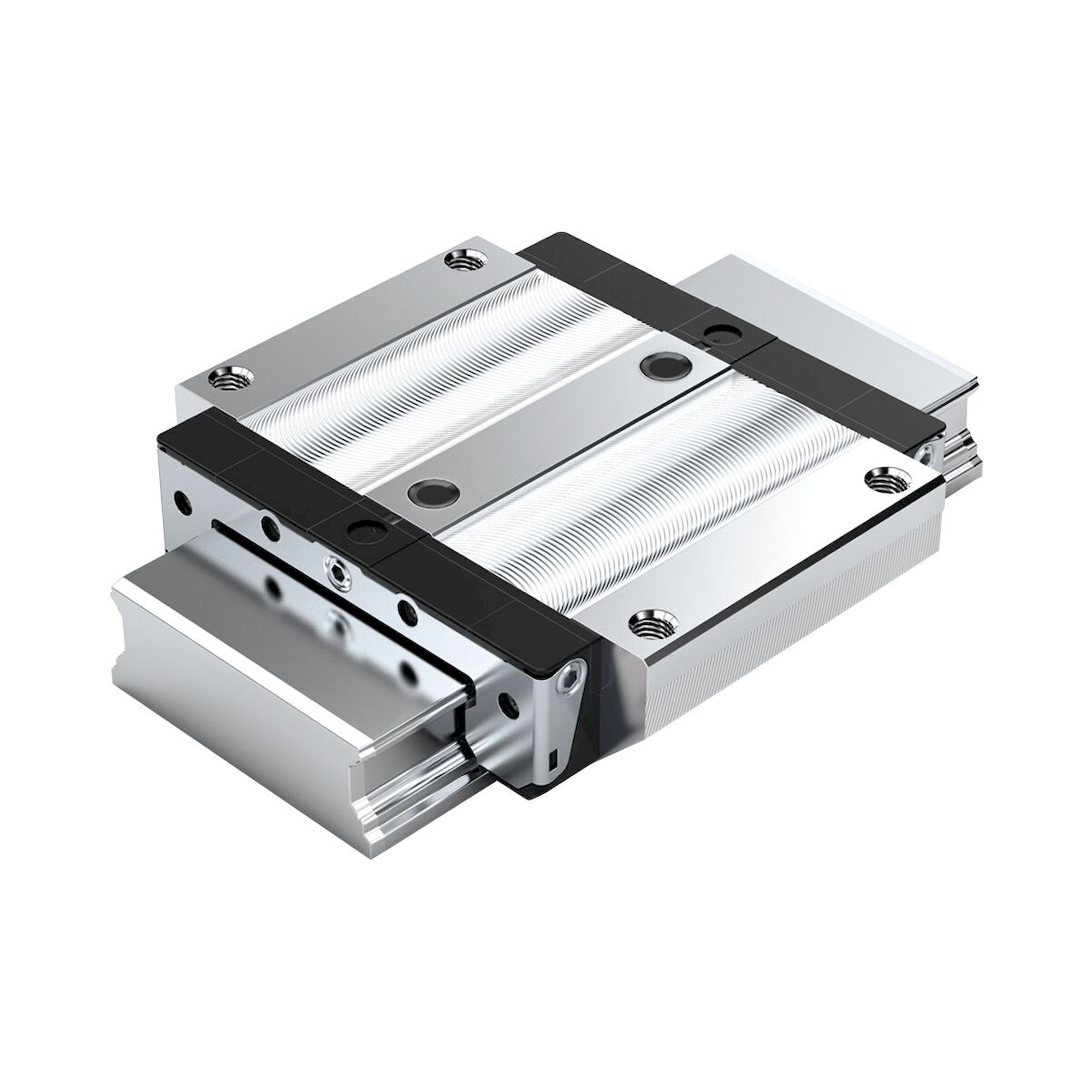

Bosch Rexroth R162272320. Kugelwagen CS KWD-030-SNS-C2-H-1

Name: Bosch Rexroth R162272320. Kugelwagen CS KWD-030-SNS-C2-H-1
Brand: Bosch Rexroth
SKU: BRR-R162272320
Price: 99.34 EUR
Availability: InStock

Bosch Rexroth ✓ Original product Brand new Made in Germany

Net

€99.34

excl. VAT

Item BRR-R162272320

Manufacturer no. R162272320

Question about this item

Datasheet (PDF) User manual 6 documents, all under Downloads

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

Kugelwagen CS KWD-030-SNS-C2-H-1 by Bosch Rexroth, material number R162272320. Size 30, material Carbon steel, accuracy class H - Highly accurate, preload class C2 - Medium preload, seal SS - Standard seal and lubrication Pre-lubricated, preserved. The dynamic load capacity is 36500 N. The static load capacity is 48100 N. Permissible values are up to 5 m/s travel speed and 500 m/s² acceleration. The weight is 0.85 kg.

Technical data

Friction coefficient μ	0.002 ... 0.003
Height runner block with guide rail	42 mm
Pitch T guide rail	80 mm
Ball chain	Without ball chain (standard)
Nominal size	30
Preload class	C2 - Medium preload
Static load capacity C0	48100 N
Height of runner block	35.35 mm
Format	SNS - slimline, normal, standard height
Self-aligning for compensation of misalignments	Without self-alignment
Length of runner block	97.7 mm
Runner block or guide rail	Runner block
Width of runner block	60 mm
Static torsional moment load capacity Mt0	830 Nm
Dynamic torsional moment load capacity Mt100	630 Nm
Static longitudinal moment load capacity ML0	580 Nm
Linear guide type	Ball rail system
Version	Ball rail system
Accuracy class	H - Highly accurate
Dimension B1	67.4 mm
Friction coefficient μ min.	0.002
Model	High-precision ball runner block
Lubrication	Pre-lubricated, preserved
Maximum permissible linear speed vmax	5 m/s
Friction coefficient μ max.	0.003
Dynamic load capacity C50	46000 N
Material (profiled rail systems)	Carbon steel
Preload force	2540 N
Maximum acceleration rate amax	500 m/s²
Dynamic load capacity C100	36500 N
Dynamic longitudinal moment load capacity ML50	550 Nm
Dynamic longitudinal moment load capacity ML100	440 Nm
Dynamic torsional moment load capacity Mt50	790 Nm
Dimension T1 min	16 mm
Seal	SS - Standard seal
Permissible ambient temperature (min)	<prefix>-</prefix>10<suffix></suffix> °C
Permissible ambient temperature (max)	<prefix>+</prefix>80<suffix></suffix> °C
Weight	0.85 kg
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Weight	0.100000
Manufacturer	Bosch Rexroth
Manufacturer Nr.	R162272320
GPSR manufacturer information	Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Condition of article	New
Article authenticity	Original product
Country of Manufacture	Germany
Norm	DIN ISO 14728-1
Preload	C2
Accuracy class	H - High
