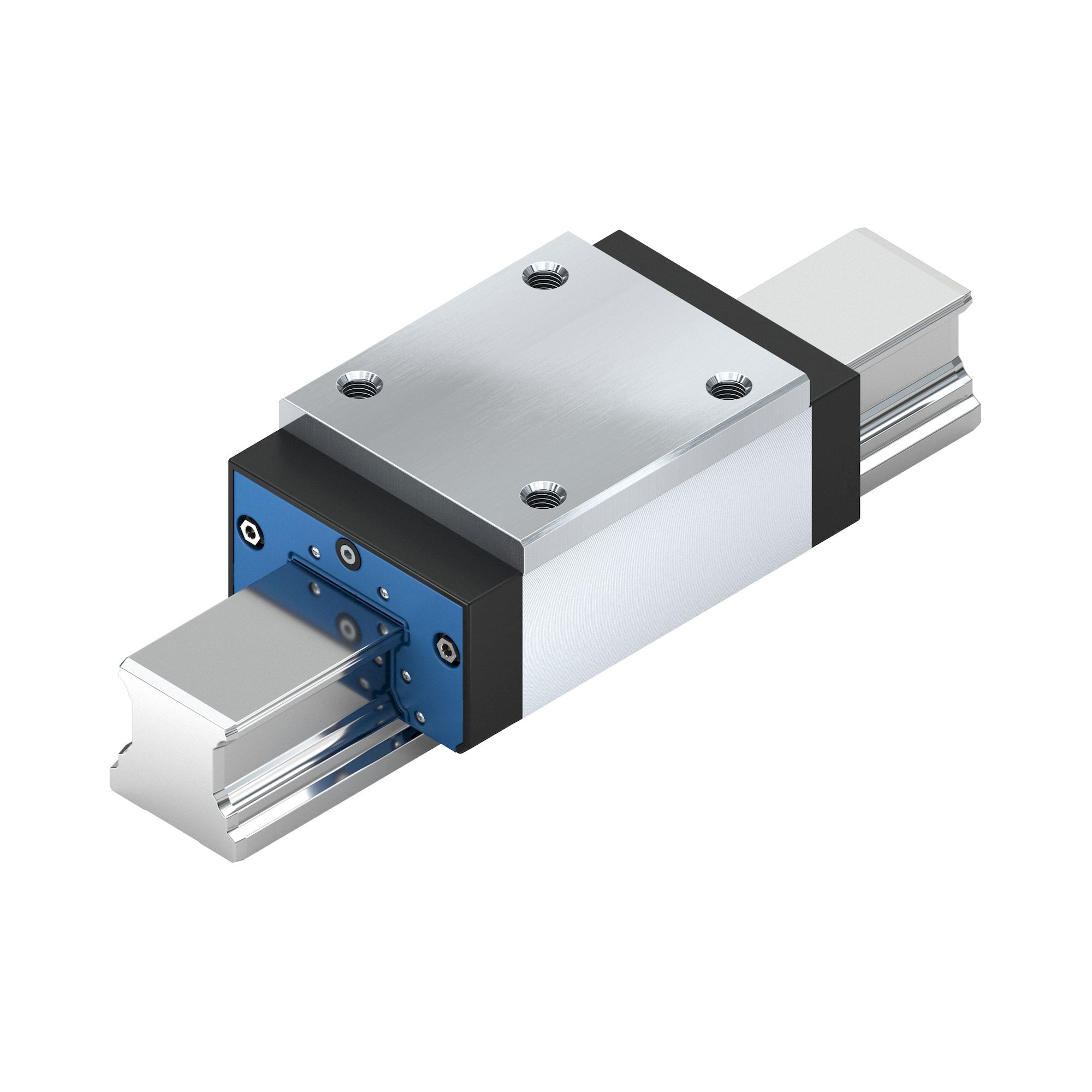

Bosch Rexroth R165152390. Kugelwagen HS KWC-055-FNS-C2-H-2
Kugelwagen HS KWC-055-FNS-C2-H-2 by Bosch Rexroth, material number R165152390. Size 55, material Carbon steel, accuracy class H - Highly accurate, preload class C2 - Medium preload, seal SS - Standard seal and lubrication Preserved.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Kugelwagen HS KWC-055-FNS-C2-H-2 by Bosch Rexroth, material number R165152390. Size 55, material Carbon steel, accuracy class H - Highly accurate, preload class C2 - Medium preload, seal SS - Standard seal and lubrication Preserved. The dynamic load capacity is 76300 N. The static load capacity is 122000 N. Permissible values are up to 7.5 m/s travel speed and 250 m/s² acceleration. The weight is 4.95 kg.
Technical data
| Friction coefficient μ | 0.002 ... 0.003 |
|---|---|
| Height runner block with guide rail | 70 mm |
| Ball chain | Without ball chain (standard) |
| Lubrication | Preserved |
| Maximum permissible linear speed vmax | 7.5 m/s |
| Friction coefficient μ max. | 0.003 |
| Nominal size | 55 |
| Preload class | C2 - Medium preload |
| Static load capacity C0 | 122000 N |
| Dynamic load capacity C50 | 96100 N |
| Material (profiled rail systems) | Carbon steel |
| Dimension T | 120 mm |
| Height of runner block | 57 mm |
| Format | FNS - flange, normal, standard height |
| Self-aligning for compensation of misalignments | Without self-alignment |
| Maximum acceleration rate amax | 250 m/s² |
| Dynamic load capacity C100 | 76300 N |
| Dynamic longitudinal moment load capacity ML50 | 2040 Nm |
| Dynamic longitudinal moment load capacity ML100 | 1620 Nm |
| Dynamic torsional moment load capacity Mt50 | 3050 Nm |
| Length of runner block | 159 mm |
| Runner block or guide rail | Runner block |
| Width of runner block | 140 mm |
| Static torsional moment load capacity Mt0 | 3860 Nm |
| Dynamic torsional moment load capacity Mt100 | 2420 Nm |
| Static longitudinal moment load capacity ML0 | 2580 Nm |
| Linear guide type | Ball rail system |
| Version | Ball rail system |
| Accuracy class | H - Highly accurate |
| Dimension B1 | 115.5 mm |
| Seal | SS - Standard seal |
| Friction coefficient μ min. | 0.002 |
| Model | High-speed ball runner block |
| Permissible ambient temperature (min) | <prefix>-</prefix>10<suffix></suffix> °C |
| Permissible ambient temperature (max) | <prefix>+</prefix>80<suffix></suffix> °C |
| Weight | 4.95 kg |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Manufacturer | Bosch Rexroth |
| Manufacturer Nr. | R165152390 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Norm | DIN ISO 14728-1 |
| Preload | C2 |
