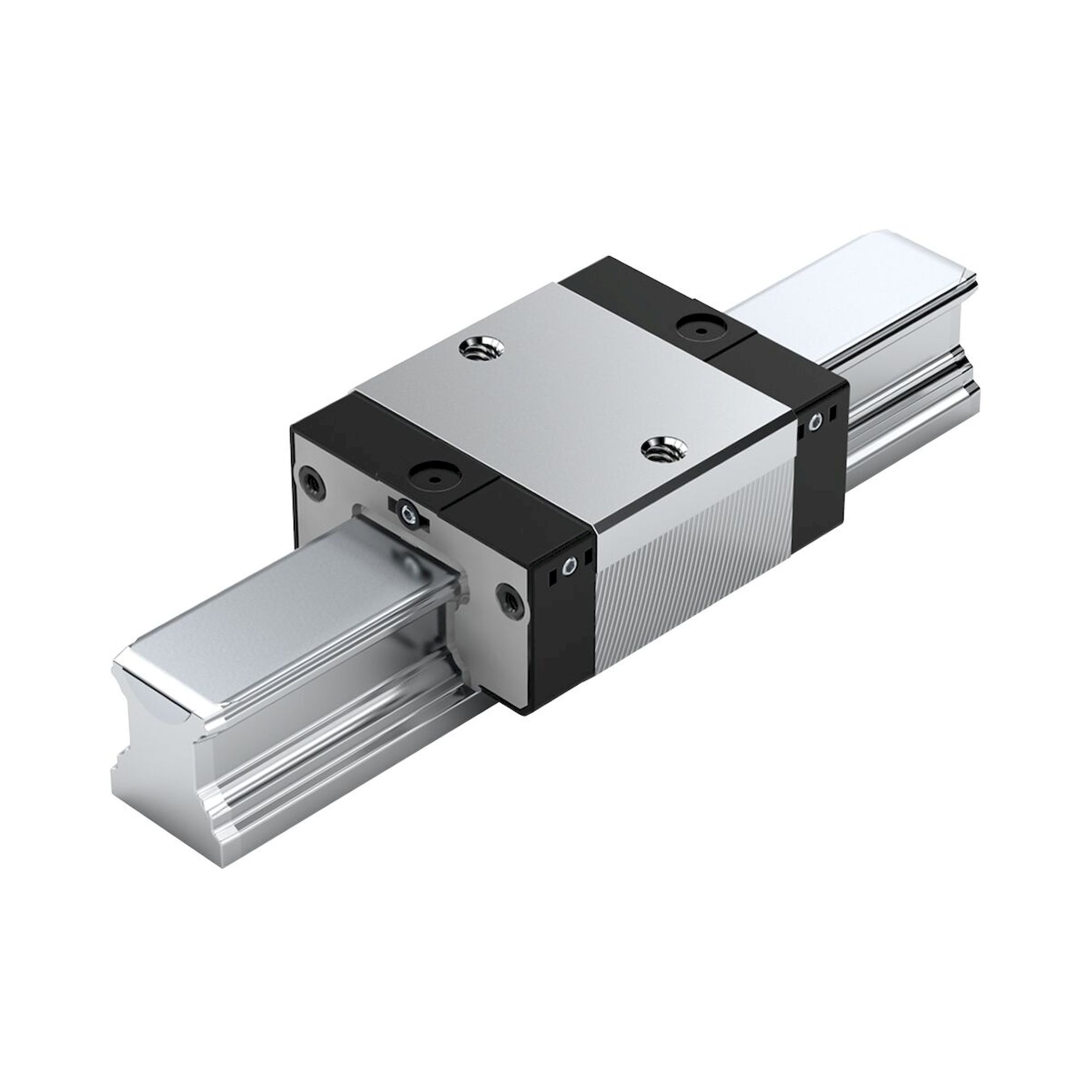

Bosch Rexroth R165312920. Kugelwagen CS KWD-015-FLS-C2-U-1
Kugelwagen CS KWD-015-FLS-C2-U-1 by Bosch Rexroth, material number R165312920. Size 15, material Carbon steel, accuracy class UP - Ultra precise, preload class C2 - Medium preload, seal SS - Standard seal and lubrication Pre-lubricated, preserved.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Kugelwagen CS KWD-015-FLS-C2-U-1 by Bosch Rexroth, material number R165312920. Size 15, material Carbon steel, accuracy class UP - Ultra precise, preload class C2 - Medium preload, seal SS - Standard seal and lubrication Pre-lubricated, preserved. The dynamic load capacity is 12800 N. The static load capacity is 18400 N. Permissible values are up to 5 m/s travel speed and 500 m/s² acceleration. The weight is 0.3 kg.
Technical data
| Friction coefficient μ | 0.002 ... 0.003 |
|---|---|
| Height runner block with guide rail | 24 mm |
| Pitch T guide rail | 60 mm |
| Ball chain | Without ball chain (standard) |
| Nominal size | 15 |
| Preload class | C2 - Medium preload |
| Static load capacity C0 | 18400 N |
| Height of runner block | 19.9 mm |
| Format | FLS - flange, long, standard height |
| Self-aligning for compensation of misalignments | Without self-alignment |
| Length of runner block | 72.6 mm |
| Runner block or guide rail | Runner block |
| Width of runner block | 47 mm |
| Static torsional moment load capacity Mt0 | 180 Nm |
| Dynamic torsional moment load capacity Mt100 | 120 Nm |
| Static longitudinal moment load capacity ML0 | 180 Nm |
| Linear guide type | Ball rail system |
| Version | Ball rail system |
| Accuracy class | UP - Ultra precise |
| Dimension B1 | 53.6 mm |
| Friction coefficient μ min. | 0.002 |
| Model | High-precision ball runner block |
| Lubrication | Pre-lubricated, preserved |
| Maximum permissible linear speed vmax | 5 m/s |
| Friction coefficient μ max. | 0.003 |
| Dynamic load capacity C50 | 16100 N |
| Material (profiled rail systems) | Carbon steel |
| Preload force | 800 N |
| Maximum acceleration rate amax | 500 m/s² |
| Dynamic load capacity C100 | 12800 N |
| Dynamic longitudinal moment load capacity ML50 | 150 Nm |
| Dynamic longitudinal moment load capacity ML100 | 120 Nm |
| Dynamic torsional moment load capacity Mt50 | 150 Nm |
| Dimension T1 min | 12 mm |
| Seal | SS - Standard seal |
| Permissible ambient temperature (min) | <prefix>-</prefix>10<suffix></suffix> °C |
| Permissible ambient temperature (max) | <prefix>+</prefix>80<suffix></suffix> °C |
| Weight | 0.3 kg |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Manufacturer | Bosch Rexroth |
| Manufacturer Nr. | R165312920 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Norm | DIN ISO 14728-1 |
| Preload | C2 |
Downloads
Datasheet
- Datasheet (PDF)
- Ball rail systems High Precision BSHP Ball runner blocks, ball guide rails, accessories (R999000485) EN
- Kugelschienenführungen Hochpräzision BSHP Kugelwagen, Kugelschienen, Zubehör Inhaltsverzeichnis DE
- Guidages à billes sur rails de haute précision BSHP Guides à billes, rails à billes, accessoires FR
