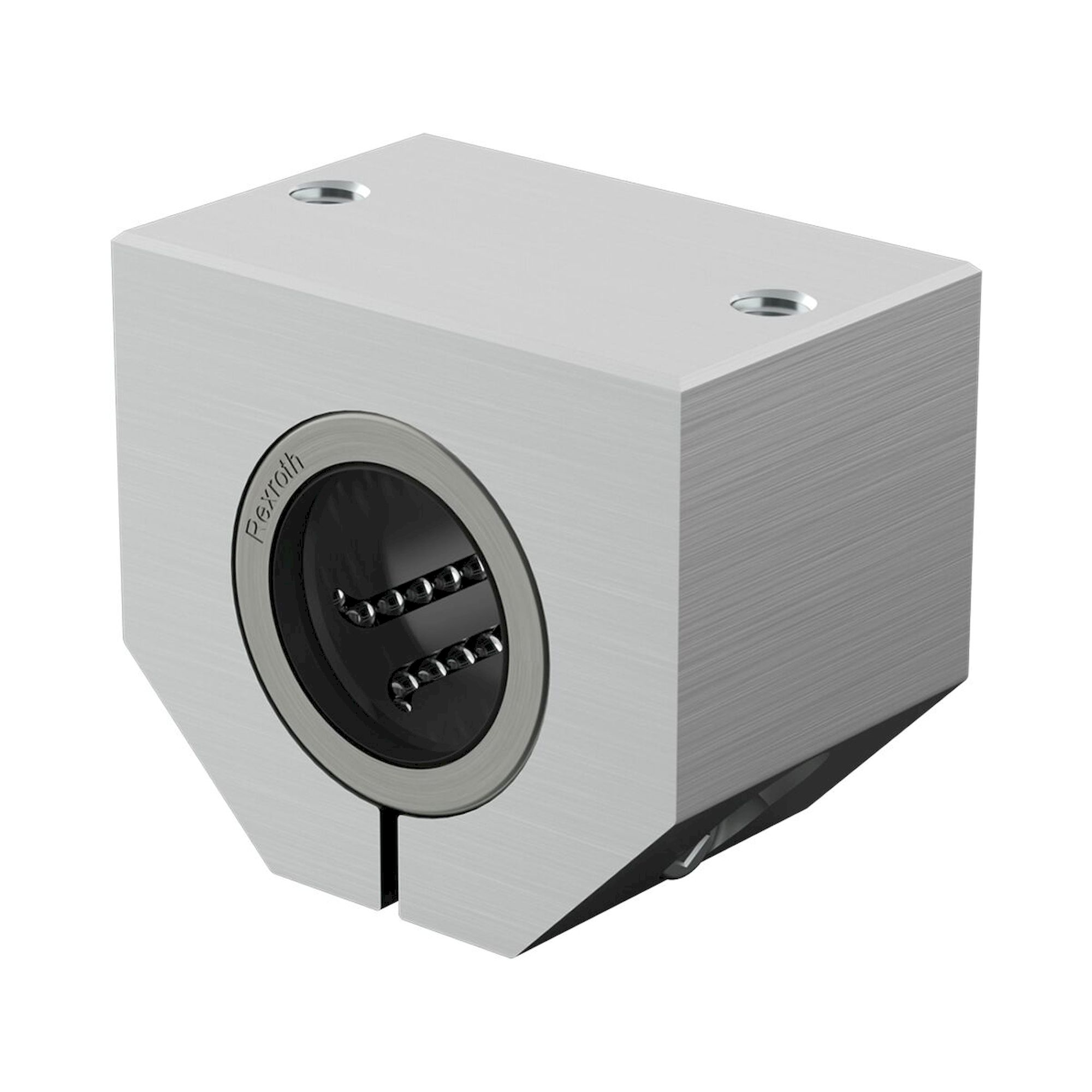

Linear set LSAH-H-60-DD - Bosch Rexroth R170126020

Name: Linear set LSAH-H-60-DD - Bosch Rexroth R170126020
Brand: Bosch Rexroth
SKU: BRR-R170126020
Price: 295.34 EUR
Availability: InStock

Bosch Rexroth ✓ Original product Brand new Made in Germany

Linear set LSAH-H-60-DD by Bosch Rexroth, material number R170126020. The static load capacity is 18700 N.

Net

€295.34

excl. VAT

Item BRR-R170126020

Manufacturer no. R170126020

Question about this item

Datasheet (PDF) User manual 5 documents, all under Downloads

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

Linear set LSAH-H-60-DD by Bosch Rexroth, material number R170126020. The static load capacity is 18700 N. Permissible values are up to 5 m/s travel speed and 150 m/s² acceleration. The weight is 5 kg.

Technical data

Maximum permissible linear speed vmax	5 m/s
Type	Linear set
Static load capacity C0	18700 N
Series	Super H
Shaft radial clearance h6	<prefix>+</prefix>56<suffix></suffix>
Breakaway force	18 N
Maximum acceleration rate amax	150 m/s²
Outer diameter D	90 mm
Shaft diameter d	60 mm
Linear guide type	Linear bushing and shaft
Format of linear bushings	H - Heavy-duty
Dynamic load capacity C	23500 N
Friction force FR	7 N
Permissible ambient temperature (min)	<prefix>-</prefix>20<suffix></suffix> °C
Permissible ambient temperature (max)	<prefix>+</prefix>80<suffix></suffix> °C
Weight	5 kg
Permissible ambient temperature (min. ... max.)	-20 °C ... +80 °C
Manufacturer	Bosch Rexroth
Manufacturer Nr.	R170126020
GPSR manufacturer information	Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Condition of article	New
Article authenticity	Original product
Country of Manufacture	Germany
