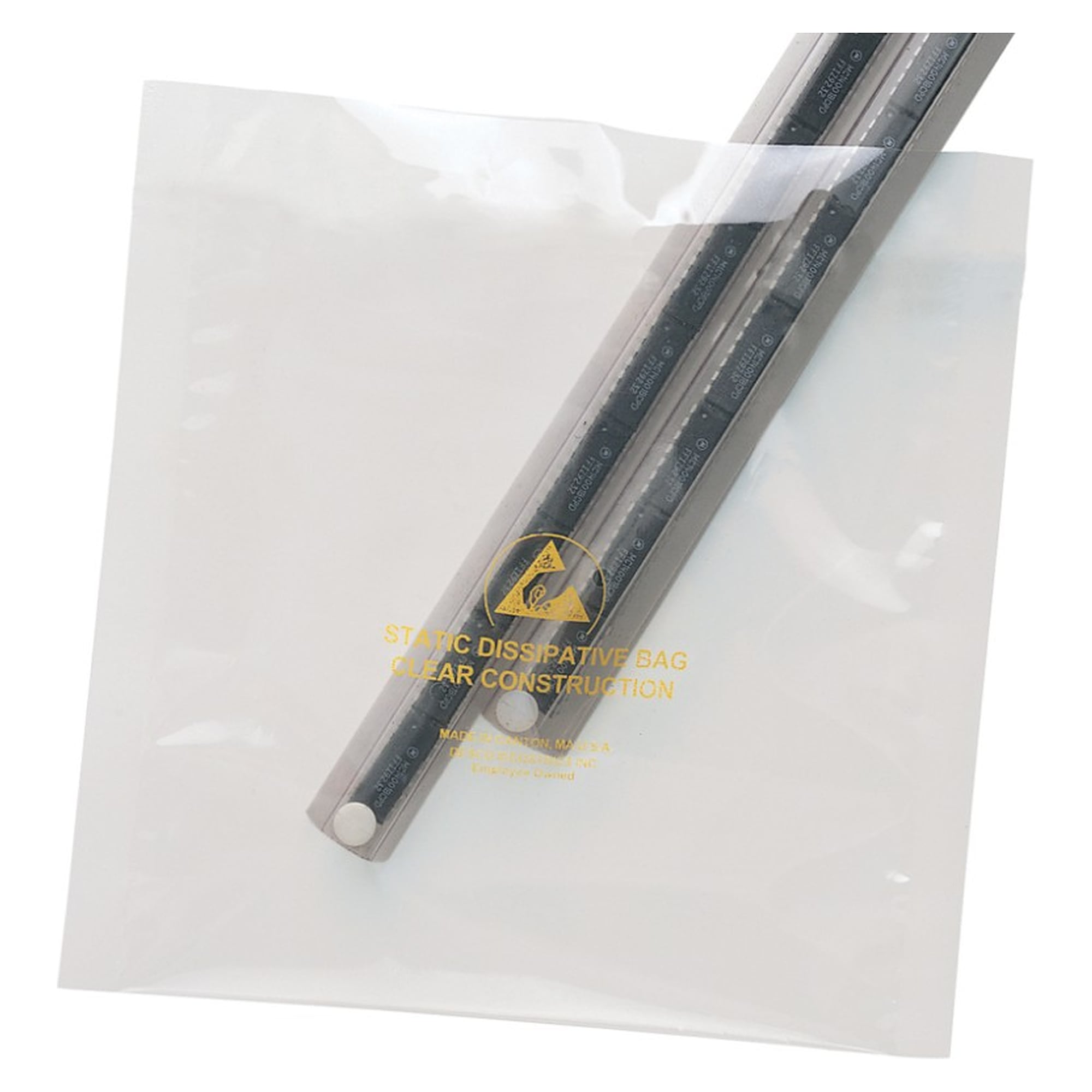

Statfree Ultra Clear Dissipative Bag, Open Top, 254 x 305 mm, Pack of 100 - Desco 13874

Inside the EPA, any packaging that touches parts should be dissipative and low charging. The Statfree Ultra Clear bag with 254 x 305 mm inside dimensions delivers 1 x 10⁴ to < 1 x 10¹¹ ohms on both surfaces and with over 90 % transparency stays clear enough to read part numbers and barcodes without opening it.

Key benefits

• Dissipative inner and outer surfaces, 1 x 10⁴ to < 1 x 10¹¹ ohms, safe for ESD susceptible parts throughout the EPA
• Over 90 % transparency for visual inspection, labels and barcodes
• Free of amines, amides, n-octanoic acid, silicones and heavy metals, polycarbonate compatible and non-corrosive
• 0.089 mm polyester film, puncture resistance above 14 lbs and 9.5 mm side seals
• Printed with the ESD protective symbol and a lot code, minimum shelf life of one year under normal storage

Applications

For ESD sensitive and non-sensitive parts, small components, work orders and travellers inside the EPA, for example in kitting, at the assembly bench or in kanban stock. The bag does not shield. Use a shielding bag for transport outside the EPA. The 100 bags are supplied in a shielding bag.

Standards

Meets the requirements of ANSI/ESD S20.20 and ANSI/ESD S541 for dissipative packaging, surface resistance per EN 61340-5-3. Lead-free, RoHS, REACH and Conflict Minerals compliant.
