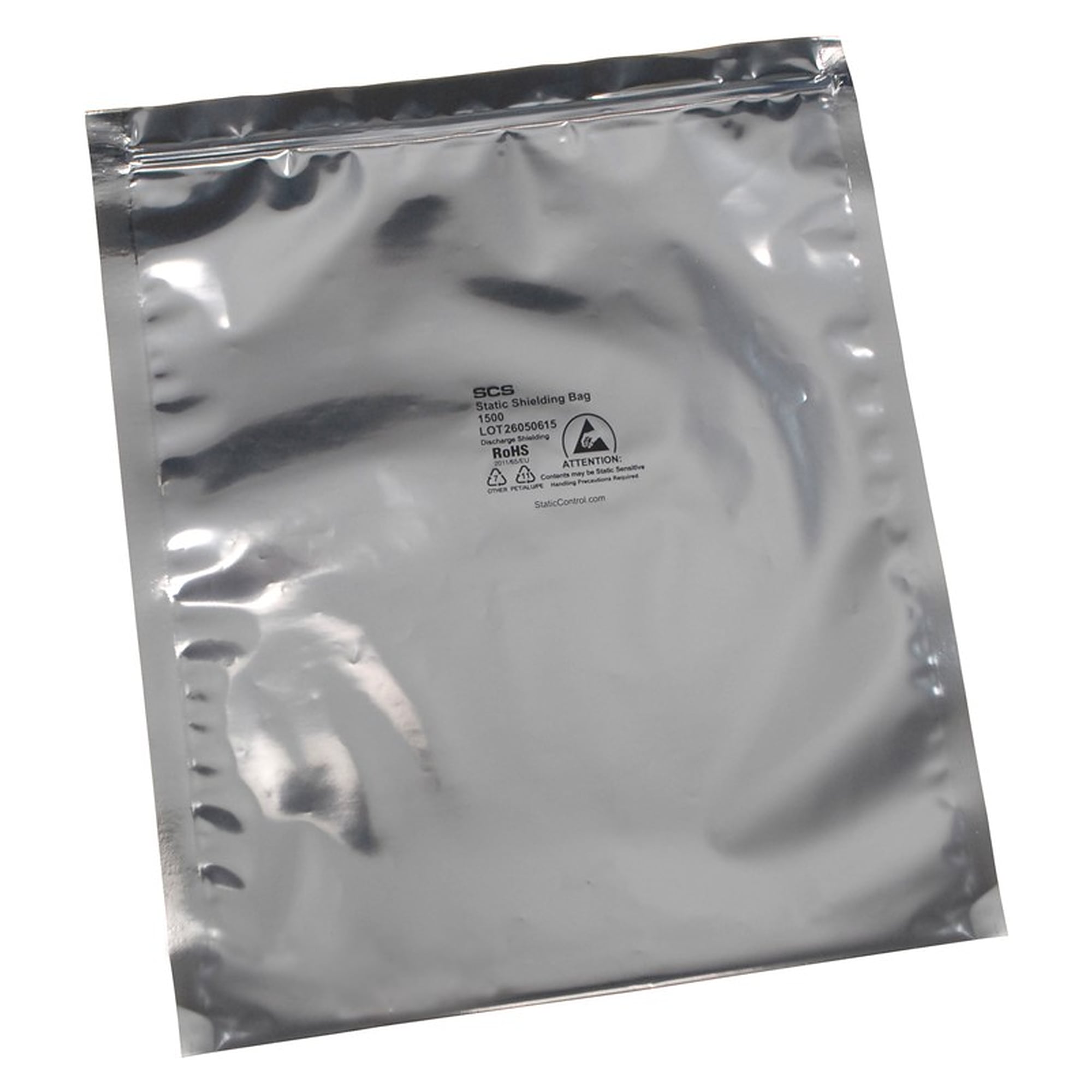

Metal-Out Static Shielding Bag, 1500 Series, ZipTop, 255 x 305 mm, Pack of 100 - Desco 150Z1012

When ESD sensitive assemblies leave the plant, the risk often sits on the outside of the bag. On the 1500 Series metal-out shielding bag the metal layer is on the outside under a protective top coat, giving a surface of just 1 x 10⁴ to < 1 x 10⁸ ohms that retains less charge than a metal-in bag. The bag with 255 x 305 mm inside dimensions shields discharges to below 10 nJ.

Key benefits

• Reclosable zipper for parts that are taken out and put back repeatedly
• Discharge shielding below 10 nJ per ANSI/ESD STM11.31, also for shipping and storage outside the EPA
• Low resistance exterior, 1 x 10⁴ to < 1 x 10⁸ ohms, charge retention below 100 V
• Dissipative interior, 1 x 10⁴ to < 1 x 10¹¹ ohms, charge drains on a grounded surface or through a grounded operator
• 40 % transparency to identify contents, 62 N seal strength
• Heat sealable, printed with the ESD protective symbol and a lot code

Applications

Shipping PCBs and assemblies to customers and suppliers, spare parts logistics, storage in goods-in and other unprotected areas. Some electronics manufacturers specify metal-out bags explicitly. Store dry and out of direct sunlight, discard damaged bags.

Standards

Meets ANSI/ESD S20.20 and ANSI/ESD S541 for shielding packaging inside and outside an EPA, Static Control Bag per ANSI/ESD S11.4 Level 3. Free of amines, n-octanoic acid, silicones and heavy metals, lead-free, RoHS 2, REACH and Conflict Minerals compliant.
