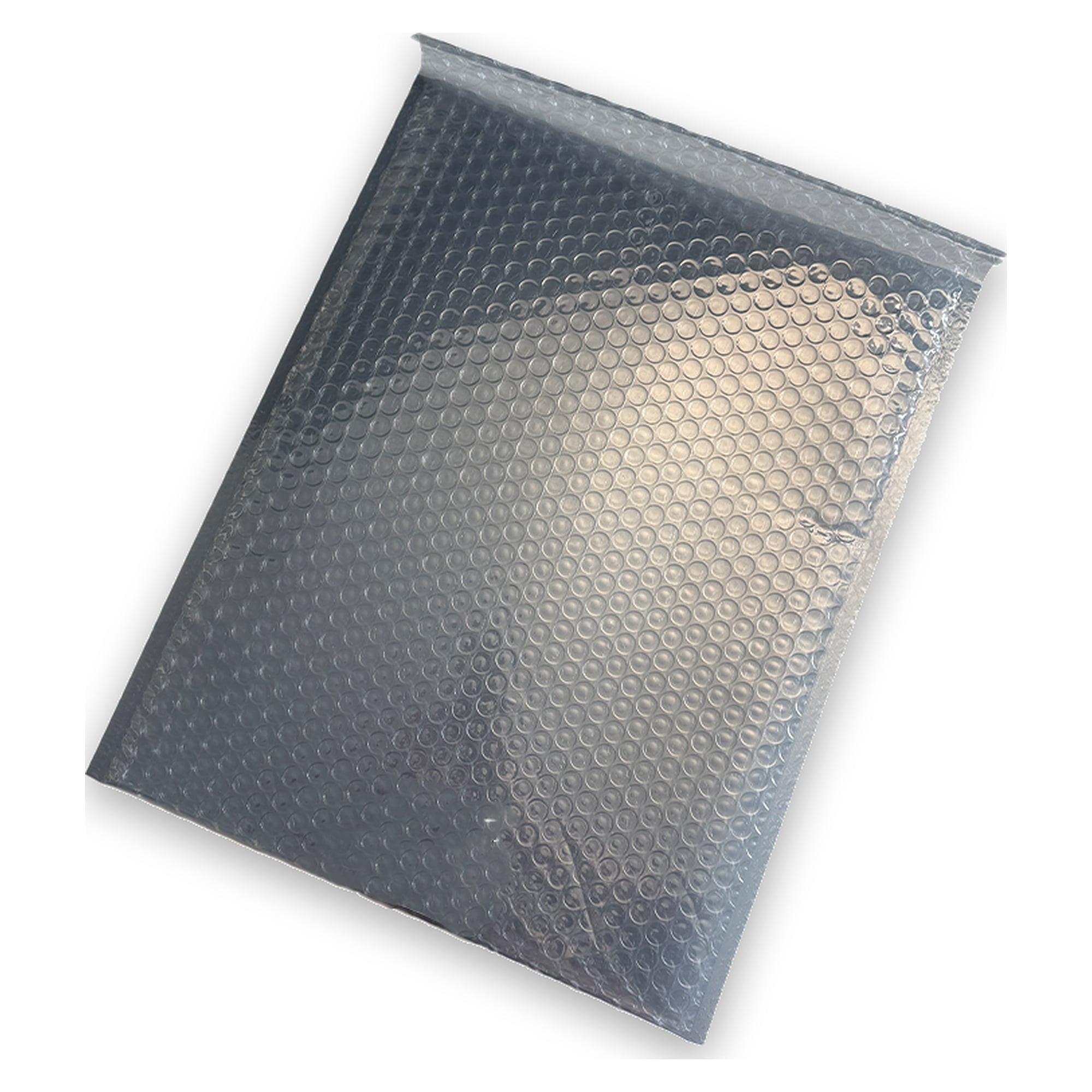

Shielding bubble bag, outer size 255 x 305 mm, without flap
Shielding bubble bag with an outer size of 255 x 305 mm: a metal layer and 10 mm bubbles protect populated PCBs and plug-in cards from electrostatic discharge and impact at the same time. Shielding below 10 nJ to IEC 61340-5-1 and IEC 61340-5-3.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Shipping populated PCBs and plug-in cards calls for two kinds of protection in one pack: against electrostatic discharge and against impact. This bubble bag with an outer size of 255 x 305 mm provides both. The three-layer silver-grey film shields against electrostatic fields to below 10 nJ, and the 10 mm bubbles absorb knocks in transit.
Benefits
- Shielding below 10 nJ: the metal layer keeps external electrostatic discharges away from the contents.
- Built-in cushioning: 10 mm bubbles replace extra void fill in the carton.
- Dissipative inside and outside: surface resistance below 1 x 10E11 Ohm on both sides.
- Standards-compliant: suitable for ESD control programmes to IEC 61340-5-1 and packaging to IEC 61340-5-3.
Applications
The 255 x 305 mm format is intended for populated PCBs and plug-in cards such as controller boards, power supply modules or measurement cards. In production, the bag serves as transport packaging between assembly, testing and dispatch.
The version without flap leaves the opening clear for fast filling. The range is also available in other formats and with a flap.
Technical data
| Item number | EP0701469 |
|---|---|
| Brand | A1-ESD |
| Outer size | 255 x 305 mm |
| Version | without flap |
| Bubble diameter | 10 mm |
| Layers | 3 |
| Material thickness | 171 µm (+/- 5 %) |
| Surface resistance inside | below 1 x 10E11 Ohm |
| Surface resistance outside | below 1 x 10E11 Ohm |
| Electrostatic shielding | below 10 nJ |
| Colour | silver/grey |
| Standards | IEC 61340-5-1, IEC 61340-5-3 |
| Weight | 0.1 kg |
| Manufacturer | A1-ESD |
| Manufacturer Nr. | EP0701469 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Condition of article | New |
| Article authenticity | Original product |
| Certification | IEC 61340-5-1, IEC 61340-5-3 |
