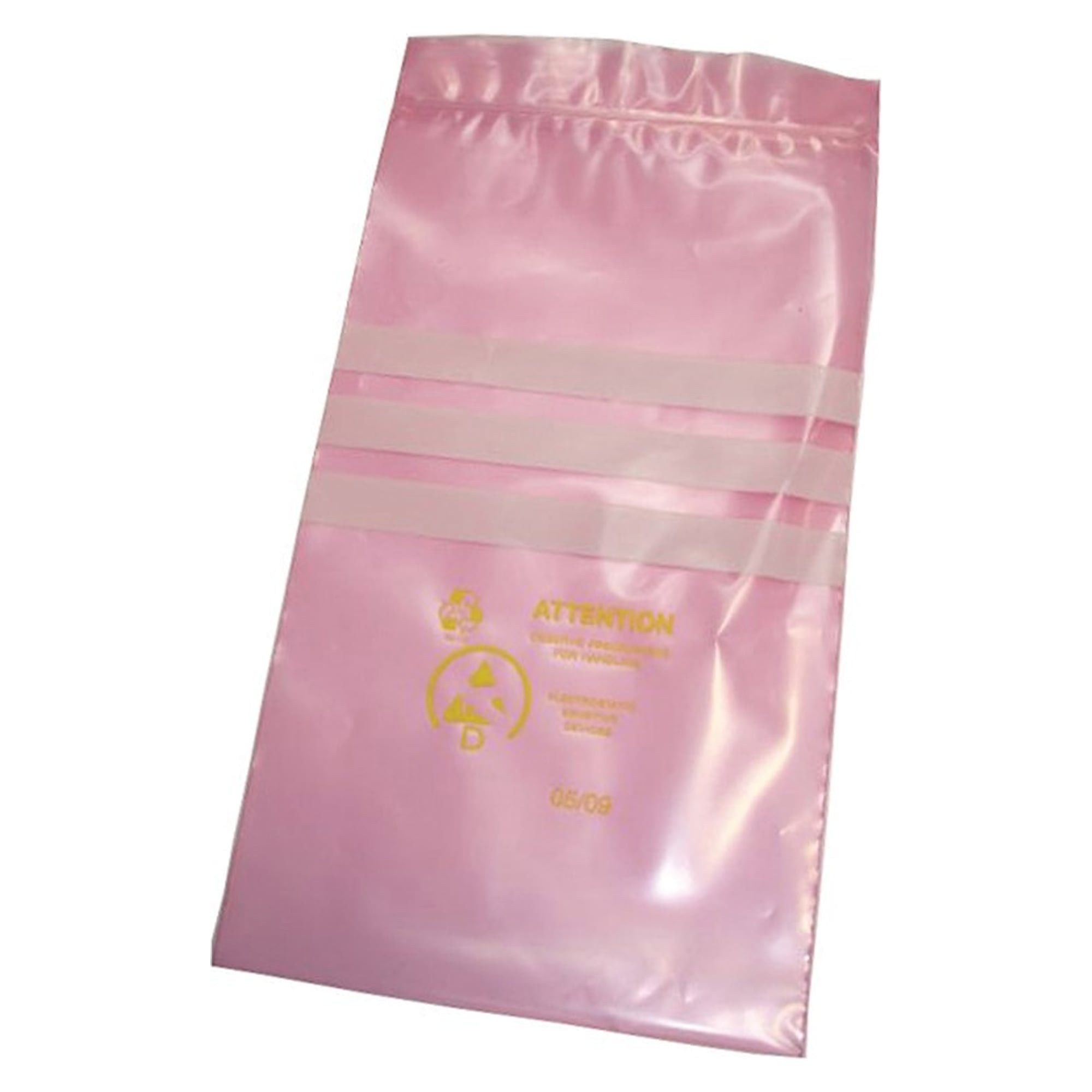

Pink Dissipative Zip Bag with Write-On Panel, 150 x 200 mm, Pack of 100 - Desco 203015

Screws, passive components and other small parts move through the EPA between stores, assembly and test, and their packaging must not build up charge on its own. Desco zip bag 203015 measures 150 x 200 mm and is made of pink polyethylene with antistatic additive. Inner and outer surface resistance is 1 x 10⁵ to < 1 x 10¹¹ ohms, while the film stays transparent.

Key benefits

• Dissipative inside and out: surface resistance 1 x 10⁵ to < 1 x 10¹¹ ohms, static decay under 2 s
• Amine-free and non-corrosive, safe for polycarbonate housings
• Resealable double-tooth zip lock for frequent opening and closing
• Write-on panel for part number, lot or date directly on the bag
• Transparent film, contents can be identified without opening

Applications

Intimate-contact packaging for parts inside the EPA, such as passive components, screws, cables or assembly hardware, and packaging for non-ESD-sensitive items destined for use in the EPA. Transport and storage of ESD sensitive devices outside the EPA additionally require shielding packaging such as a shielding bag.

Standards

Surface resistance tested per IEC 61340-2-3. ESD protective symbol per IEC 61340-5-1. RoHS 2 and REACH compliant. The antistatic properties last when the film is stored cool and dry, avoid heat and outdoor storage.
