Metal-In Static Shielding Bag, ZipTop, Transparent, 510 x 610 mm, Pack of 100 - Desco 3002024

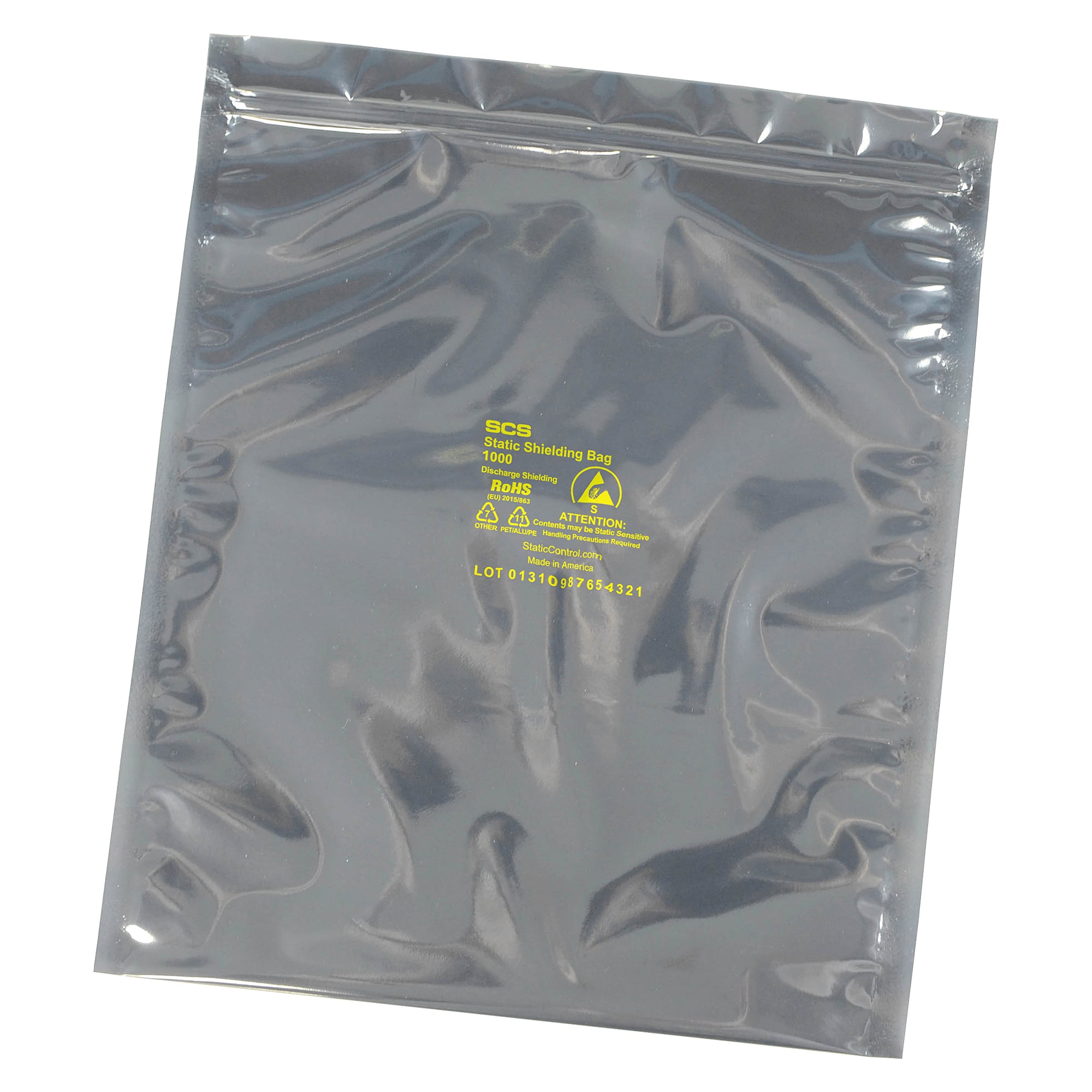

Storing or shipping sensitive assemblies calls for packaging that keeps electrostatic fields and discharges out. These transparent Desco (SCS) shielding bags are made of a polyester, metal and polyethylene laminate. The buried metal layer limits the discharge energy that passes through to less than 10 nJ, and the dissipative inner and outer surfaces can be discharged via a grounded surface or a grounded operator. Size 510 x 610 mm, pack of 100. The large format takes large circuit boards, backplanes, equipment plug-in units and complete assemblies.

Key benefits

• Discharge shielding: < 10 nJ per ANSI/ESD STM11.31
• Dissipative inside and outside, Rs 1 x 10⁴ to < 1 x 10¹¹ ohms, usable throughout the EPA
• Resealable ZipTop for stores, picking and repeated use
• Around 40 % transparency keeps contents and labels readable
• Printed with ESD protective symbol and lot code for traceability
• Free of amines, silicones and heavy metals, RoHS 2 and REACH compliant

Applications

Storage and shipping of circuit boards, assemblies, ICs, hard drives and spare parts, order picking in stores, returns and repair loops. For a permanent closure the bags can be heat sealed at 149 to 190 °C.

Standards

Meets ANSI/ESD S20.20 and ANSI/ESD S541 for shielding packaging inside and outside the EPA, and ANSI/ESD S11.4 Level 3 (static control bag).
