Side Gusset Bag Metal-In 1000 Series, open top, 510 x 915 x 255 mm, pack of 100 - Desco SG100203610

ESD sensitive assemblies need packaging that keeps electrostatic fields and discharges away during transport and storage. The 1000 series metal-in bag is made from a polyester, aluminium and polyethylene laminate and limits the discharge energy inside to less than 20 nJ per ANSI/ESD STM11.31.

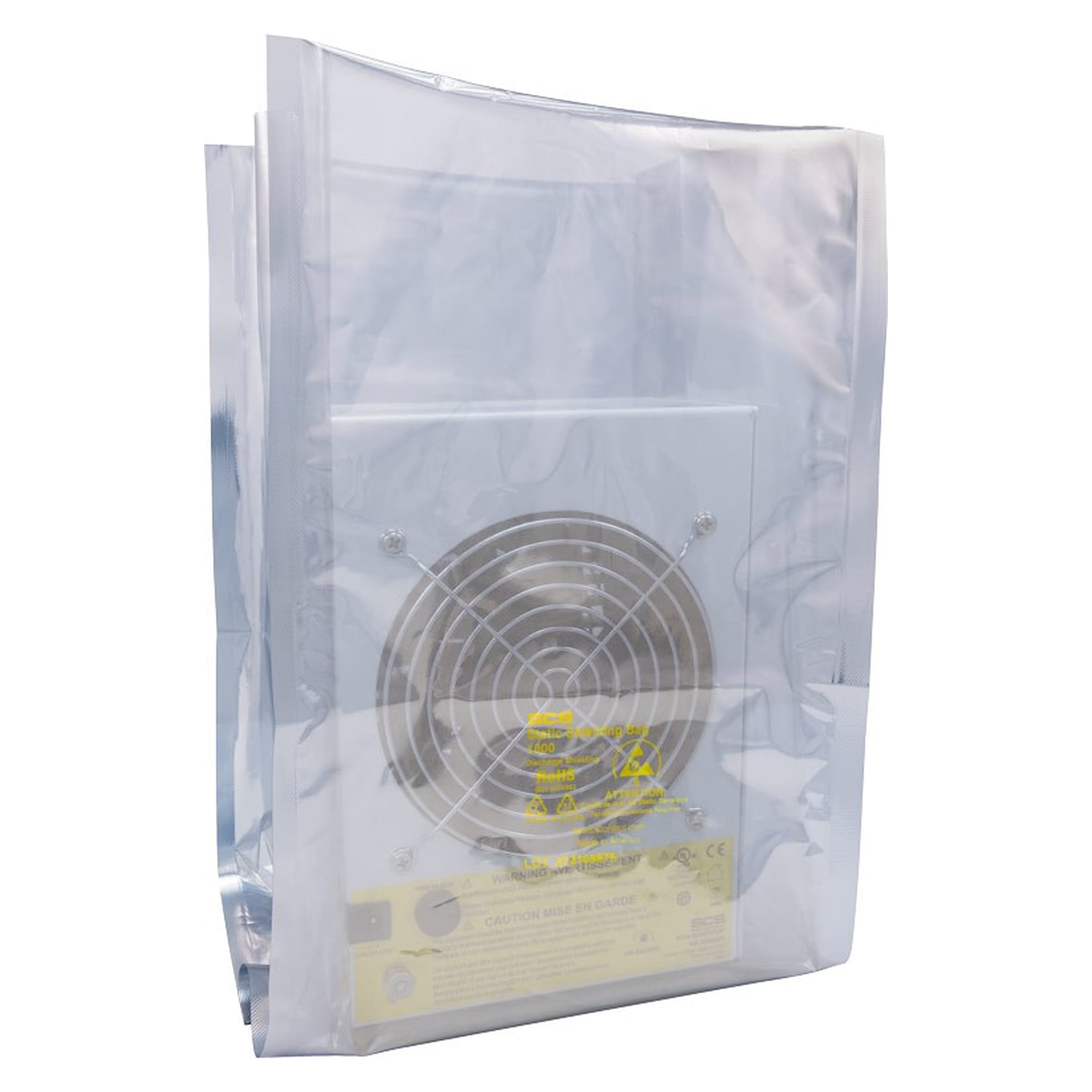

Side gussets and a sealed bottom let the bag expand, so large and bulky assemblies fit inside. Used as a liner in cartons or bins, it turns standard shipping containers into ESD safe packaging.

Key benefits

• Plenty of volume: side gussets with sealed bottom expand for bulky parts, ideal as carton and bin liners
• Reliable shielding: < 20 nJ discharge energy per ANSI/ESD STM11.31, valid inside and outside the EPA
• Dissipative inside and out: interior surface resistance 1 x 10⁴ to < 1 x 10¹¹ ohms, charges drain via a grounded surface or grounded operator
• Contents visible: approx. 40 % transparency for inspection without opening, ESD protective symbol and lot code printed
• Tight closure: heat sealable at 149 to 190 °C

Applications

Packaging large PCBs, plug-in units, power supplies and assemblies, lining cartons and bins for shipping and storage, protection during transport inside and outside the EPA.

Standards

Meets ANSI/ESD S20.20 and ANSI/ESD S541 for ESD shielding packaging inside and outside an EPA, static control bag to ANSI/ESD S11.4 Level 3. RoHS, REACH and conflict minerals compliant.
