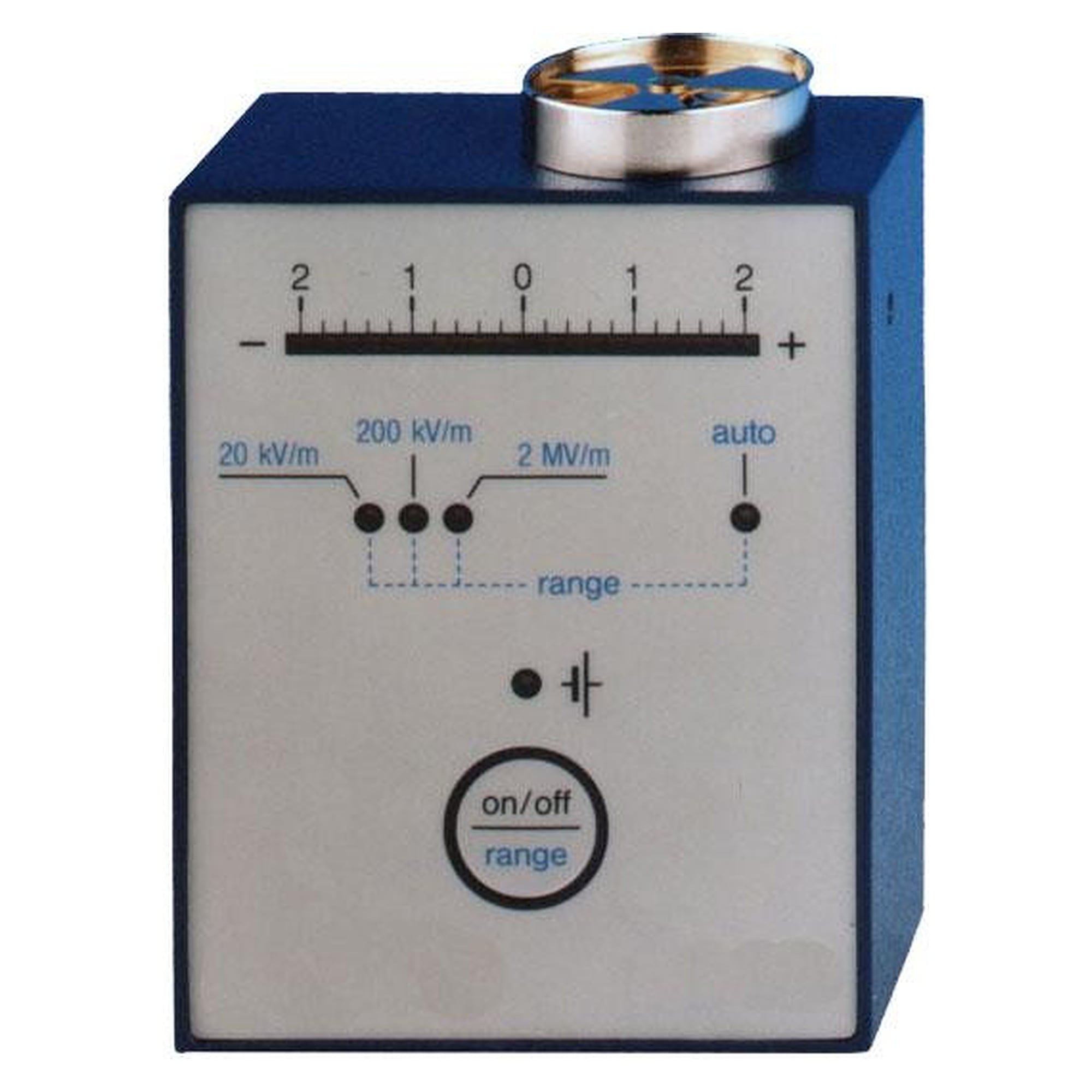

Electrostatic field meter EFM 8120 with analogue output, up to ±2 MV/m
Handy electrostatic field meter with a 21-segment LED bar with smooth transition and a reading accuracy of about 5 %. The sturdy aluminium housing, built-in NiMH battery and ±1 V analogue output make it a mobile instrument for ESD workstations.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The EFM 8120 is a small, handy electrostatic field meter with a 21-segment LED bar with smooth transition, giving a maximum reading accuracy of about 5 %. The instrument sits in a sturdy aluminium housing.
Power is supplied by a built-in NiMH battery with permanent charge monitoring. A ±1 V analogue output is provided for recording readings. With the optional Pico software, the hand electrode and the MK 11 S2 measuring head, a walking test to DIN EN 61340-4-5 can be carried out.
Applications and standards
For checking electrostatic charges and, with accessories, for the walking test to DIN EN 61340-4-5 within an ESD control programme to IEC 61340-5-1.
Technical data
| Measuring ranges | ±20 kV/m, ±200 kV/m, ±2 MV/m |
|---|---|
| Analogue output | ±1 V / Ri > 1 kΩ (proportional to field strength) |
| Dimensions | 100 x 80 x 38 mm (L x W x H) |
| Weight | 370 g |
| Power | built-in 7.2 V NiMH battery |
| Manufacturer | A1-ESD |
| Manufacturer Nr. | EP0201026 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Sales unit | 1 Stück |
| Height | 38 |
| Width | 80 |
| Depth | 100 |
| ESD version | ESD (antistatic) |
| Certification | IEC 61340-4-5, IEC 61340-5-1 |
Scope of delivery
- Carry case with conductive foam insert
- Built-in 7.2 V NiMH battery
- Charger 230 V~ / 50 Hz
- Grounding cable with crocodile clip
- Measuring lead for connection to the recorder output
- Operating manual and calibration certificate
Downloads
Accessories
Walking test accessory set for electrostatic field meter EFM 8120 to DIN EN 61340-4-5
