The CPS set turns the EFM 823 into a charge plate monitor for verifying air ionisers. Its standard-compliant 20 pF charge electrode and built-in start-stop timer measure decay time to EN 100015 and EOS/ESD S3.1.
Charge plate set for ioniser testing with EFM 823, ±1200 V
A1-ESD
Original product
Net price (excl. VAT)
€1,385.00
Item
EP0201016
Manufacturer no.
EP0201016
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.EP0201016
Country of originGermany
ConditionNew
Article
EP0201016
Frequently Bought Together
- This Item: €1,385.00
- Walking test accessory set for electrostatic field meter EFM 8120 to DIN EN 61340-4-5 €625.00
- Electrostatic field meter EFM 8120 with analogue output, up to ±2 MV/m €1,285.00
Total price
The charge plate set 823 turns the EFM 823 electrostatic field meter into a charge plate monitor for verifying air ionisers. The charge electrode meets the relevant standards with a capacitance of 20 pF.
The decay time from +1,000 V to +100 V or -1,000 V to -100 V is measured with the start-stop timer built into the EFM 823. Charging is performed via an external HV converter.
Key benefits
- Ioniser verification to EN 100015 and EOS/ESD S3.1
- Standard-compliant 20 pF charge electrode
- Complete in a carry case with antistatic foam insert
Technical specifications (EFM 823)
- Dimensions: 122 x 70 x 26 mm (L x W x H)
- Weight: approx. 139 g (without battery)
- Power: 9 V block battery IEC 6F22
- Display: two-line alphanumeric LCD, 12 characters per line
- Charge electrode: 20 pF
- HV converter: ±1200 V

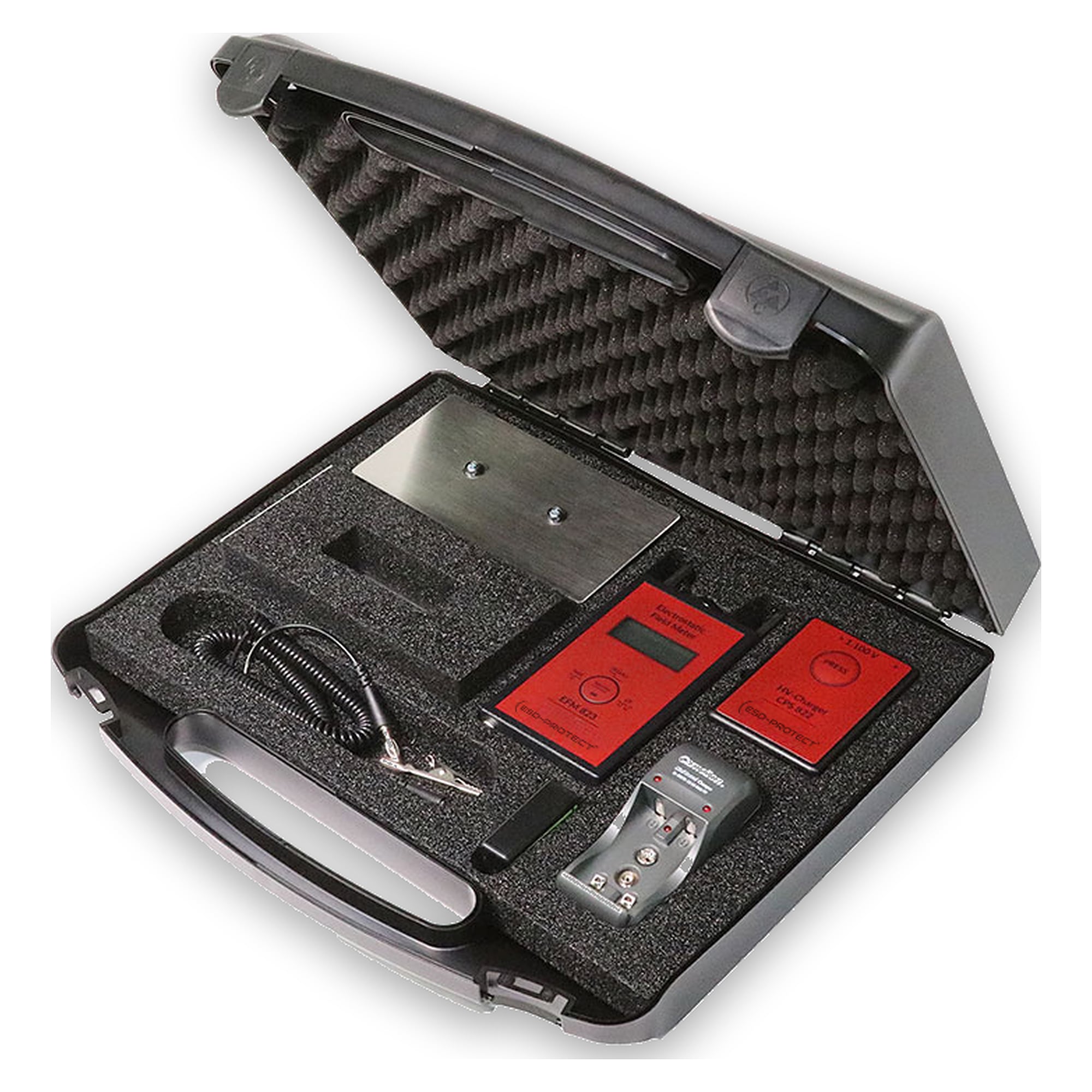

Scope of delivery
- Carry case with antistatic foam insert
- EFM 823 electrostatic field meter
- 9 V NiMH batteries and plug-in charger
- CPS base and plate capacitor
- HV converter ±1200 V
- Coiled grounding cable with crocodile clip
- Operating manual and calibration certificate
| ESD version | ESD (antistatic) |
|---|---|
| Manufacturer Nr. | EP0201016 |
| Manufacturer | A1-ESD |
| Country of Manufacture | Germany |
| Weight | 0.139000 |
| Height | 26 |
| Width | 70 |
| Depth | 122 |
| Sales unit | 1 Set |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
