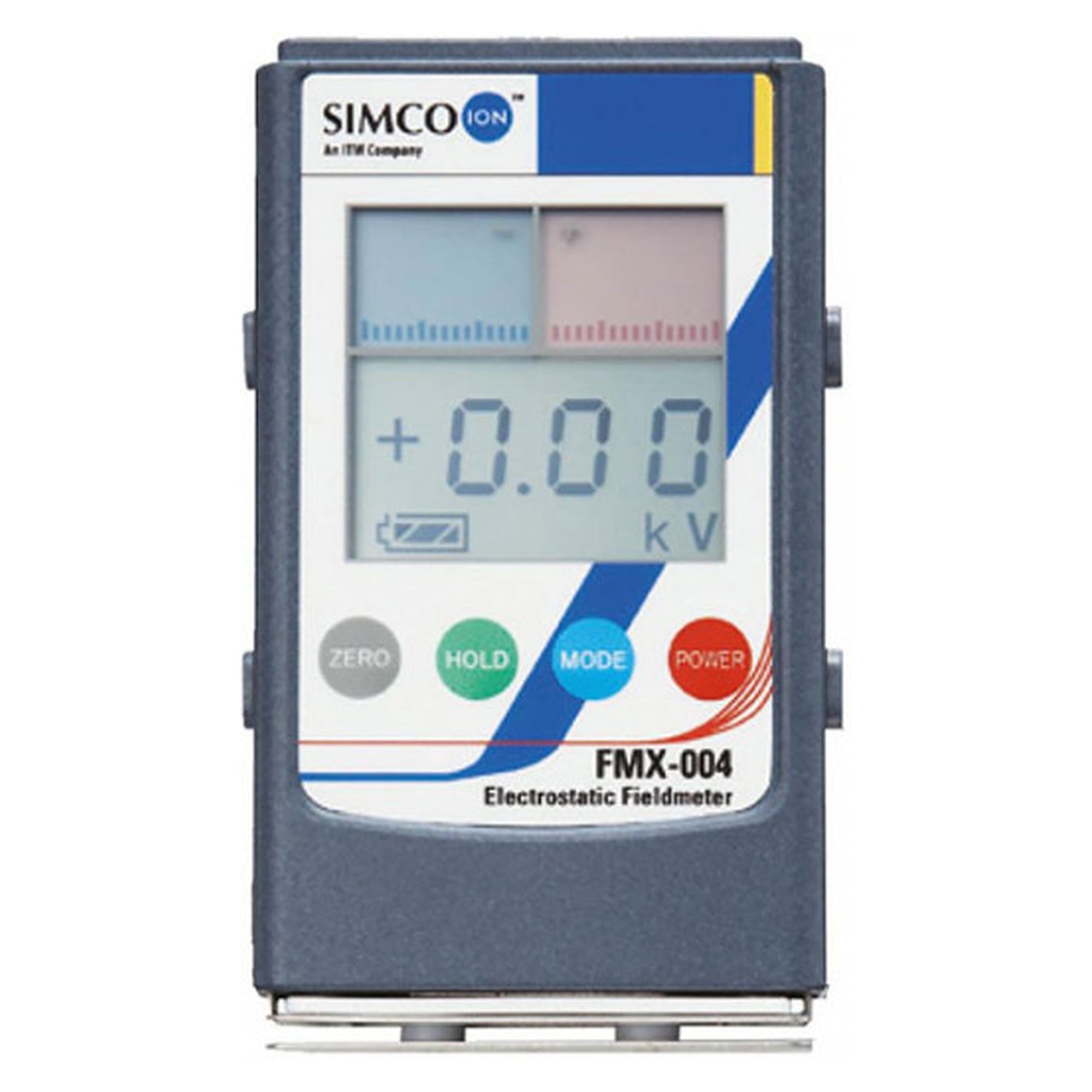

Pocket-size electrostatic field meter FMX-004, 0 to 30 kV
Handy pocket-size field meter for measuring the magnitude and polarity of static charges up to 30 kV. Two LEDs indicate the correct measuring distance, and the conductive ABS housing with grounding connection ensures high accuracy.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The FMX-004 is a handy, compact pocket-size electrostatic field meter. It measures the magnitude and polarity of field strength, stores readings and allows measurement in hard to reach places.
Two built-in LEDs indicate the correct measuring distance. The conductive plastic housing with grounding connection ensures high accuracy. The two-colour display shows the reading both digitally and graphically, and a low-battery indicator is integrated.
Applications and standards
For checking electrostatic charges on ESD workstations, materials and components within an ESD control programme to IEC 61340-5-1.
Technical data
| Range | 0 to 30 kV positive/negative |
|---|---|
| Accuracy | ±10 % (0 to 30 kV) |
| Measuring distance | 25 mm |
| Zero adjustment | automatic |
| Battery | 9 V alkaline |
| Housing | conductive ABS |
| Weight | 170 g |
| Ambient temperature | 10 to 40 °C |
| Manufacturer | A1-ESD |
| Manufacturer Nr. | EP0201025 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Condition of article | New |
| Article authenticity | Original product |
| Sales unit | 1 Stück |
| ESD version | ESD (antistatic) |
| Certification | IEC 61340-5-1 |
Downloads
Questions about this item
Any other question?
Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day.
