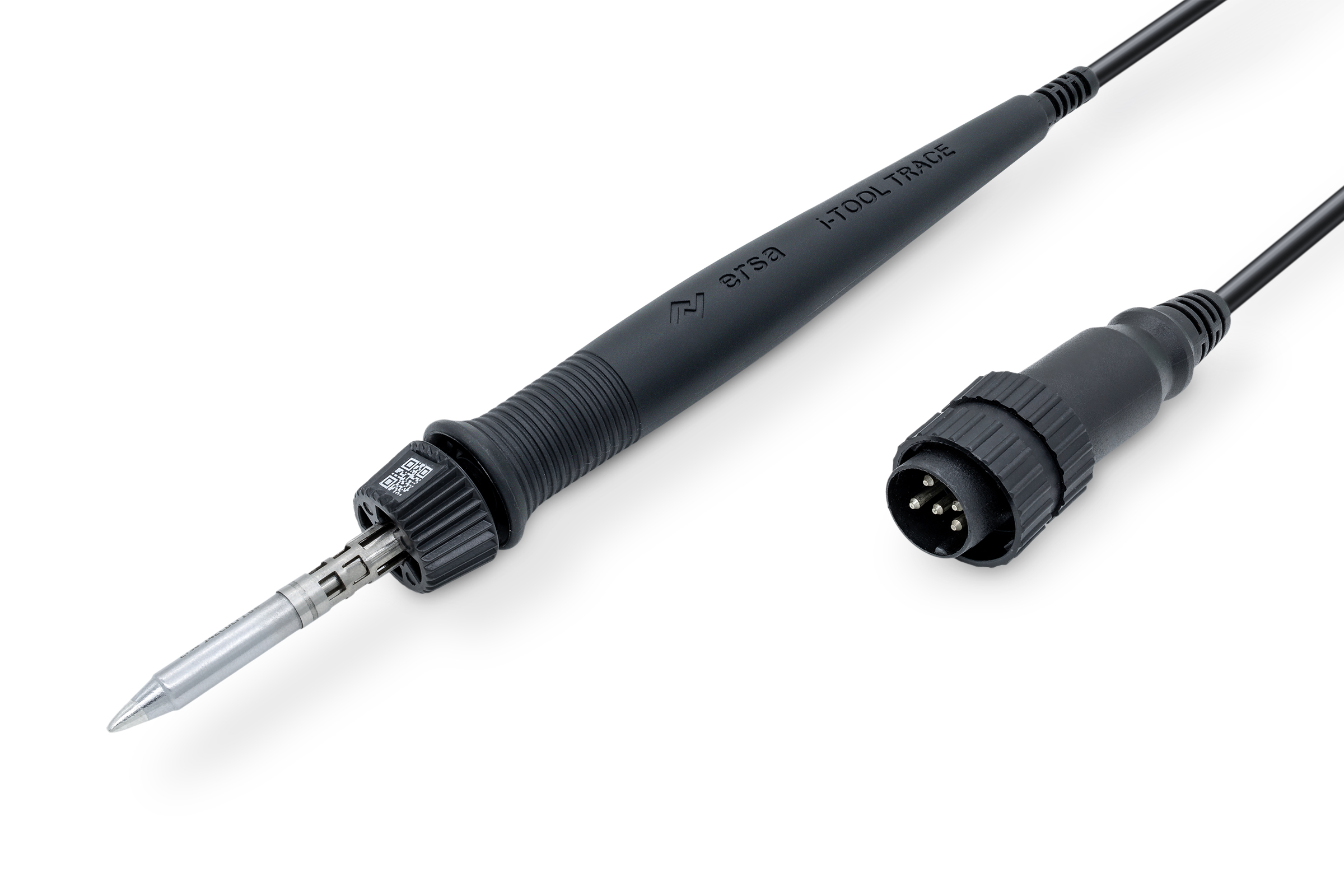

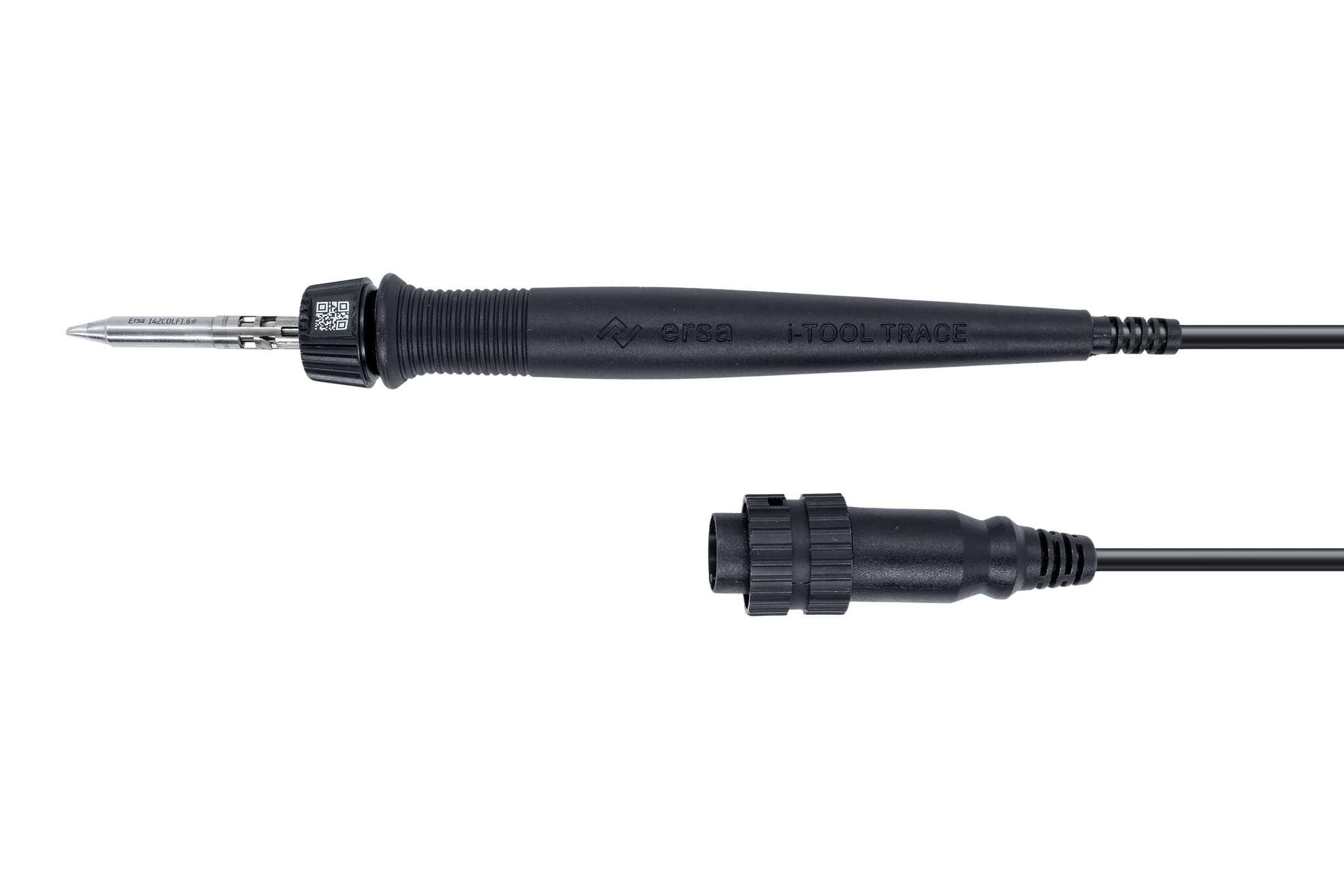

Replacement Soldering Iron i-Tool Trace, 150 W - Ersa 0140CDJ
Lightweight, powerful i-Tool Trace fine soldering iron with 150 W and SENSOTRONIC temperature control. Replacement iron exclusively for the i-Con Trace soldering station. Fast Tip-and-Turn tip change; heating element and tip replaceable separately.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The extremely light and powerful i-Tool Trace fine soldering iron is the replacement iron for the Ersa i-Con Trace soldering station. With 150 W of power and SENSOTRONIC temperature control it heats up very quickly and reheats even faster, ensuring a stable temperature profile.

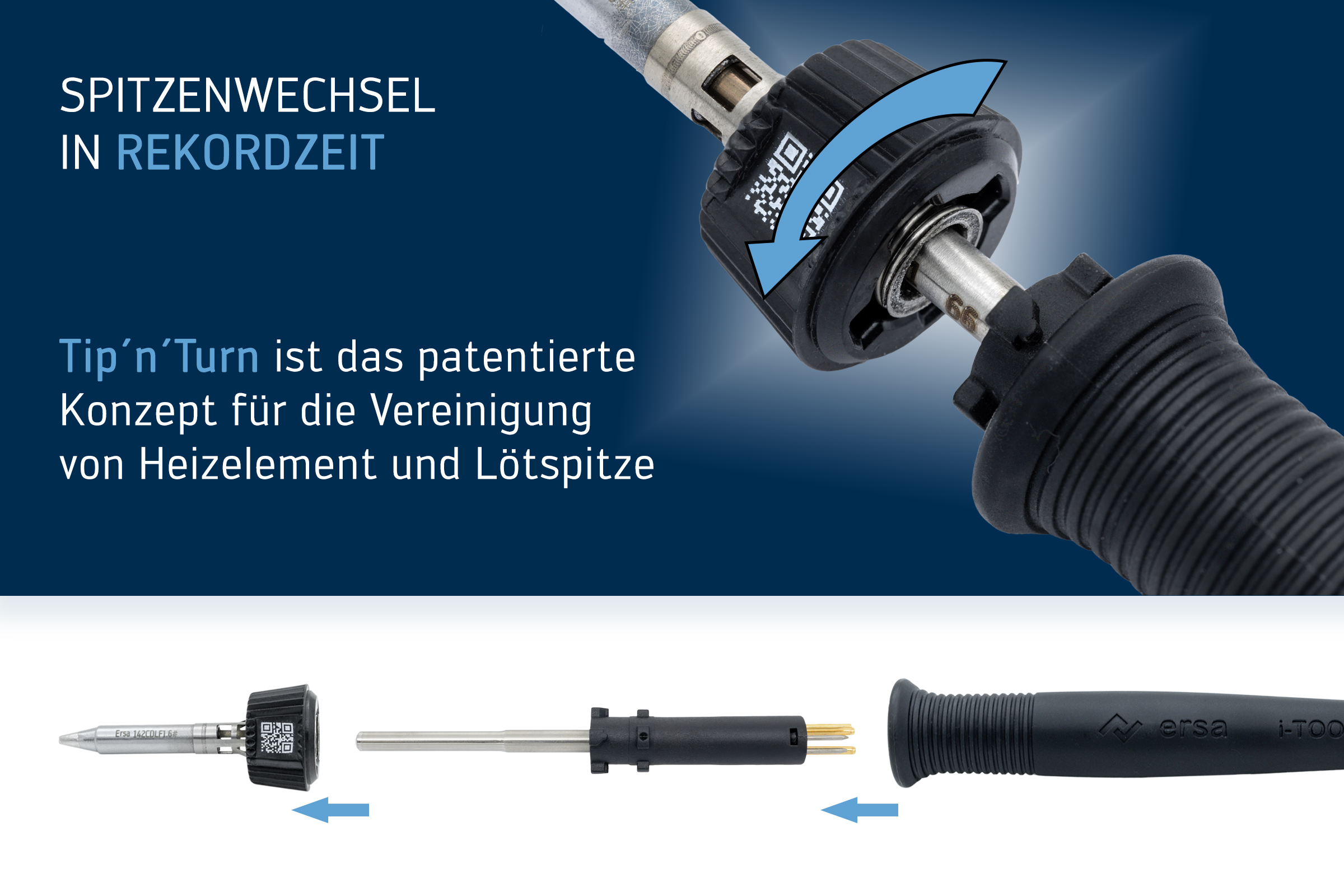

The thermally optimised tip design and a wide range of tip geometries deliver heat precisely to the soldering point and cover many applications. The Tip-and-Turn release allows quick and easy tip changes, even when hot, by hand or with the 0A58 stand. The heating element and tip can be replaced separately, so each part is replaced only when truly necessary, saving resources.
The automatic standby function with adjustable parameters (timing, temperature) ensures economical, energy-efficient soldering without unnecessary waiting times.
Technical data
| Power | 150 W |
|---|---|
| Voltage | 24 V |
| Temperature control | SENSOTRONIC |
| Tip change | Tip-and-Turn release |
| Tip series | 0142 (e.g. 0142CDLF16) |
| Stand | 0A58 |
| Cable length | approx. 1.2 m |
| Handle length without sleeve | approx. 116 mm |
| Handle length to tip end | approx. 167 mm |
| Diameter at centre | approx. 15 mm |
| Grip diameter at fingertip end | approx. 19 mm |
| Net weight | 0.17 kg |
| Weight | 0.17 kg |
| Manufacturer | Ersa |
| Manufacturer Nr. | 0140CDJ |
| EAN | 4003008151237 |
| GPSR manufacturer information | Ersa GmbH, Leonhard-Karl-Straße 24, DE-97877 Wertheim, www.kurtzersa.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Power (W) | 150 W |
| Temperature range | 150-450 °C |
| Temperature (max.) | up to 450 °C |
Note: This item is not compatible with i-Con 1(V), i-Con 2(V) or i-Con Vario (2+4).
