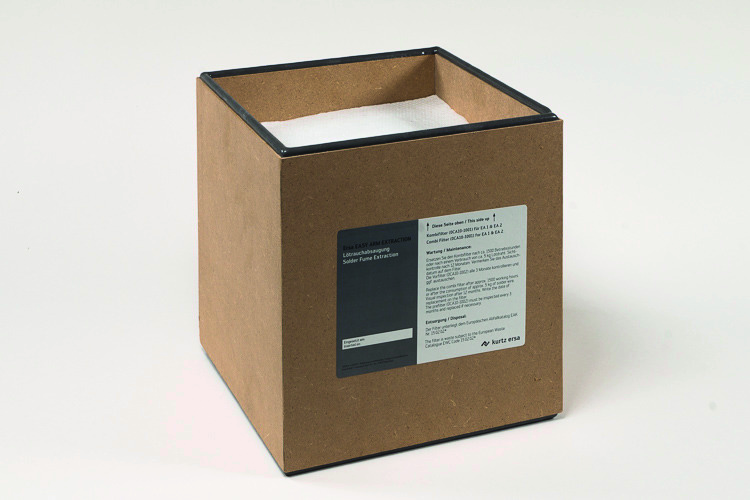

Combination filter H13 with activated carbon for EASY ARM 1 and 2 - Ersa 0CA10-1001
A saturated filter cuts extraction performance and lets gases pass. This combination filter holds an H13 particle stage for solder fume particles and an activated carbon stage for gaseous flux components in a single cartridge. It fits the Ersa EASY ARM 1 and EASY ARM 2 filter units.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The combination filter is the main filter stage of the Ersa EASY ARM extraction units. One cartridge captures the particle load of the solder fume through an H13 HEPA element and the gaseous flux components through activated carbon, so only one part has to be exchanged at a filter change.
Benefits
- H13 class particle filter for micro particles generated during soldering
- Integrated activated carbon stage against harmful gases and odours
- Dimensions 32 x 22 x 23 cm, exact fit for EASY ARM 1 and EASY ARM 2
- Tool-free replacement, the unit signals the filter change visually and audibly
- One spare part for both unit versions, which simplifies stock keeping
Applications
Scheduled filter replacement on solder fume extraction units in electronics manufacturing, repair and laboratory work. Service life depends on operating hours, flux type and the extraction rate set on the unit.
Compatibility and scope of delivery
For Ersa EASY ARM 1 (0CA10-001) and EASY ARM 2 (0CA10-002). Delivery covers one combination filter. The upstream F7 prefilter (0CA10-1002/04) is ordered separately and should be changed more often to extend the life of the combination filter.
Technical data
| Item no. | ER-0CA10-1001 |
|---|---|
| Manufacturer | Ersa |
| Manufacturer item no. | 0CA10-1001 |
| Type | Combination filter |
| Particle filter class | H13 |
| Gas filter | Activated carbon |
| Version | Activated carbon |
| Dimensions | 32 x 22 x 23 cm |
| Suitable for | EASY ARM 1 (0CA10-001), EASY ARM 2 (0CA10-002) |
| Weight | 0.1 kg |
| Manufacturer Nr. | 0CA10-1001 |
| EAN | 4003008095340 |
| GPSR manufacturer information | Ersa GmbH, Leonhard-Karl-Straße 24, DE-97877 Wertheim, www.kurtzersa.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Ausführung | Aktivkohle |
| ESD version | TEC |
| ESD equipment | ESD Lötstationen |
| Compatible with | Ersa EASY ARM |
| Filter class | H13, Activated carbon |
