Flussmittelcreme NC5070 No-Clean F-SW32, DIN 8511 - Ersa 0FMKANC32-005

In rework on fine pitch, the applied quantity decides the result: too much flux runs onto neighbouring pads, too little leaves cold spots. NC5070 flux cream is therefore applied through a 0.6 mm plastic dispensing needle, which keeps it on the single joint being worked.

Features

• 0.6 mm plastic dispensing needle, so the application stays on the targeted pad.
• No-clean formulation, removing the cleaning step after soldering in processes released for it.
• Mildly activated only, classified ROL0, so the residue is rated halide free.
• Classified to EN 29454/1.1.3C and F-SW32 to DIN 8511, giving a documented basis for process records.
• RoHS compliant, usable in production that has to prove compliance.
• Cartridge with plunger, so the pack dispenses without further accessories.

Technical data

Scope of delivery

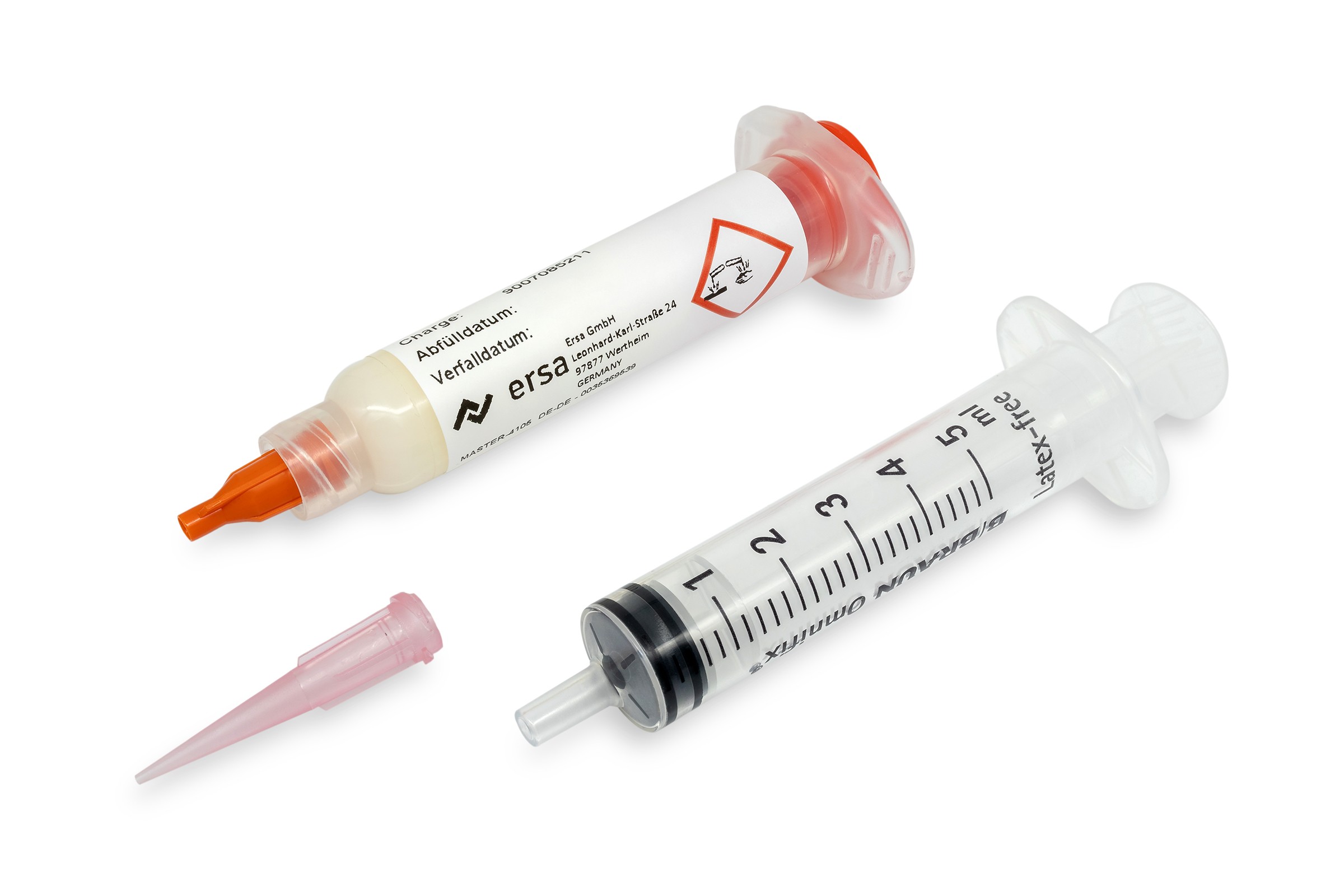

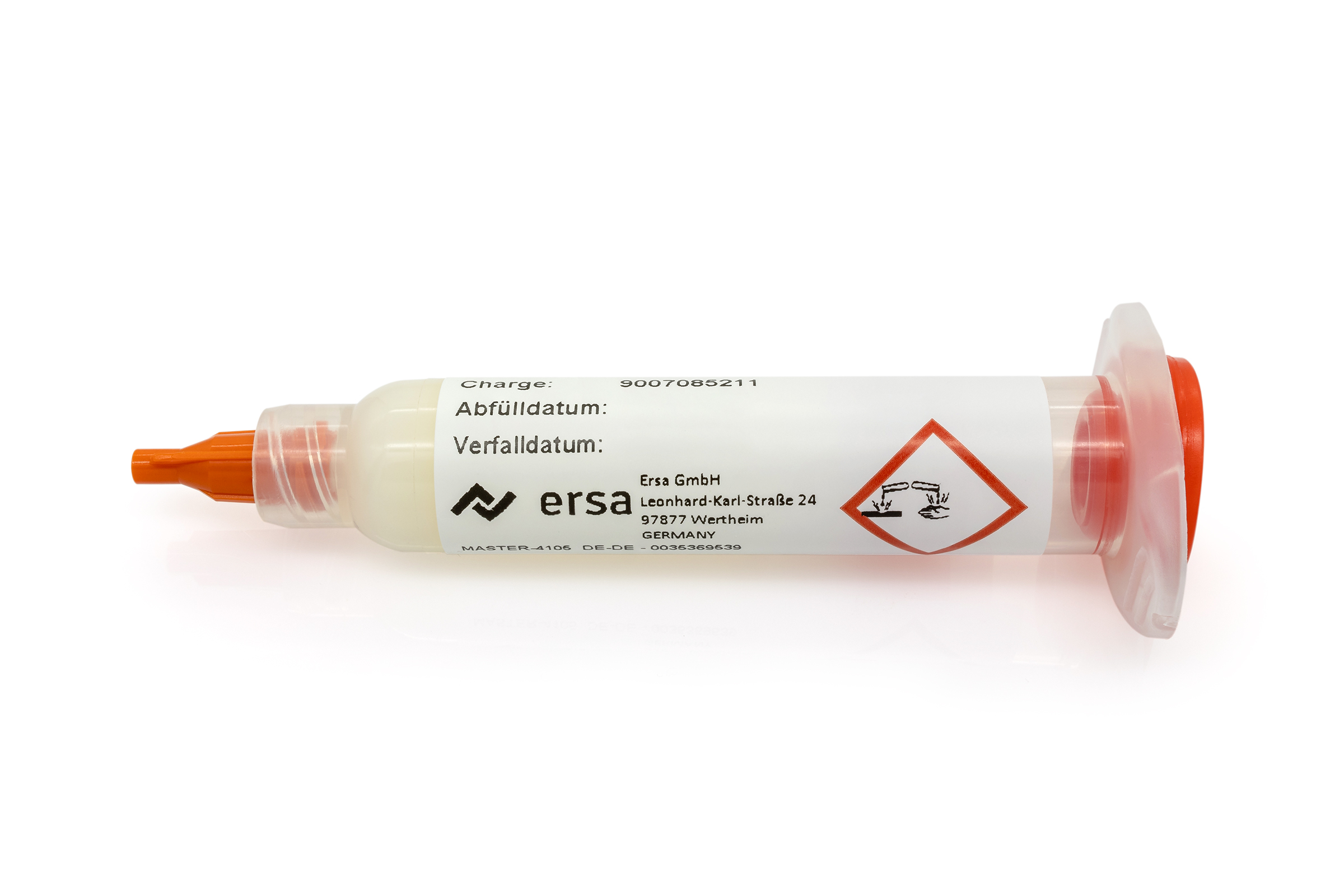

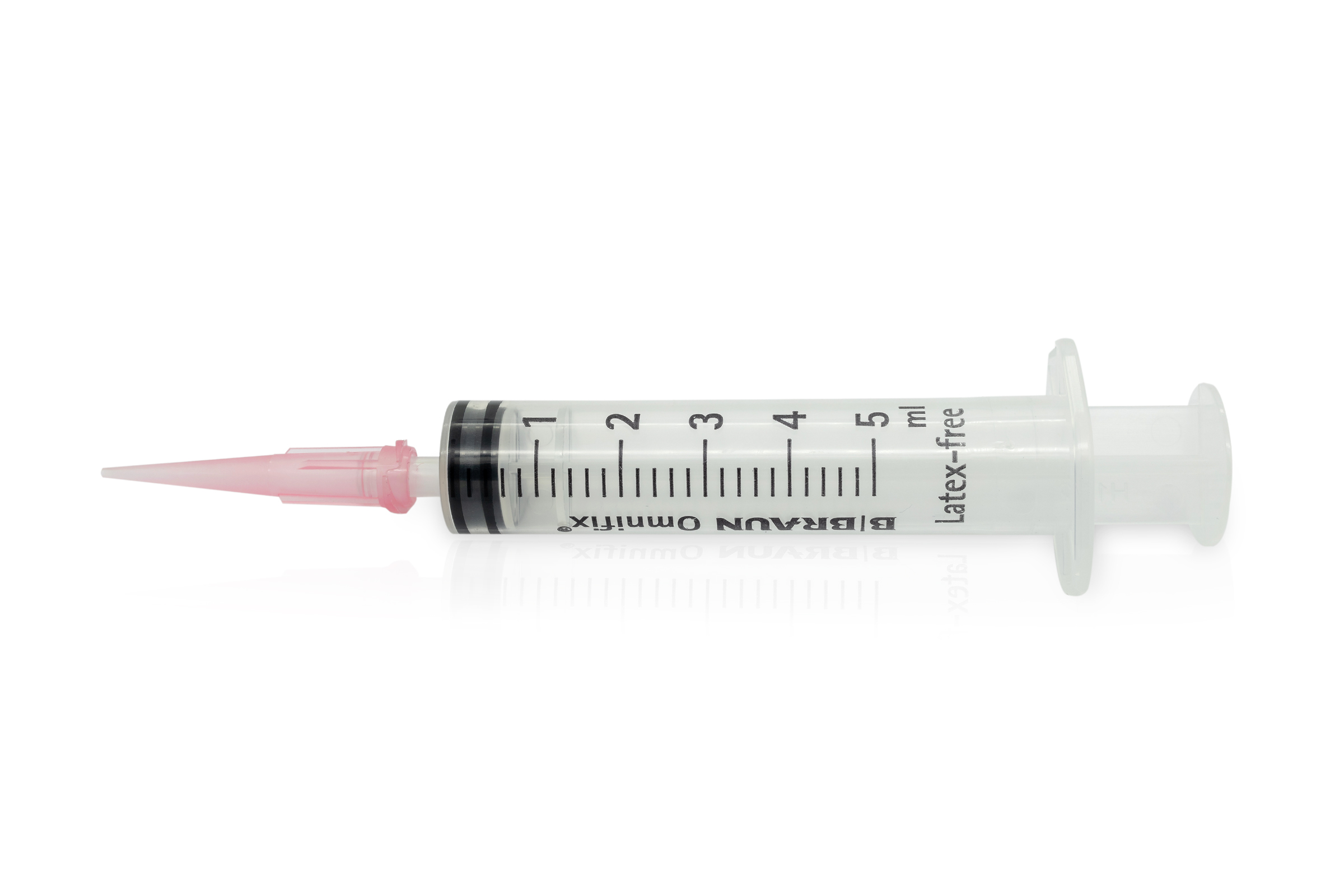

5 ml cartridge of NC5070 flux cream including plunger and 0.6 mm plastic dispensing needle.

Applications

Rework and repair in SMD assembly, component replacement, correcting solder bridges and refreshing oxidised terminations. The small pack suits benches with low consumption where a larger container would age before it is used up.

Note

For higher consumption the same formulation is available as a 200 ml tin under 0FMKANC32-200. The product is classified as dangerous goods class 3, so the safety data sheet applies.
