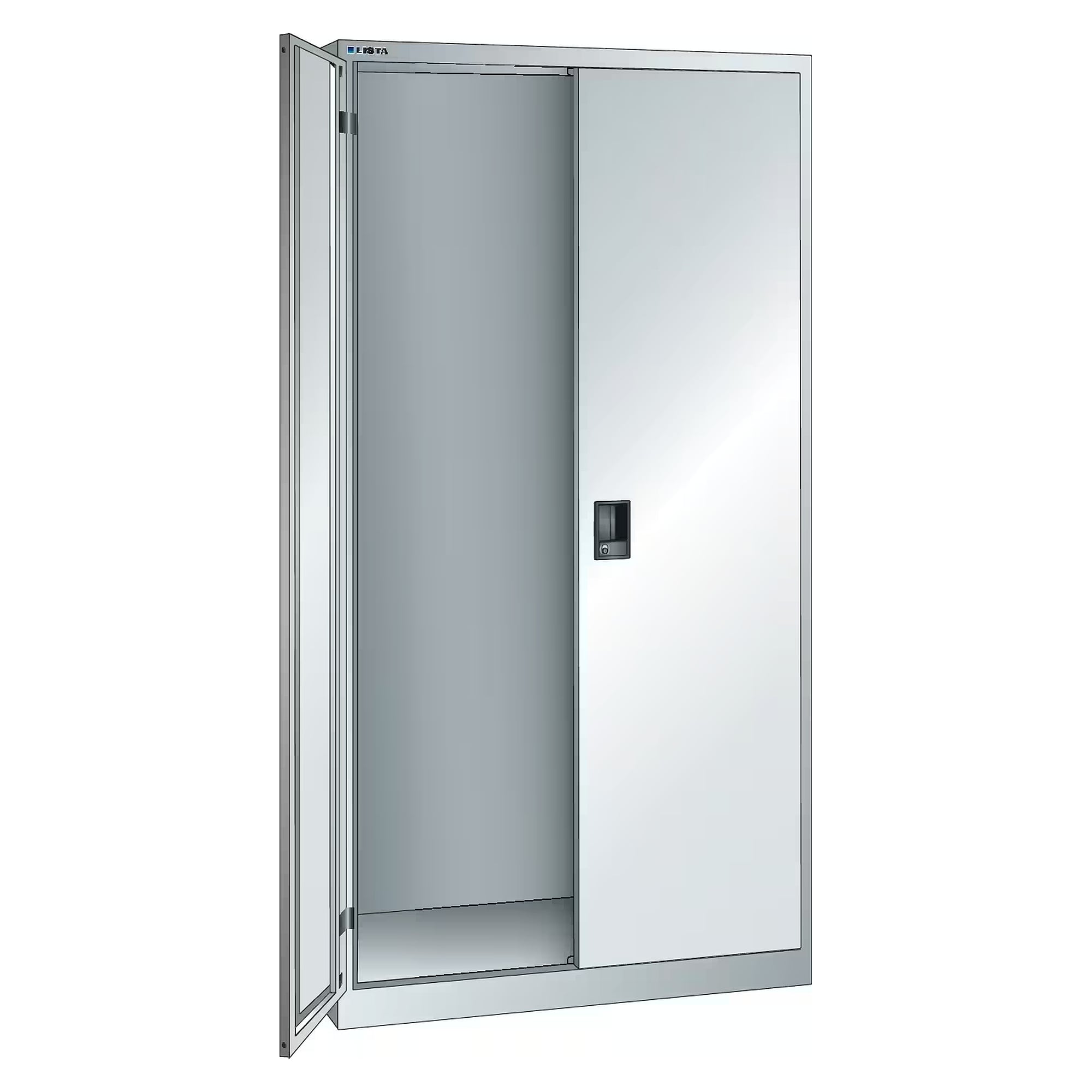

ESD double-door cabinet 1000x580x1950 mm, 4 adjustable shelves 60 kg each, solid steel doors, RFID Lock - Lista 96.520

Where staff already carry RFID ID badges, one badge is all it takes to open this cabinet. It measures 1000 x 580 x 1950 mm, has 1835 mm of clear inside height and 4 adjustable shelves rated for 60 kg each, intended for large component boxes, assemblies and test devices in a tall, deep cabinet.

Benefits

• Dissipative surface: all painted parts carry the dissipative paint coating developed by Lista, which drains charges in a controlled way.
• RFID Lock: opens with standard RFID badges, cards or tags via the transponder in the lock, or alternatively with a numeric code.
• Flush doors on hinges: the doors close flush with the housing and open to about 115 degrees. Hinge mounting is required for fitting drawers and pull-out shelves.
• 4 adjustable shelves: 30 mm thick, 60 kg capacity each, height adjustable to suit what you store.

Colours

Select the ESD colour when you order, from these options:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y
• Anthracite grey RAL 7016
• Orange NCS S 1080-Y40R

Use and combination

The cabinet is used in EPA areas of electronics production, in test bays, repair shops, labs and component stores. The dissipative effect requires the cabinet to be properly earthed. To match the 580 mm depth there are slotted adjustable shelves rated for 60 or 100 kg, a drawer with a 95 mm front and a pull-out shelf, both with full extension and 50 kg capacity.

Notes

According to Lista, drawers and pull-out shelves can be retrofitted. A galvanised M10 floor fixing that serves as anti-tip protection is included. The actual width is 1002 mm, which matters when planning for recesses.
