ESD frame crossbar Quattro/Duo, 1657x40x30 mm, single installation, worktop width 2000 mm, per pair - Lista 93.842
Pair of frame crossbars measuring 1657 x 40 x 30 mm for single installation with a 2000 mm worktop. It supports wide ESD worktops on Quattro and Duo legs. Also for worktops with an integrated scale.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
On 2000 mm wide Quattro and Duo benches, the frame crossbars span 1657 mm between the legs. The pair supports the worktop across its full width and offers fixing points for suspended cabinets and a keyboard drawer.
Benefits
- Fixed directly to the Quattro leg, supports the worktop between the legs
- Allows integrated scales to be used in the worktop
- Lista dissipative paint coating on all painted surfaces: charges are drained in a controlled way when the workstation system is earthed
Colours
This version is available in the following ESD colour, selected when you order:
- Anthracite grey RAL 7016
Use and combination

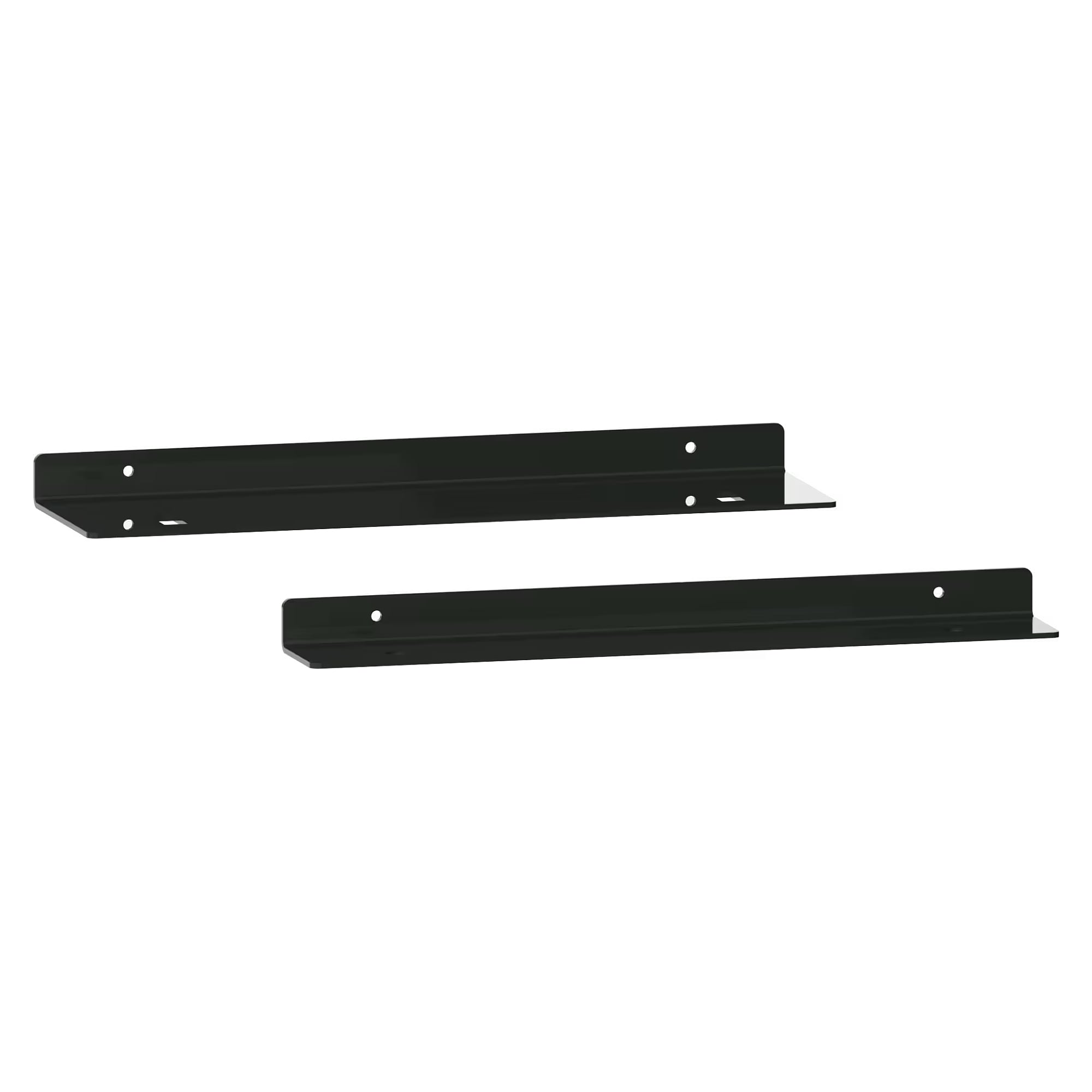

Part of the Lista Quattro workstation system for ESD workstations in electronics production, test, maintenance and lab. The crossbar pair fits free-standing benches with a 2000 mm worktop. With hanging adapters for 725 mm module depth, Lista cabinets in the 18x27E/18x36E or 27x27E/27x36E grids can be suspended under the worktop, and a keyboard drawer can be fitted as well.
Technical data
| Net weight | 3 kg |
|---|---|
| Width | 1657 mm |
| Depth | 40 mm |
| Worktop width | 2000 mm |
| Height | 30 mm |
| Sales unit | per pair |
| Version | for single installation |
| ESD protection | ESD compliant |
| Lista model | 93.842 |
| Weight | 3 kg |
| Manufacturer | Lista |
| Manufacturer Nr. | 93.842 |
| HS-Code | 94032080 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Switzerland |
| ESD version | ESD (antistatic) |
