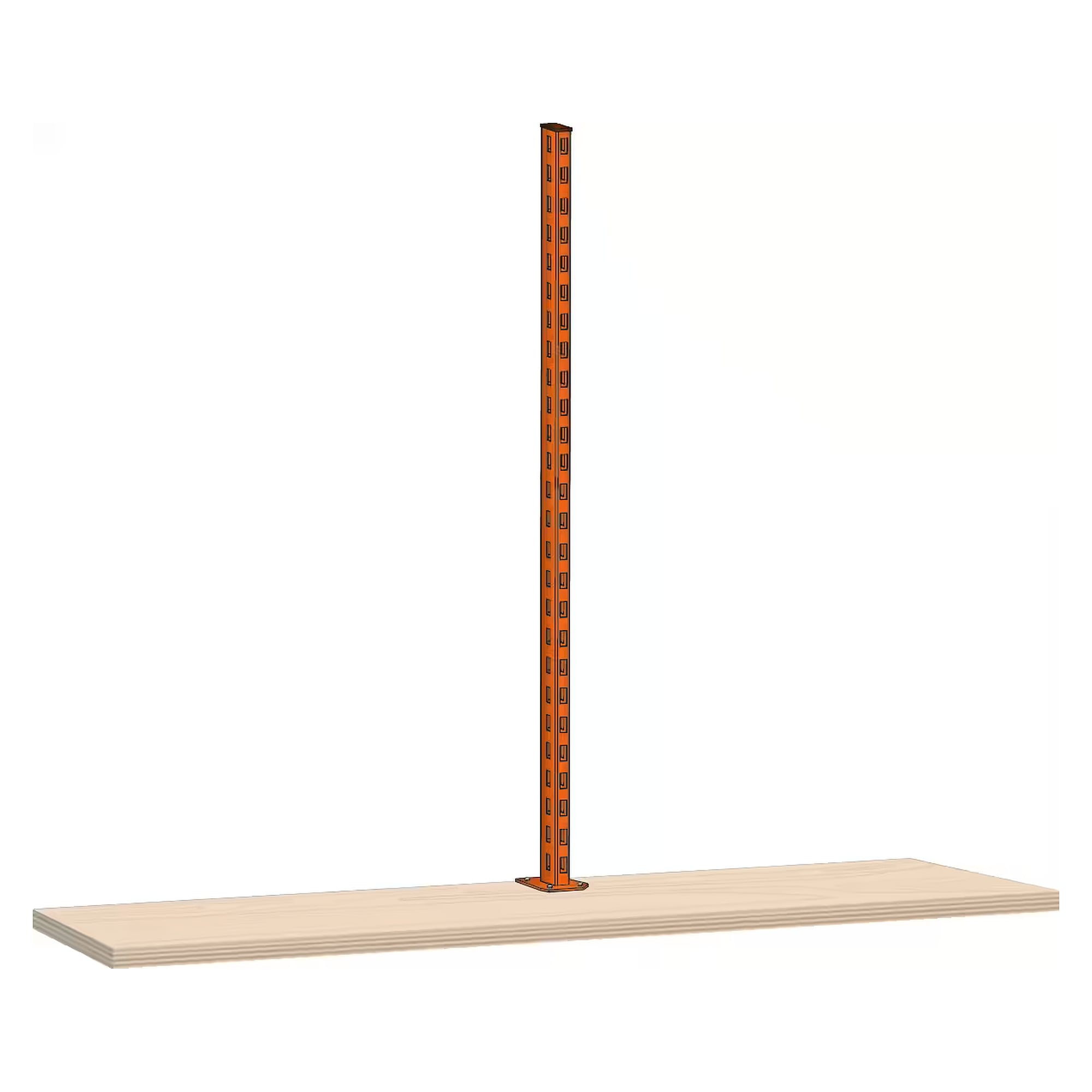

ESD support column 1050 mm for mounting on workbench tops, mounting position centre, profile 30x60 mm - Lista 92.393

Long workbenches divide the superstructure into several bays. This centre column, 1050 mm high, stands between the end columns and allows rear panels and cable trays of different widths to its left and right.

Benefits

• Dissipative: the dissipative paint coating developed by Lista drains charges, provided the superstructure is earthed.
• Perforated on four sides: add-on parts hook in largely without screws and can be moved in height.

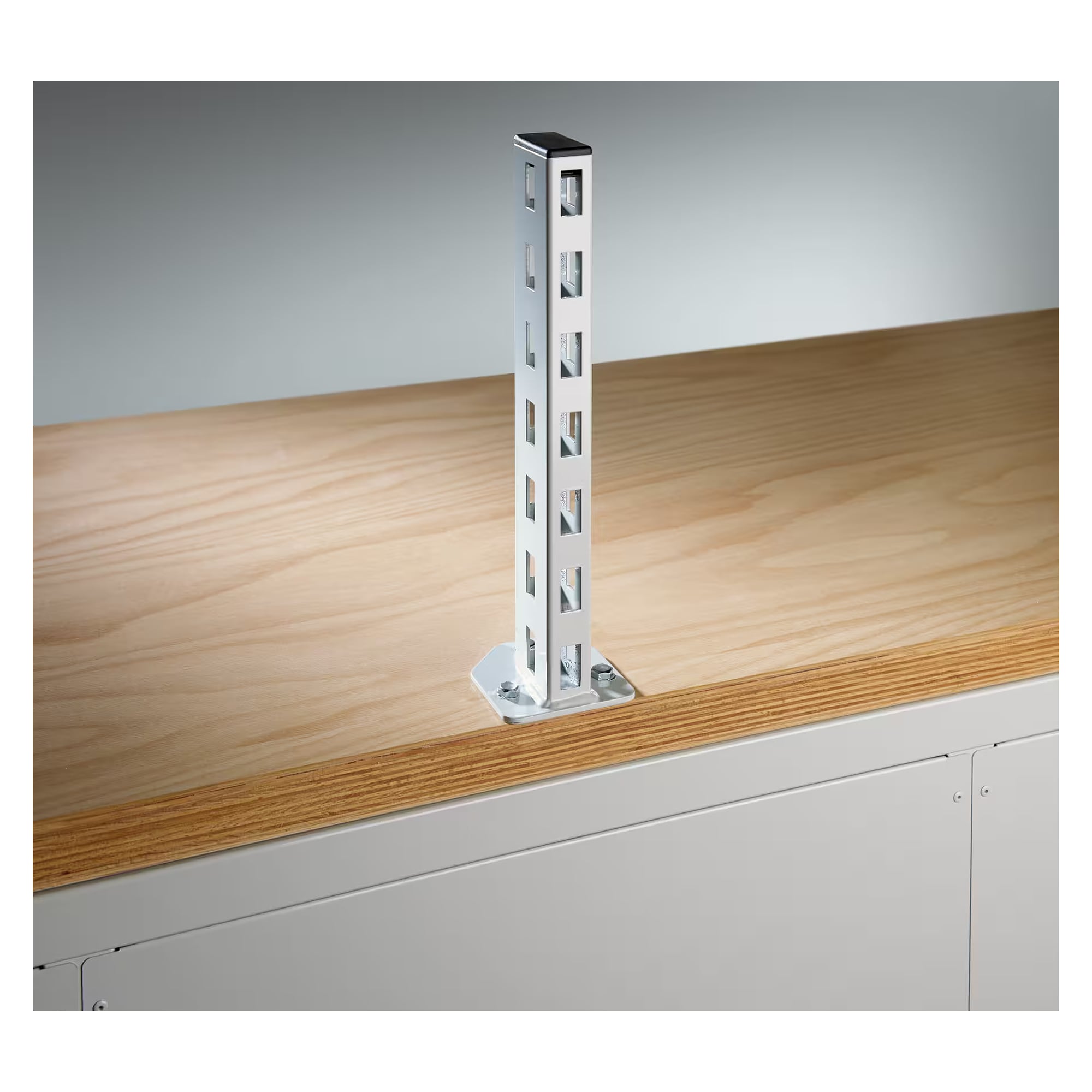

• Directly on the top: mounted on the worktop surface with the supplied fixing material, usable height 1050 mm.

Colours

Choose the ESD colour when ordering from the following options:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y
• Anthracite grey RAL 7016
• Orange NCS S 1080-Y40R

Use and combination

The support column is the basis for superstructures on ESD workbenches in electronics manufacturing, at test and repair stations and in labs. Plain or perforated rear panels, shelves and bin holders hook into it, with the cable tray at the back. It is combined with one left and one right outer column.

Notes

• According to Lista the column carries 100 kg, on Universal, Eterlux, synthetic resin and ABS tops 50 kg.
• Minimum top thickness 40 mm. Suitable only for workbench tops made of beech, multiplex, Universal, Eterlux, synthetic resin and ABS.
• When mounting on a 28 or 30 mm worktop of an electrically height-adjustable table (Lista Quattro, Duo, Solo), one of the three counter holders or counter plates is required.
