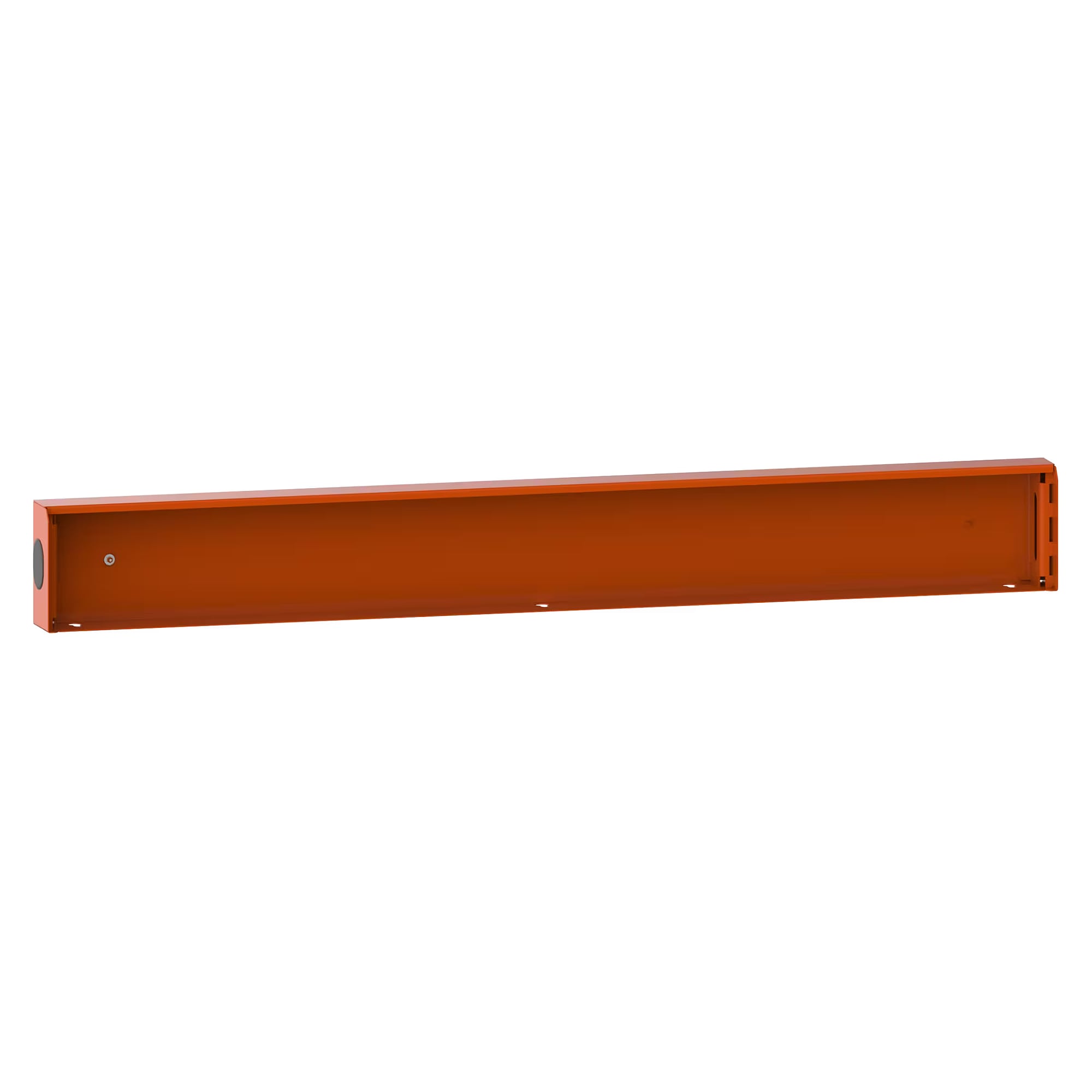

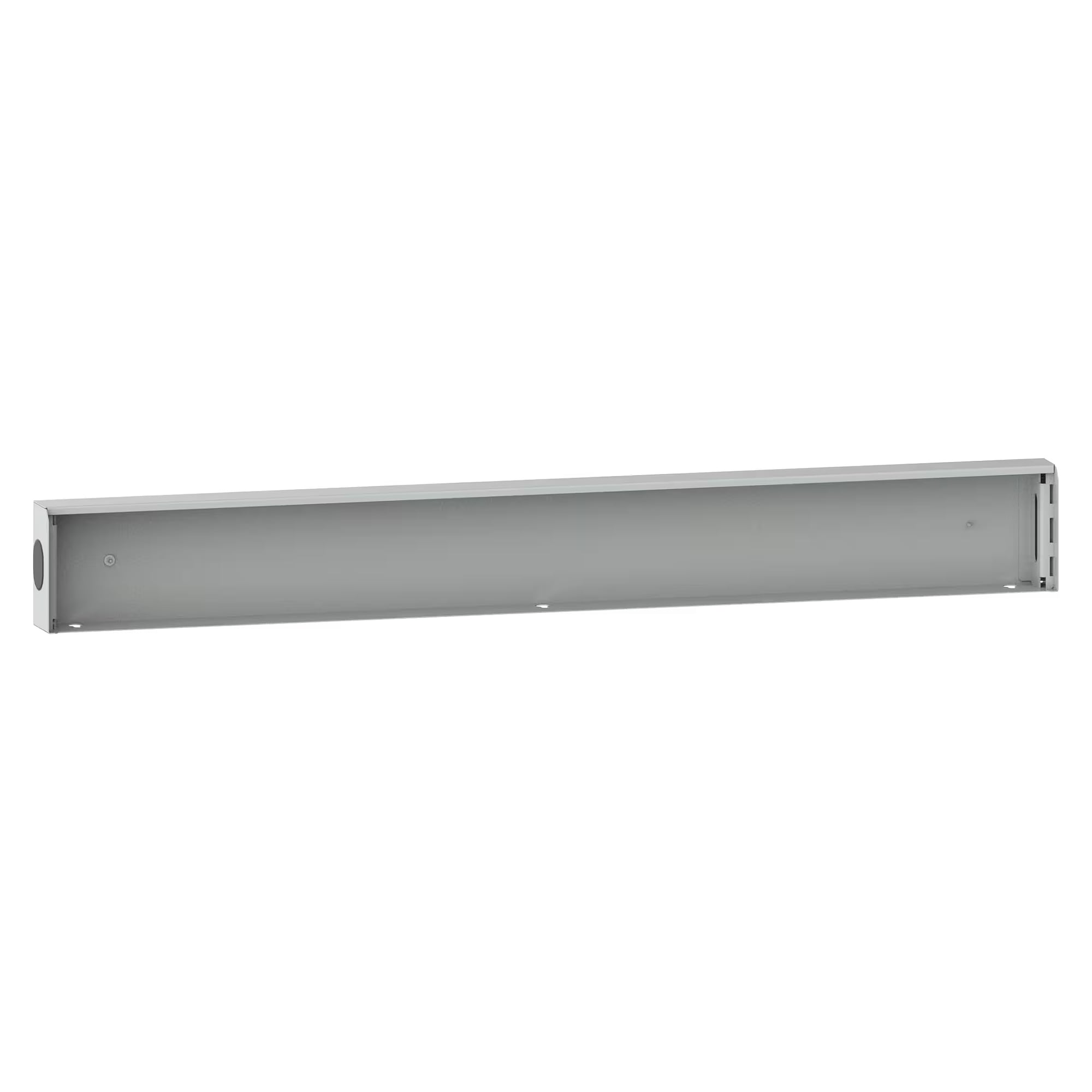

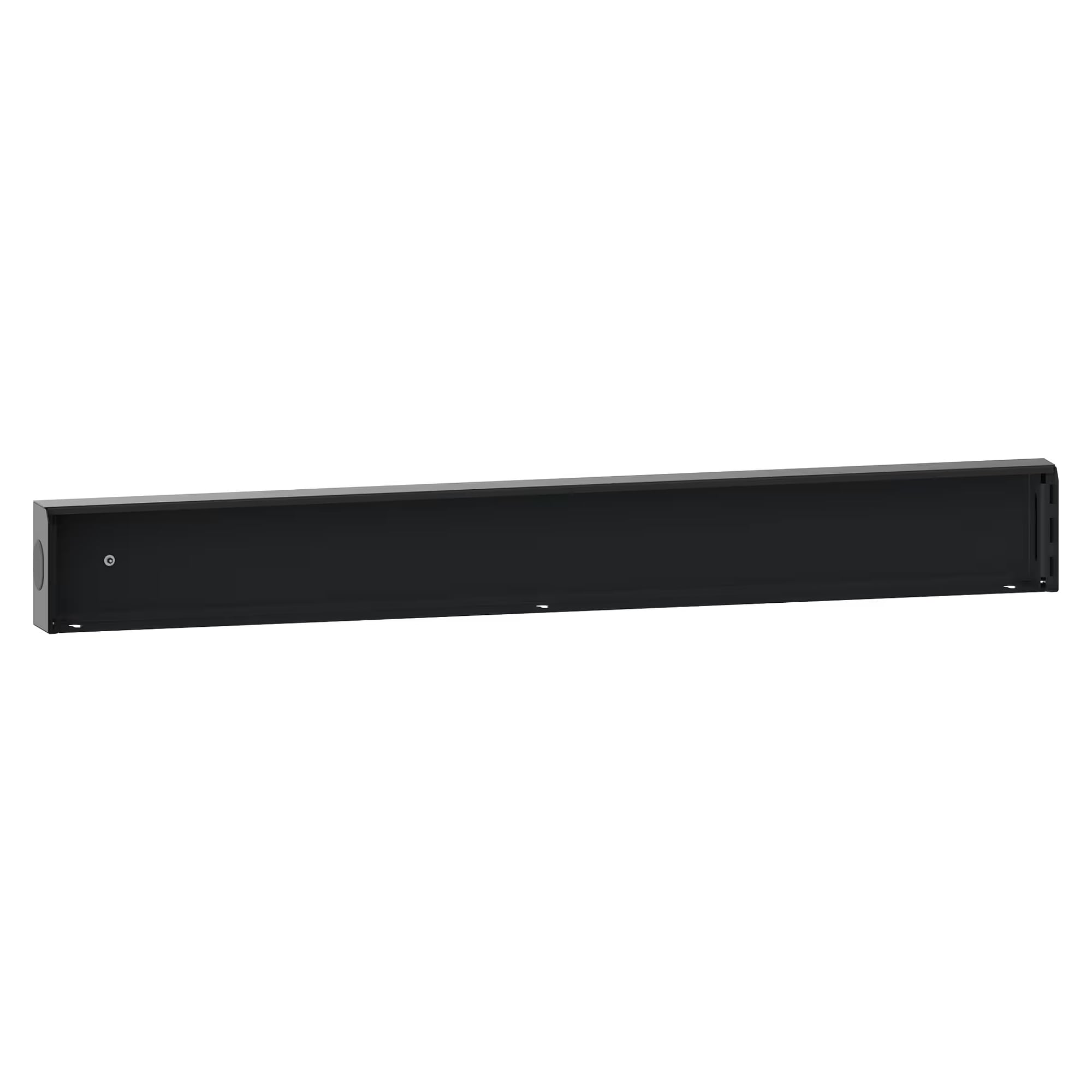

ESD base frame 1330 mm module width, 1328x75x161 mm, with cover flap for mounting on workbench tops - Lista 93.978

On a wide workbench without support columns, both working sides should have power at the rear edge. The 1328 mm wide base frame weighing 5 kg carries several energy back panels side by side for this.

Benefits

• Dissipative surface: The Lista dissipative paint coating discharges charges in a controlled way into the earthed workbench.
• Directly on the top: Mounted on the workbench top without support columns and holds the energy back panels.
• With cover flap: Closes the channel at the top, steel construction with 5 kg net weight.

Colours

Choose the ESD colour when ordering from the following options:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y
• Anthracite grey RAL 7016
• Orange NCS S 1080-Y40R

Use and combination

The base frame forms the housing of the energy channel on ESD workbenches with 1330 mm module width. The Lista energy channel covers, plain or with openings for power modules, are hooked in and ordered separately. Typical locations are assembly, test and repair stations in electronics manufacturing. Discharge takes place via the earthed workbench.
