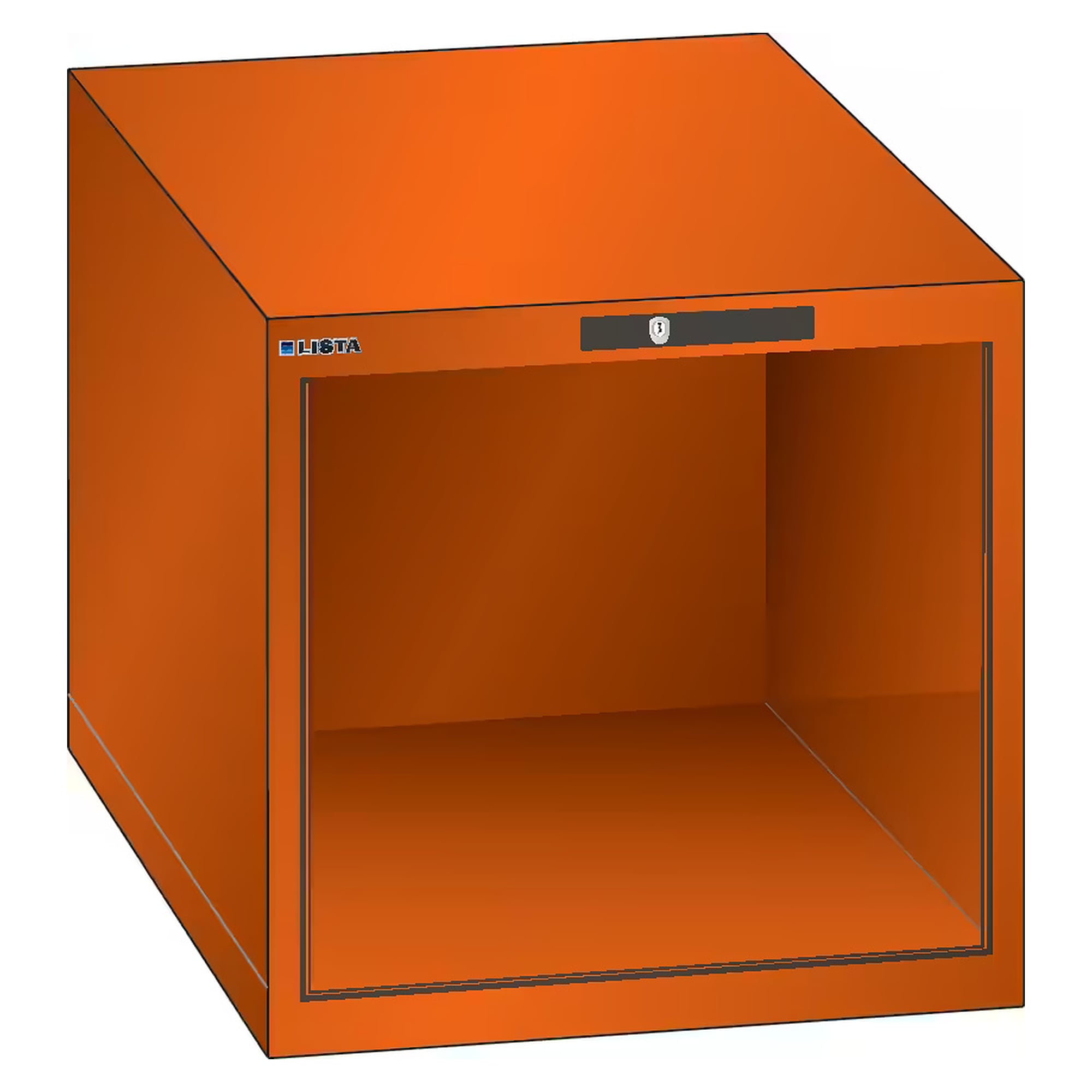

ESD cabinet housing 27x27E, 564x572x533 mm, clear height 450 mm, CODE Lock - Lista 93.250

Housing 93.250 is the carcass for an individually configured ESD cabinet: 564 mm wide, 572 mm deep and 533 mm high. You decide which drawers go inside, as they are ordered separately. A height of 533 mm keeps the cabinet compact while still leaving 450 mm of clear height for drawers. The CODE Lock opens with a numeric code, handy at stations shared by several people.

Benefits

• Dissipative surface: All painted surfaces carry the dissipative paint coating developed by Lista, which drains charges in a controlled way.
• 27x27E grid: external dimensions 564 x 572 x 533 mm and 450 mm clear height, freely fitted with drawers of different front heights.
• CODE Lock: A four to six digit numeric code replaces the key, so there are no keys to manage.

Colours

Choose the ESD colour when ordering from the following options:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y
• Anthracite grey RAL 7016
• Orange NCS S 1080-Y40R

Use and combination

Typical locations are EPAs in electronics production and EMS, test and repair stations, laboratories and component stores. The dissipative effect requires the cabinet to be properly earthed. The housing is fitted with Lista drawers in the 27x27E format. Matching items in the same format include an ESD synthetic resin cover plate as a top surface, a grooved mat for the top and a three or four sided roll-off edge, the latter with push bar. An ESD castor carrier pair for longitudinal travel turns it into a mobile cabinet.

Notes

For loading drawers and cabinets, follow Lista's assembly instructions and loading regulations. Load capacities apply to evenly distributed loads.
