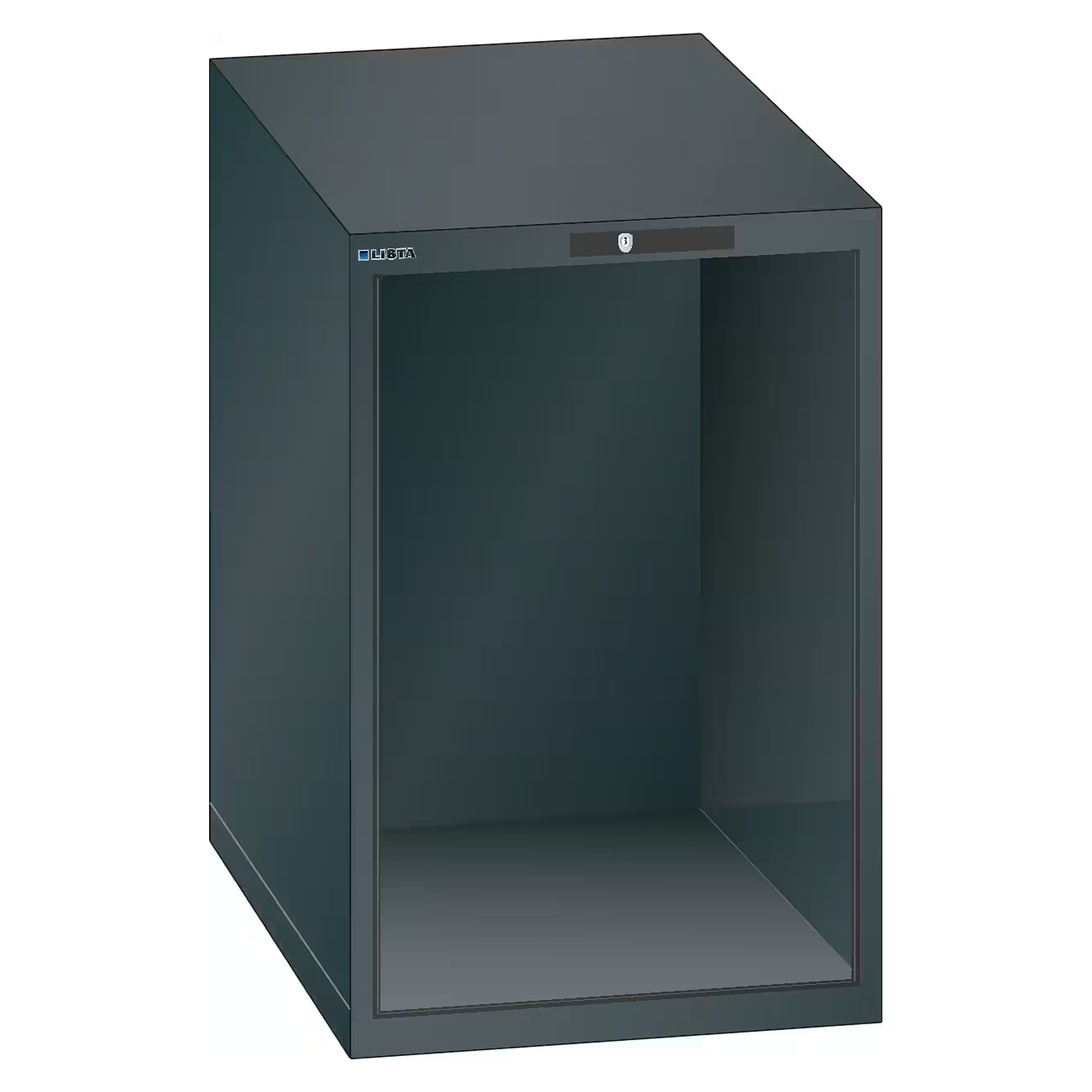

ESD cabinet housing 27x36E, 564x725x850 mm, clear height 750 mm, RFID Lock, without drawers - Lista 93.011

If you configure your own ESD drawer cabinet, this is the carcass to start from: a medium-width housing in the 27 x 36 E grid measuring 564 x 725 x 850 mm with 750 mm of clear height for drawers. At 850 mm high, the top becomes an extra surface next to the workstation once a cover plate is fitted. It locks by RFID badge or numeric code via RFID Lock.

Benefits

• Dissipative surface: All painted parts carry the dissipative paint coating developed by Lista, which drains charges in a controlled way.
• RFID Lock: RFID Lock opens with a numeric code or with standard RFID badges, cards or tags, operated manually.
• Free layout: 750 mm clear height in the 27 x 36 E grid, you decide how the drawers are arranged.

Colours

Choose the ESD colour when ordering from the following options:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y
• Anthracite grey RAL 7016
• Orange NCS S 1080-Y40R

Use and combination

The housing is supplied without drawers, which are ordered separately. Typical locations are EPA areas in electronics production and at EMS providers, test and repair stations, labs and component stores. The dissipative effect depends on the cabinet being properly earthed. Matching accessories in the 27x36E format include an ESD resin cover plate as a work surface, a grooved mat for the top, a three-sided edge rim, a four-sided edge rim with push bar and pairs of castor carriers with ESD rubber wheels to make the housing mobile.

Notes

Follow Lista's assembly instructions and loading guidelines when loading drawers and drawer cabinets. Load capacity applies to an evenly distributed load.
