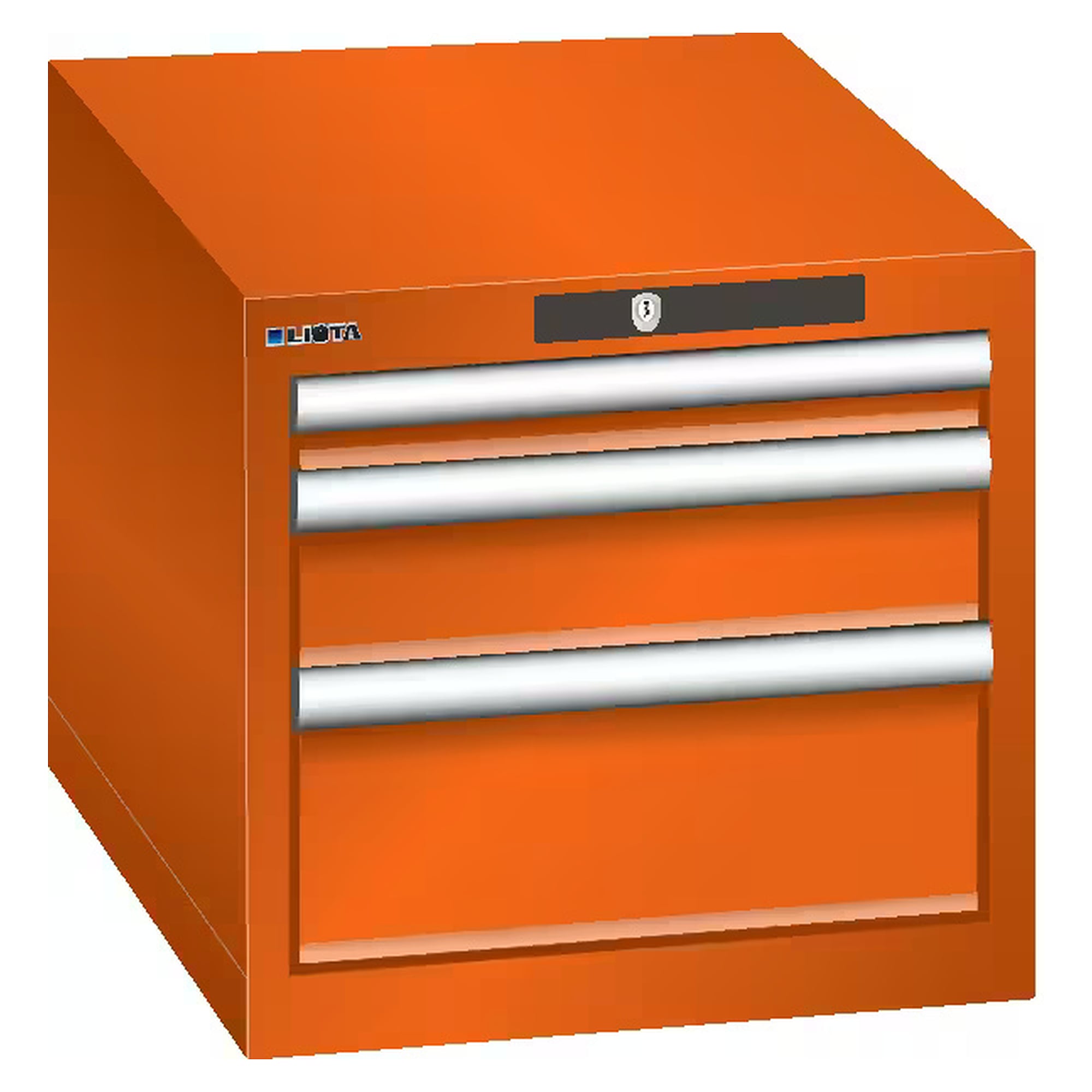

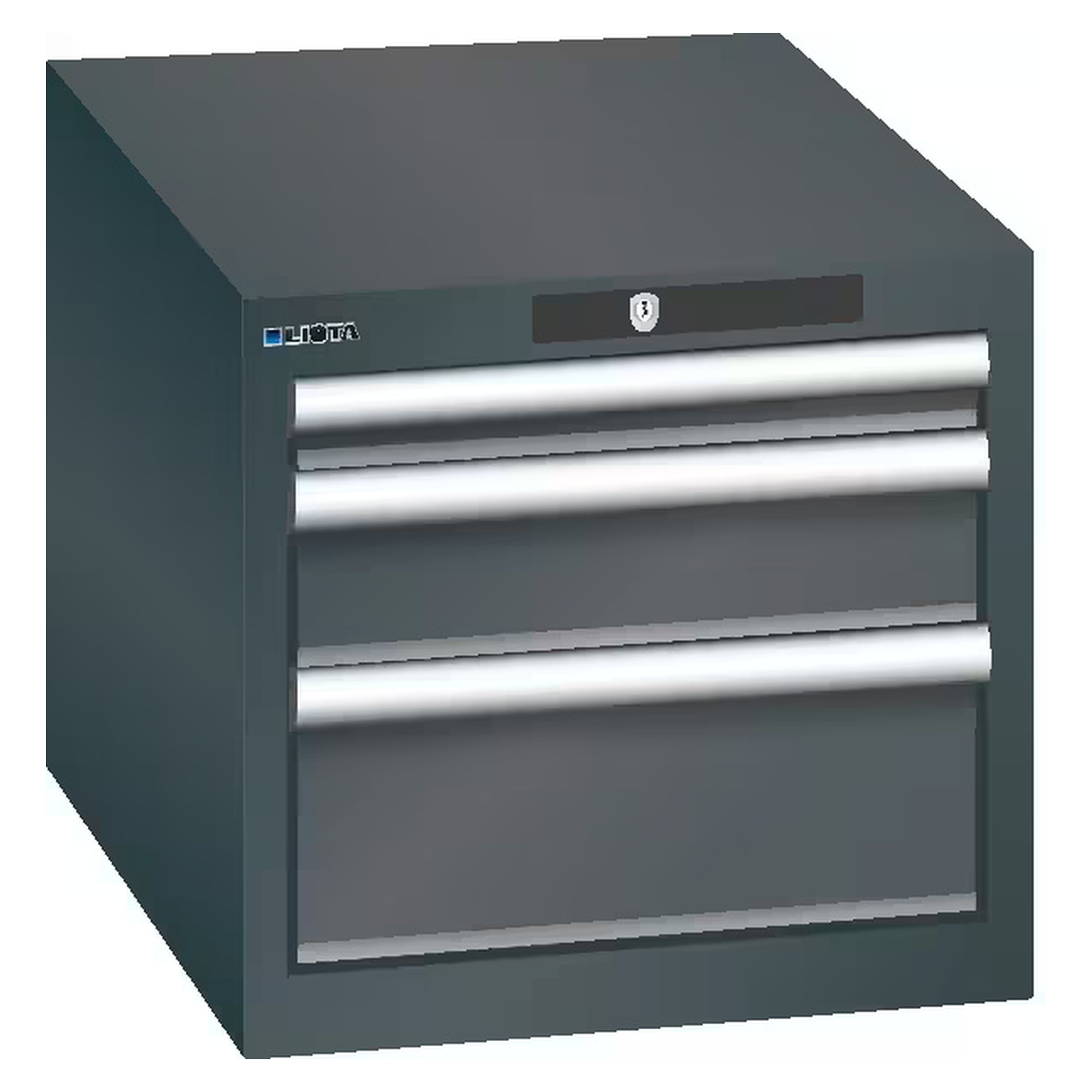

ESD drawer cabinet 18x27E, 411x572x383 mm, 3 drawers 1x50/1x100/1x150, 75 kg, AUTO Lock - Lista 93.087

A narrow 411 mm cabinet with the most convenient locking: the AUTO Lock opens and relocks automatically via RFID badge or code. Three drawers (1x50/1x100/1x150 mm) carry 75 kg each.

Benefits

• Dissipative surface: All painted parts carry the dissipative paint coating developed by Lista, which drains charges in a controlled way.
• AUTO Lock: opens via RFID badge or numeric code and locks automatically. With the optional Lista Access software, time profiles can be stored to limit when access is possible.
• 75 kg per drawer: usable area of 306 x 459 mm per drawer.
• Single-drawer interlock: as standard only one drawer can be opened at a time, which keeps the cabinet stable when drawers are pulled out.

Colours

Choose the ESD colour when ordering from the following options:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y
• Anthracite grey RAL 7016
• Orange NCS S 1080-Y40R

Use and combination

Typical locations are EPA areas in electronics production and at EMS providers, test and repair stations, laboratories and component stores. The dissipative effect requires the cabinet to be properly earthed. Lista partitioning material in the matching grid can be added to divide the drawers.

Notes

For loading drawers and cabinets, follow Lista's assembly instructions and loading rules. The stated load capacity applies to an evenly distributed load.
