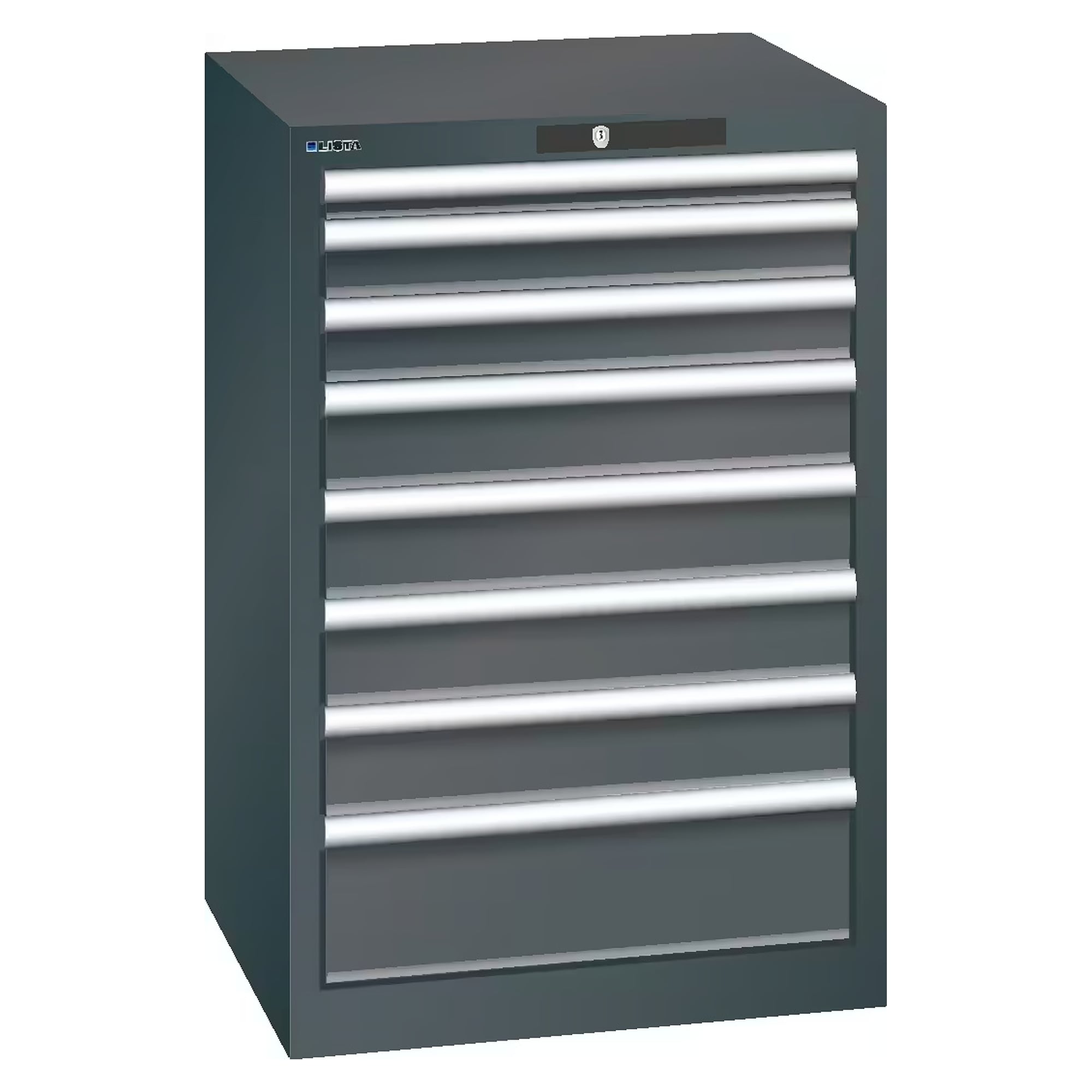

ESD drawer cabinet 27x27E, 564x572x850 mm, 8 drawers 1x50/2x75/4x100/1x150, 75 kg, KEY Lock - Lista 93.034

Eight drawers on a compact 564 x 572 mm footprint let you sort small parts, tools and spares by front heights 1x50/2x75/4x100/1x150 mm. Each drawer carries 75 kg, and the cabinet locks with a conventional key.

Benefits

• Dissipative surface: All painted parts carry the dissipative paint coating developed by Lista, which drains charges in a controlled way.
• KEY Lock: Lista's standard lock with interchangeable cylinder, opened and closed manually by key.
• 75 kg per drawer: usable area of 459 x 459 mm per drawer.
• Single-drawer interlock: as standard only one drawer can be opened at a time, which keeps the cabinet stable when drawers are pulled out.

Colours

Choose the ESD colour when ordering from the following options:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y
• Anthracite grey RAL 7016
• Orange NCS S 1080-Y40R

Use and combination

Typical locations are EPA areas in electronics production and at EMS providers, test and repair stations, laboratories and component stores. The dissipative effect requires the cabinet to be properly earthed. Matching items in the 27 x 27 E format include an ESD resin cover plate that closes off the top and serves as a work surface, a grooved mat for the top and a rim on three sides so nothing rolls off.

Notes

For loading drawers and cabinets, follow Lista's assembly instructions and loading rules. The stated load capacity applies to an evenly distributed load.
