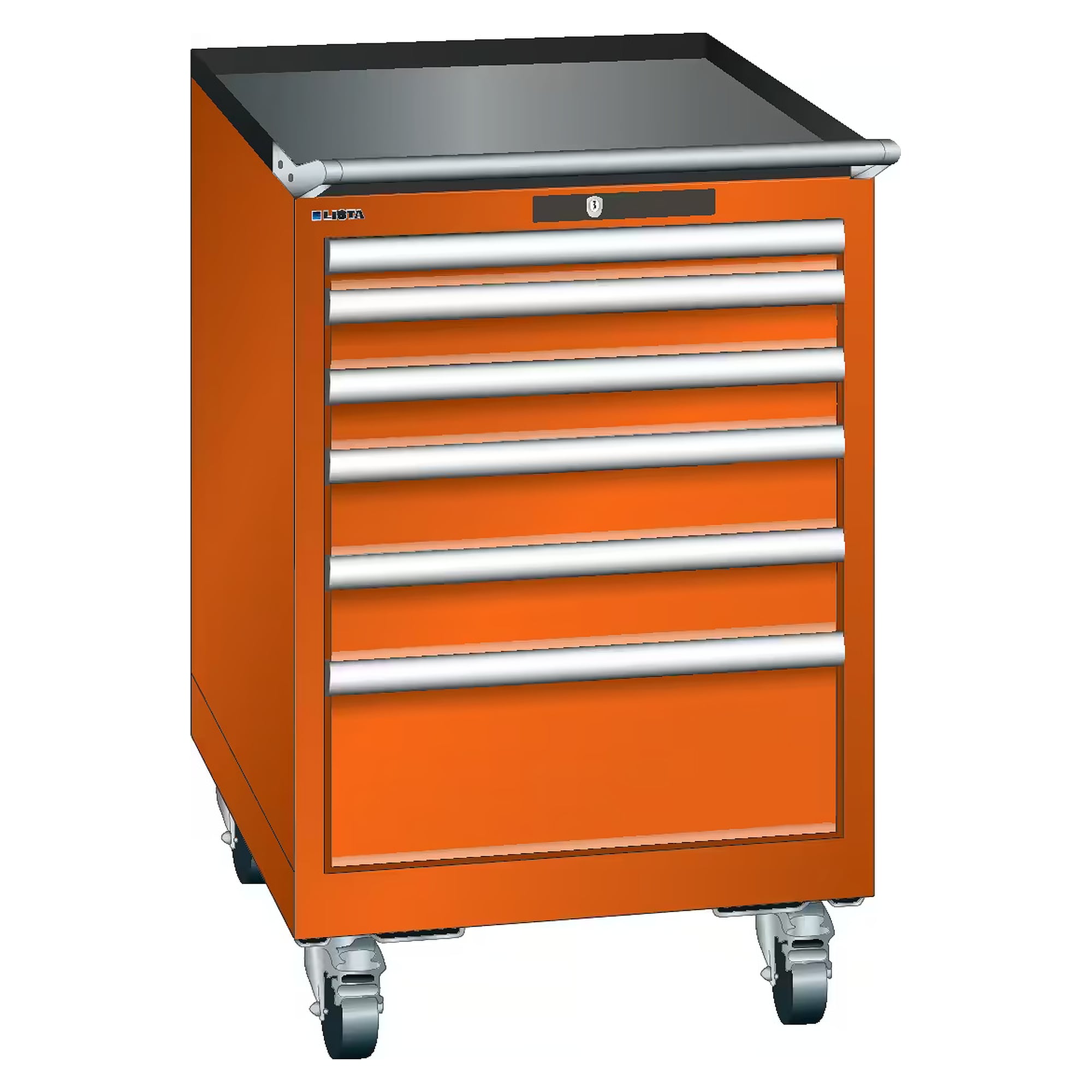

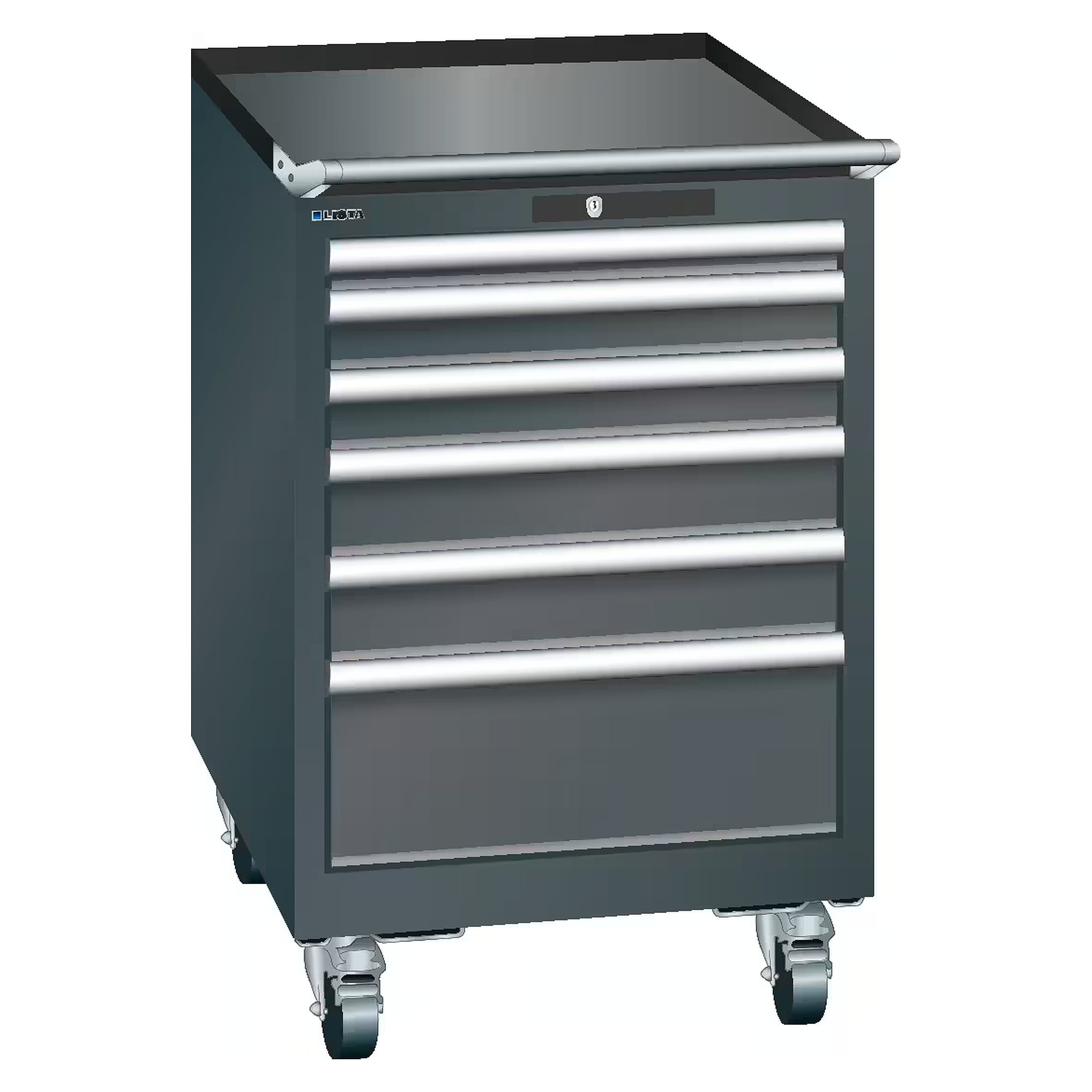

ESD mobile drawer cabinet 27x27E, 564x572x890 mm, 6 drawers 1x50/2x75/2x100/1x200, 75 kg, rubber castors Ø100 mm, KEY Lock - Lista 95.055

For PCBs, components and hand tools that travel with the job from station to station, this mobile Lista cabinet offers 6 drawers with 459 x 459 mm usable area each. A four-sided edge rim with grooved mat turns the top into a storage surface. It locks the classic way with the KEY Lock, Lista's standard lock with interchangeable cylinder and key.

Benefits

• Dissipative surface: All painted parts carry the dissipative paint coating developed by Lista, which drains charges in a controlled way.

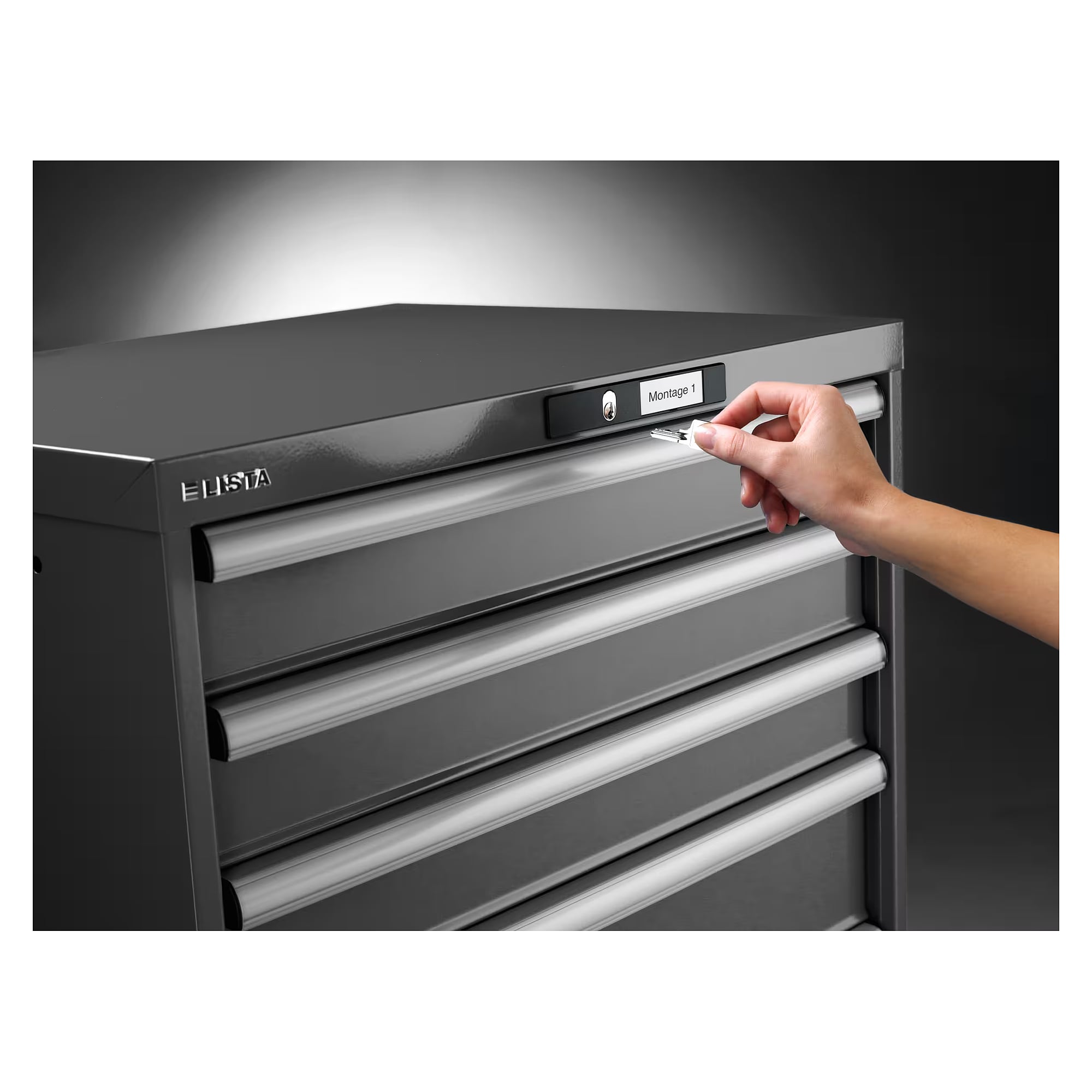

• KEY Lock: Opened and closed manually by key, the cylinder is interchangeable.

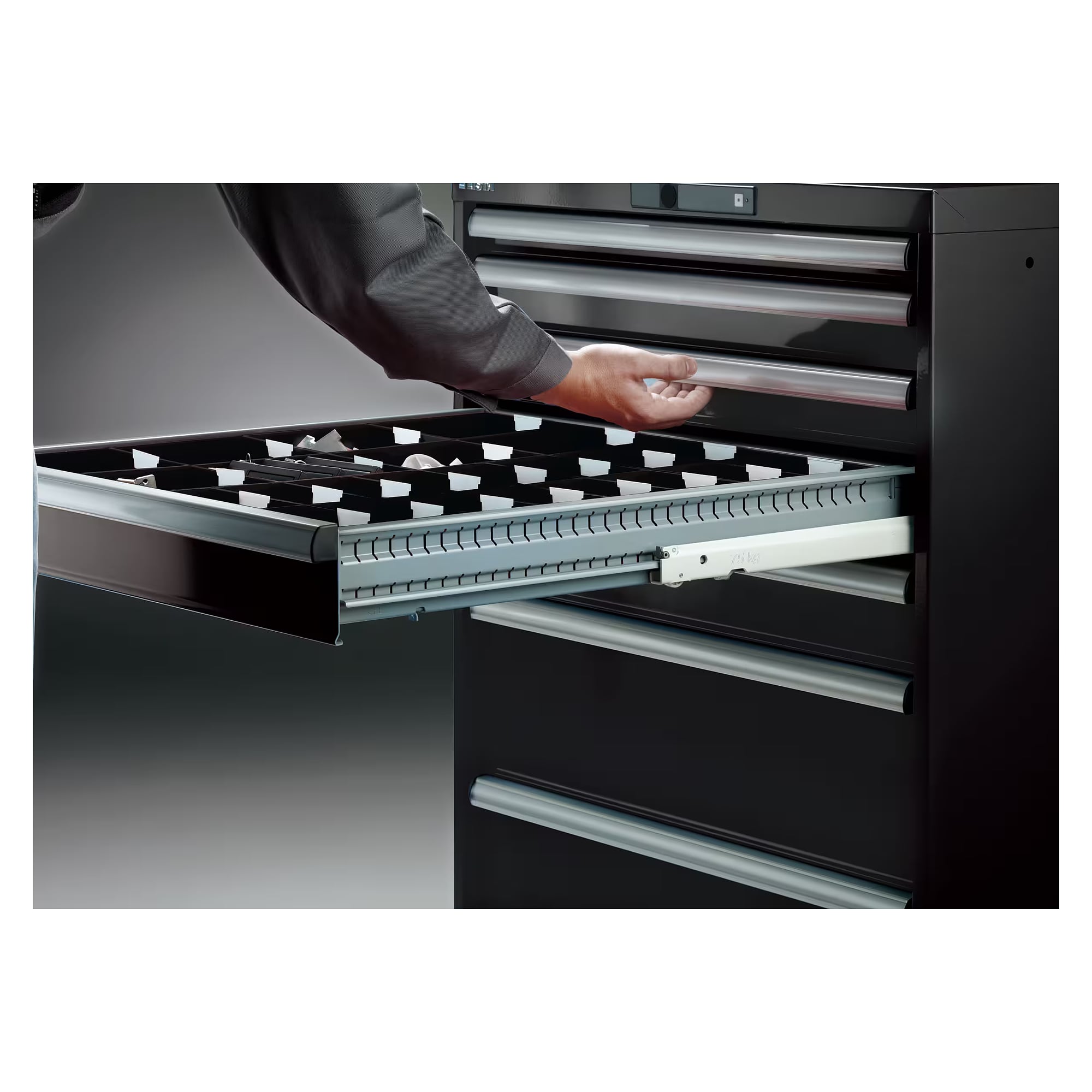

• 75 kg per drawer: usable area of 459 x 459 mm per drawer, inside dimensions 450 x 450 mm.
• Single safety catch on the right: The right-hand catch releases with one hand and prevents drawers from opening unintentionally, even when the cabinet is unlocked.
• Running gear included: castor carrier pair with rubber castors Ø 100 mm rated for 400 kg, push bar and edge rim with grooved mat are supplied.

Colours

Choose the ESD colour when ordering from the following options:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y
• Anthracite grey RAL 7016
• Orange NCS S 1080-Y40R

Use and combination

The cabinet serves as mobile storage in EPA areas of electronics production, at EMS providers, at test and repair stations and in maintenance. The dissipative effect requires proper earthing, which deserves particular attention when the cabinet is moved between workstations. The drawers can be subdivided with Lista partitioning material.

Notes

Follow Lista's assembly instructions and loading guidelines when loading the drawers and the cabinet. The stated load capacity applies to an evenly distributed load.
