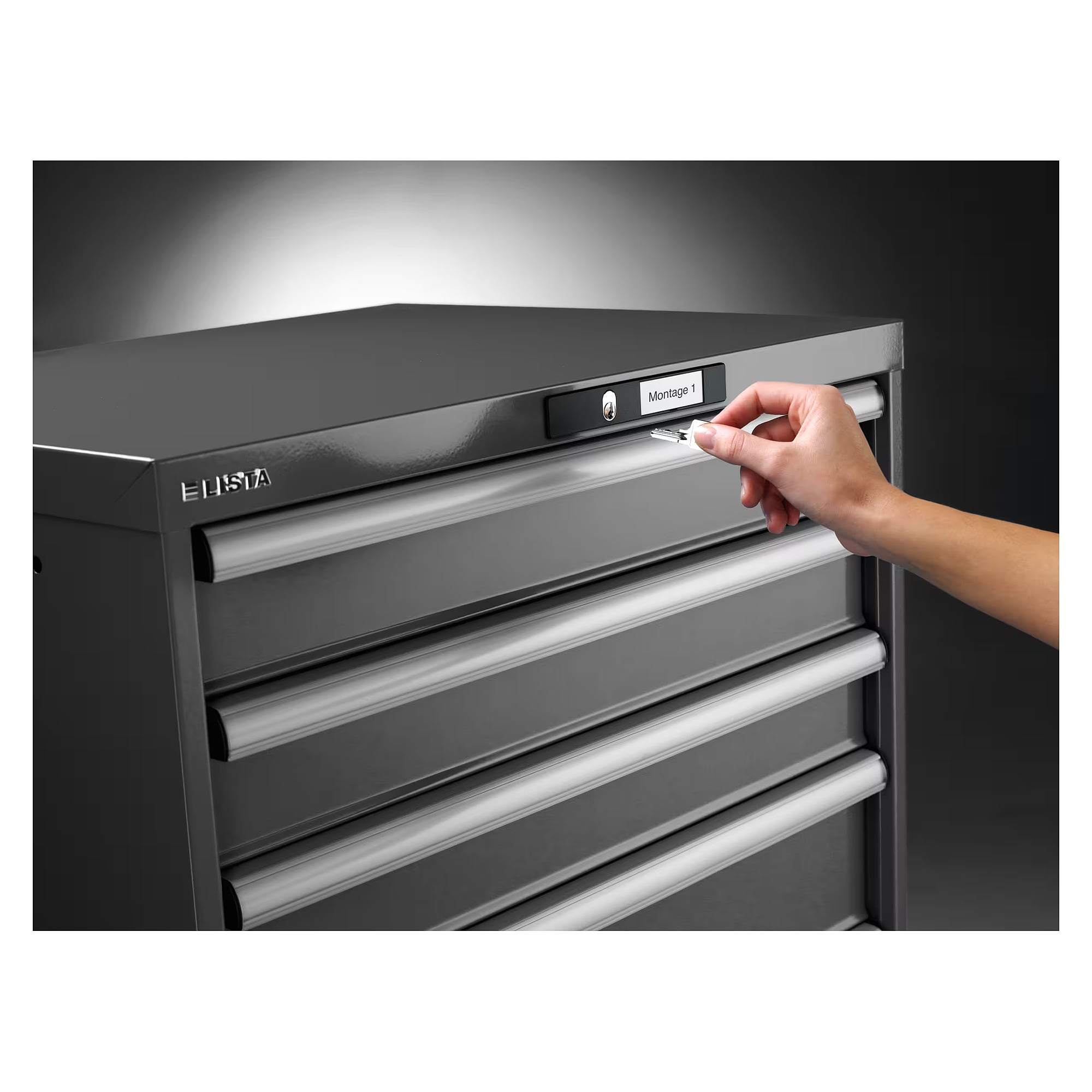

ESD drawer cabinet 27x36E, 564x725x800 mm, 4 drawers 2x100/1x200/1x300, 75 kg, KEY Lock - Lista 95.083

In test and repair areas, quick access to repair parts and tool sets matters. This ESD cabinet, 800 mm high, spreads them across 4 drawers (2x100/1x200/1x300 mm). It locks the classic way with the KEY Lock, Lista's standard lock with interchangeable cylinder and key. The 100 mm drawers have room for hand tools and component boxes, while the 300 mm drawer takes tall devices and cases.

Benefits

• Dissipative surface: All painted parts carry the dissipative paint coating developed by Lista, which drains charges in a controlled way.
• KEY Lock: Opened and closed manually by key, the cylinder is interchangeable.
• 75 kg per drawer: usable area of 459 x 612 mm per drawer, inside dimensions 450 x 600 mm.
• Single-drawer interlock: As standard only one drawer can be opened at a time, which keeps the cabinet stable when drawers are pulled out.

Colours

Choose the ESD colour when ordering from the following options:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y
• Anthracite grey RAL 7016
• Orange NCS S 1080-Y40R

Use and combination

Typical locations are EPA areas in electronics production and at EMS providers, test and repair stations, labs and component stores. The dissipative effect depends on the cabinet being properly earthed. Matching accessories in the 27 x 36 E format include an ESD resin cover plate that closes the top, a grooved mat for the top surface and a three-sided edge rim that keeps parts from rolling off.

Notes

Follow Lista's assembly instructions and loading guidelines when loading the drawers and the cabinet. The stated load capacity applies to an evenly distributed load.
