ESD drawer cabinet 27x36E, 564x725x800 mm, 7 drawers 2x75/4x100/1x150, 75 kg, KEY Lock - Lista 95.104

7 drawers with front heights of 2 x 75, 4 x 100, 1 x 150 mm in a housing 800 mm high: this Lista cabinet keeps test equipment and spare parts organised right at the ESD workstation. The KEY Lock with interchangeable cylinder secures the cabinet by key, and the cylinder can be exchanged if needed. The 75 mm drawers take small parts in bins, and the 150 mm drawers take taller parts and tool sets.

Benefits

• Dissipative surface: All painted parts carry the dissipative paint coating developed by Lista, which drains charges in a controlled way.
• KEY Lock: Opened and closed manually by key, the cylinder is interchangeable.
• 75 kg per drawer: usable area of 459 x 612 mm per drawer, inside dimensions 450 x 600 mm.
• Single-drawer interlock: As standard only one drawer can be opened at a time, which keeps the cabinet stable when drawers are pulled out.

Colours

Choose the ESD colour when ordering from the following options:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y

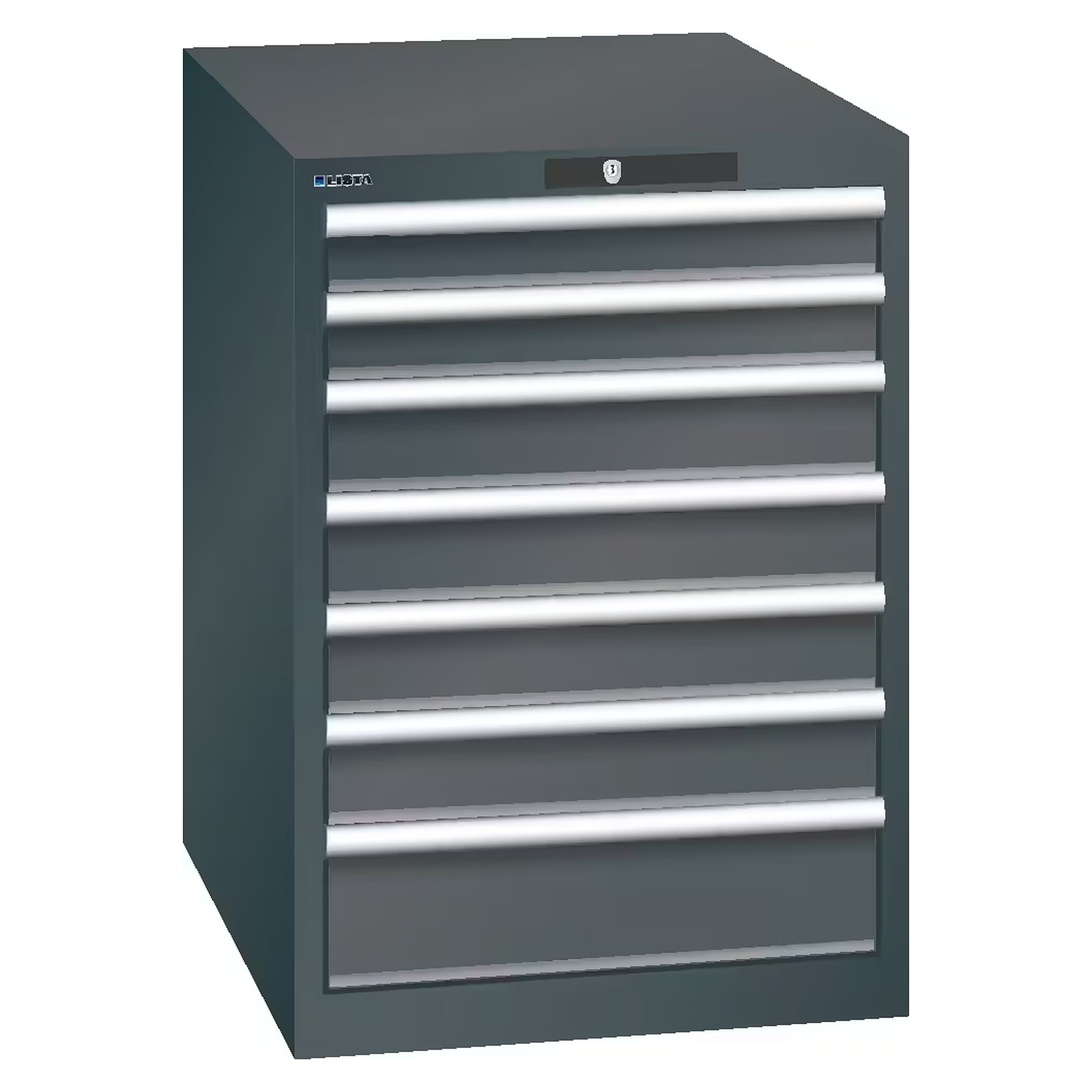

• Anthracite grey RAL 7016

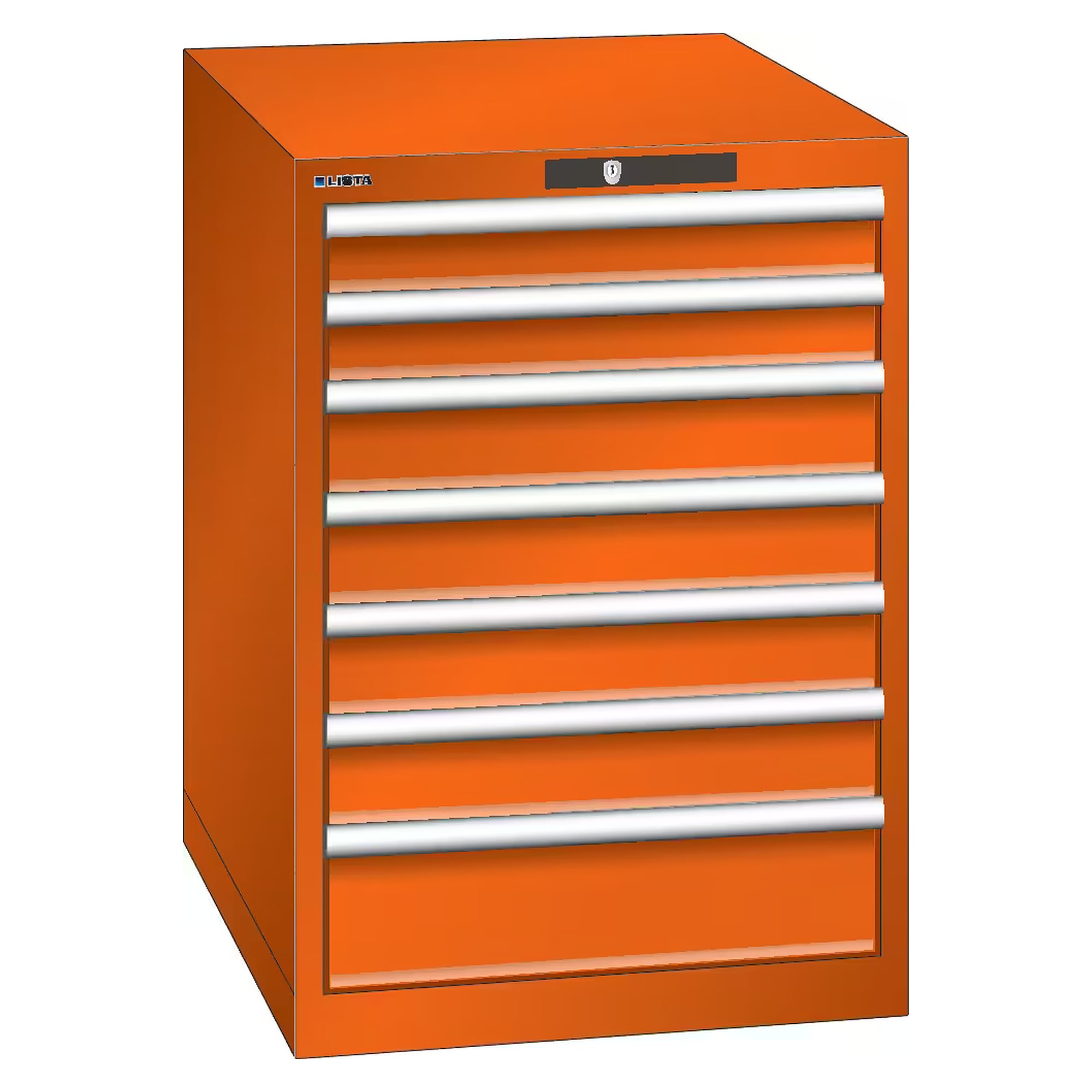

• Orange NCS S 1080-Y40R

Use and combination

Typical locations are EPA areas in electronics production and at EMS providers, test and repair stations, labs and component stores. The dissipative effect depends on the cabinet being properly earthed. Matching accessories in the 27 x 36 E format include an ESD resin cover plate that closes the top, a grooved mat for the top surface and a three-sided edge rim that keeps parts from rolling off.

Notes

Follow Lista's assembly instructions and loading guidelines when loading the drawers and the cabinet. The stated load capacity applies to an evenly distributed load.
