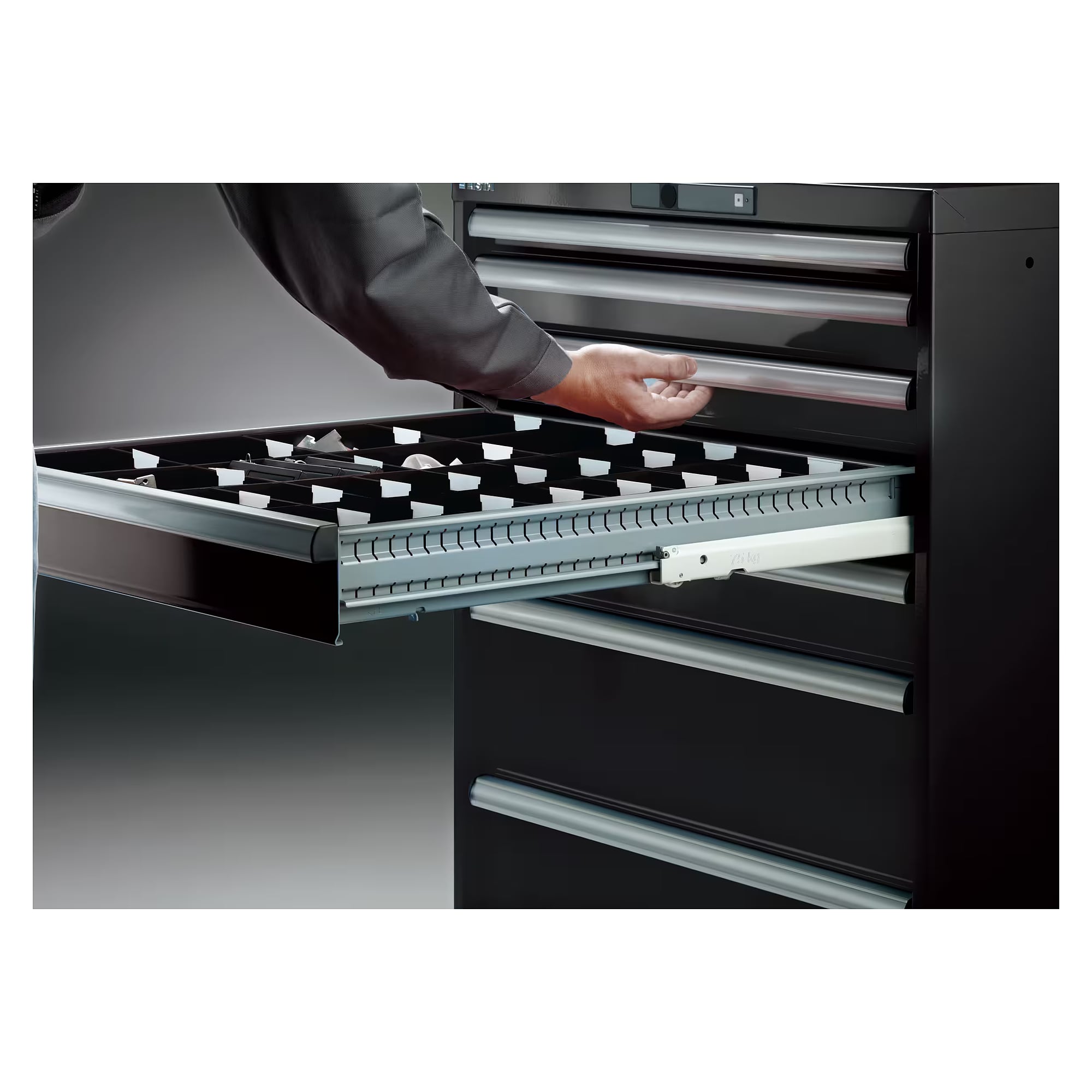

ESD drawer cabinet 27x36E, 564x725x800 mm, 5 drawers 1x50/2x100/1x150/1x300, 75 kg, RFID Lock - Lista 95.094

Components within reach and still secured: the 564 x 725 x 800 mm cabinet in the 27 x 36 E grid offers 5 drawers that take 75 kg each. The RFID Lock opens with an RFID badge, card or tag and also by numeric code, so existing staff badges can be used. The shallow 50 mm drawer suits small parts and documents, while the 300 mm drawer takes tall devices and cases.

Benefits

• Dissipative surface: All painted parts carry the dissipative paint coating developed by Lista, which drains charges in a controlled way.
• RFID Lock: A transponder in the lock reads standard RFID badges, cards and tags, alternatively a numeric code opens it.
• 75 kg per drawer: usable area of 459 x 612 mm per drawer, inside dimensions 450 x 600 mm.
• Single-drawer interlock: As standard only one drawer can be opened at a time, which keeps the cabinet stable when drawers are pulled out.

Colours

Choose the ESD colour when ordering from the following options:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y
• Anthracite grey RAL 7016
• Orange NCS S 1080-Y40R

Use and combination

Typical locations are EPA areas in electronics production and at EMS providers, test and repair stations, labs and component stores. The dissipative effect depends on the cabinet being properly earthed. Matching accessories in the 27 x 36 E format include an ESD resin cover plate that closes the top, a grooved mat for the top surface and a three-sided edge rim that keeps parts from rolling off.

Notes

Follow Lista's assembly instructions and loading guidelines when loading the drawers and the cabinet. The stated load capacity applies to an evenly distributed load.
