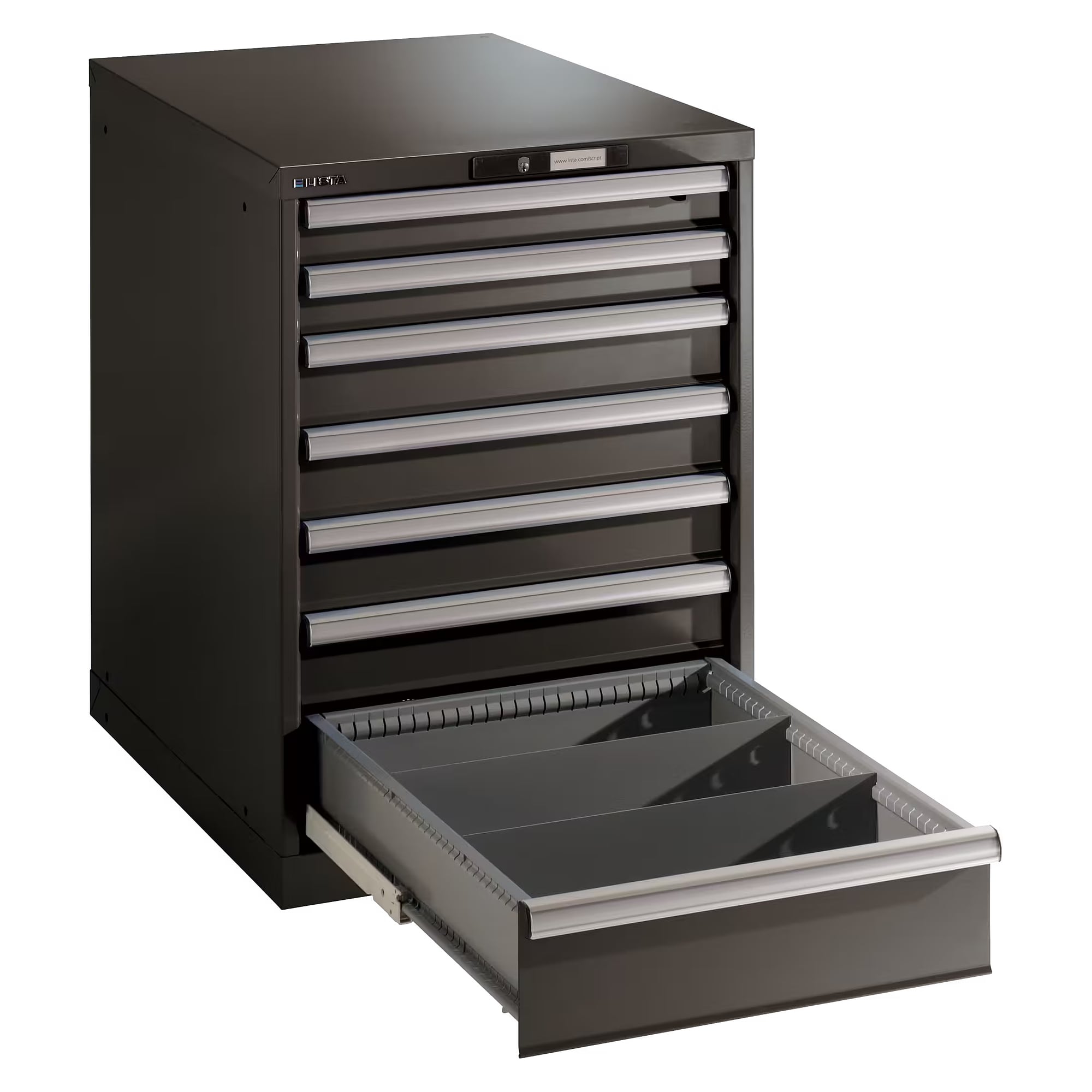

ESD drawer cabinet 27x36E, 564x725x800 mm, 7 drawers 2x75/4x100/1x150, 75 kg, RFID Lock - Lista 93.076

Four drawers with a 100 mm front height form the core of this cabinet, complemented by two shallow ones and one 150 mm drawer (2x75/4x100/1x150 mm). Component boxes and tools find room, and each drawer carries 75 kg.

Benefits

• Dissipative surface: All painted parts carry the dissipative paint coating developed by Lista, which drains charges in a controlled way.
• RFID Lock: a transponder in the lock recognises standard RFID badges, cards or tags, and the numeric code works as an alternative.
• 75 kg per drawer: usable area of 459 x 612 mm per drawer.
• Single-drawer interlock: as standard only one drawer can be opened at a time, which keeps the cabinet stable when drawers are pulled out.

Colours

Choose the ESD colour when ordering from the following options:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y

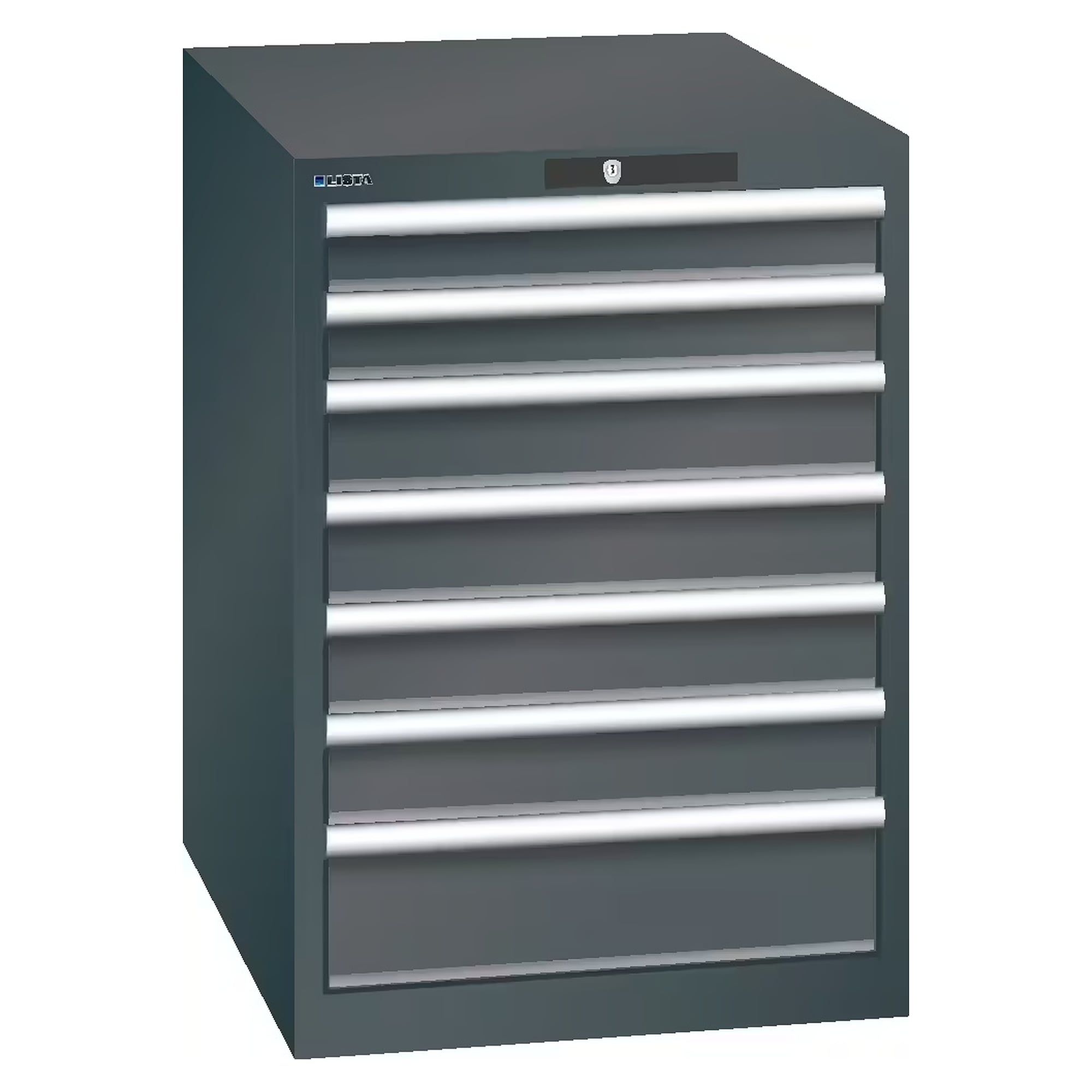

• Anthracite grey RAL 7016

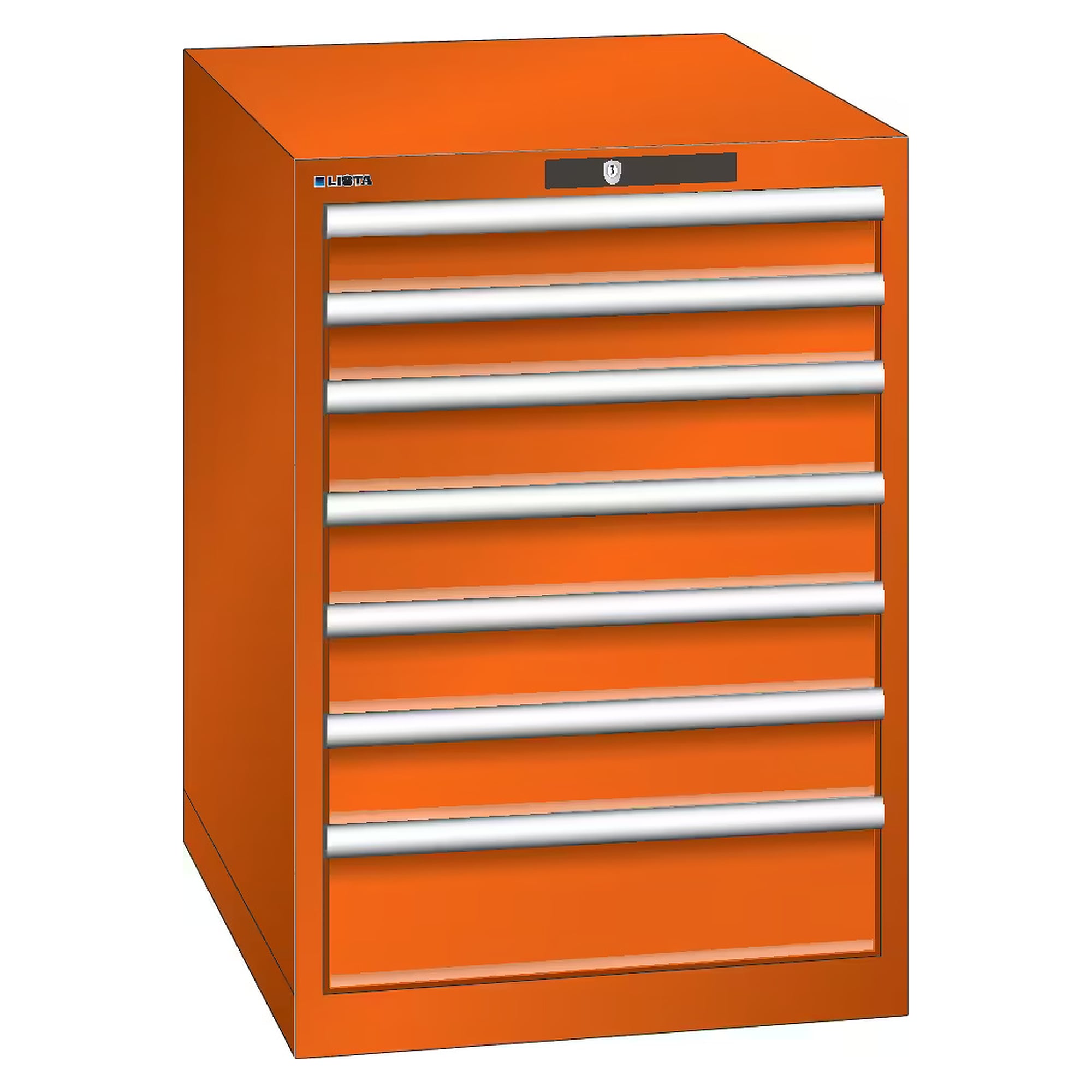

• Orange NCS S 1080-Y40R

Use and combination

Typical locations are EPA areas in electronics production and at EMS providers, test and repair stations, laboratories and component stores. The dissipative effect requires the cabinet to be properly earthed. Matching items in the 27 x 36 E format include an ESD resin cover plate that closes off the top and serves as a work surface, a grooved mat for the top and a rim on three sides so nothing rolls off.

Notes

For loading drawers and cabinets, follow Lista's assembly instructions and loading rules. The stated load capacity applies to an evenly distributed load.
