ESD drawer cabinet 36x36E, 717x725x1000 mm, 8 drawers 2x75/3x100/3x150, 75 kg, KEY Lock - Lista 95.172

This cabinet organises small parts, tools and assemblies in electronics production with a 2x75/3x100/3x150 mm layout across 8 drawers. Each one carries 75 kg with evenly distributed load. It locks with the KEY Lock, Lista's standard locking system with interchangeable cylinder, operated by key. At 717 mm wide and 1000 mm high it serves as fixed storage beside or under the workbench.

Benefits

• Dissipative surface: all painted parts carry the dissipative paint coating developed by Lista, which drains charges in a controlled way.

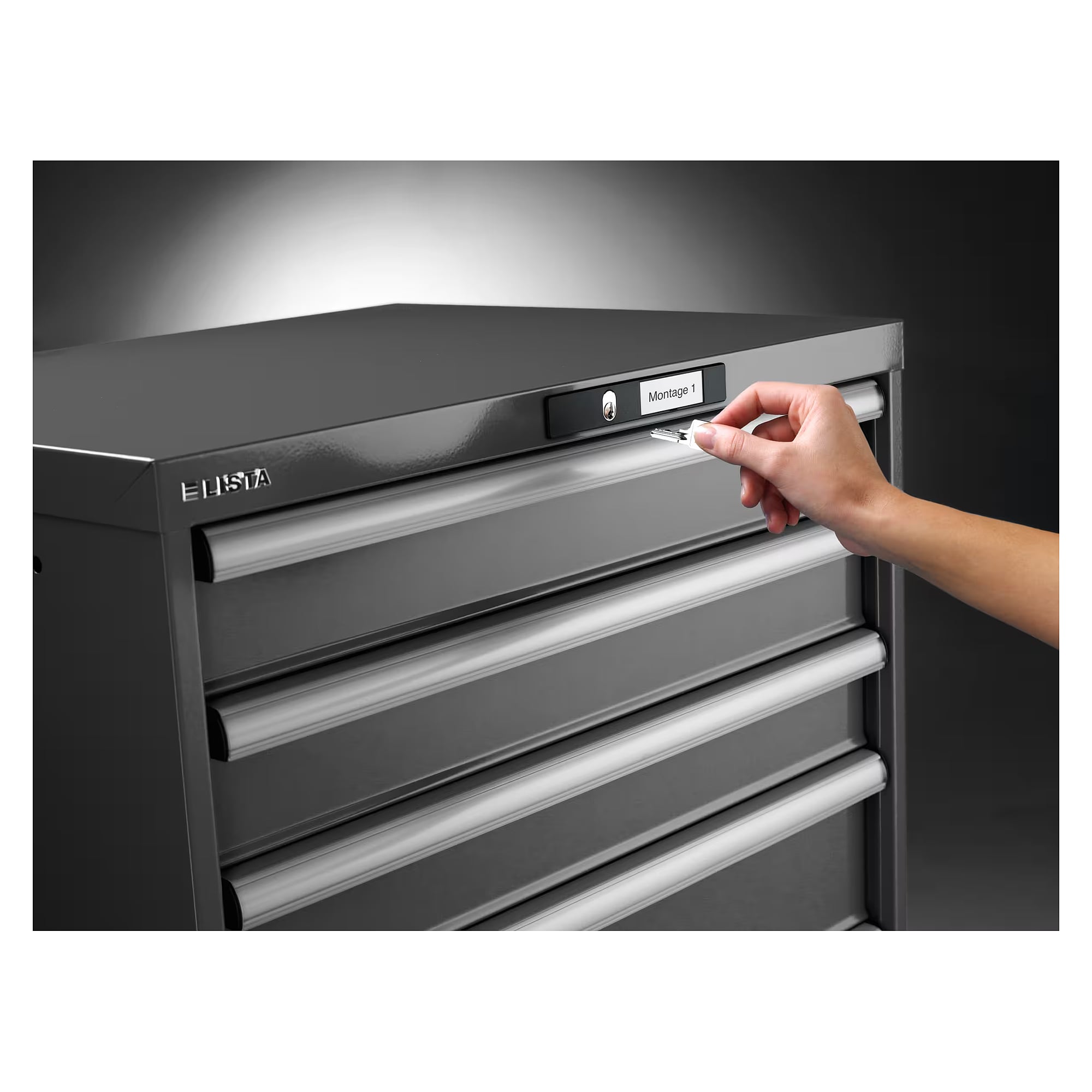

• KEY Lock: key operated lock with interchangeable cylinder that can be replaced if a key goes missing.
• 75 kg per drawer: usable area of 612 x 612 mm per drawer, enough for heavy test equipment and tools.
• Single drawer lock: already included in the standard version.
• 36 x 36 E grid: Lista partitioning material in the same grid divides the 612 x 612 mm usable area precisely.

Colours

Choose the ESD colour when ordering from the following options:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y
• Anthracite grey RAL 7016
• Orange NCS S 1080-Y40R

Use and combination

Typical locations are EPA areas in electronics production and at EMS providers, test and repair stations, labs and component stores. The dissipative effect depends on the cabinet being properly earthed. For the top, the ESD synthetic resin cover plate 36x36E measuring 717 x 725 mm fits, combined with a grooved mat or a three-sided edge rim so nothing rolls off. Lista partitioning material in the same grid organises the drawers.

Notes

Follow Lista's assembly instructions and loading guidelines when loading the drawers and the cabinet. The stated load capacity applies to an evenly distributed load.
