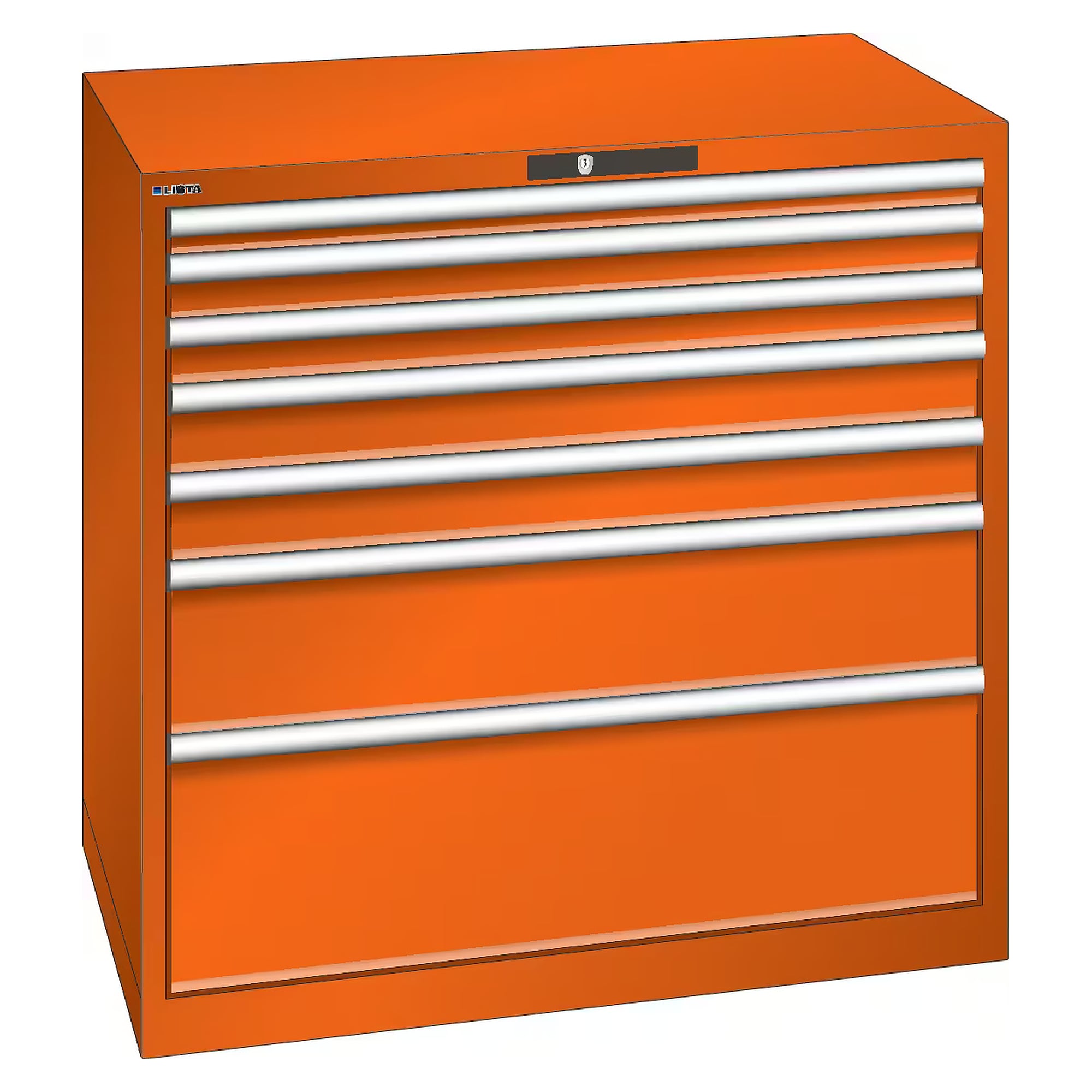

ESD drawer cabinet 54x36E, 1023x725x1000 mm, 7 drawers 1x50/2x75/2x100/1x200/1x300, 200 kg, 1x50 rated 75 kg, AUTO Lock - Lista 95.211

Components, assemblies and tools need to be stored in order and under lock in the EPA: this cabinet provides 7 drawers on a 1023 x 725 mm footprint with 200 kg per drawer, with the 50 mm front drawer rated at 75 kg. 5 of the 7 drawers have front heights up to 100 mm and keep small parts and components clearly arranged, the tallest front measures 300 mm. AUTO Lock offers the functions of RFID Lock but opens and locks automatically via RFID badge or number code. The optional Lista Access software can store time profiles that limit access to defined periods.

Benefits

• Dissipative paint coating: All painted surfaces carry the dissipative paint coating developed by Lista, which drains charges in a controlled way.
• Load capacity: 918 x 612 mm usable area per drawer at 200 kg per drawer, with the 50 mm front drawer rated at 75 kg.

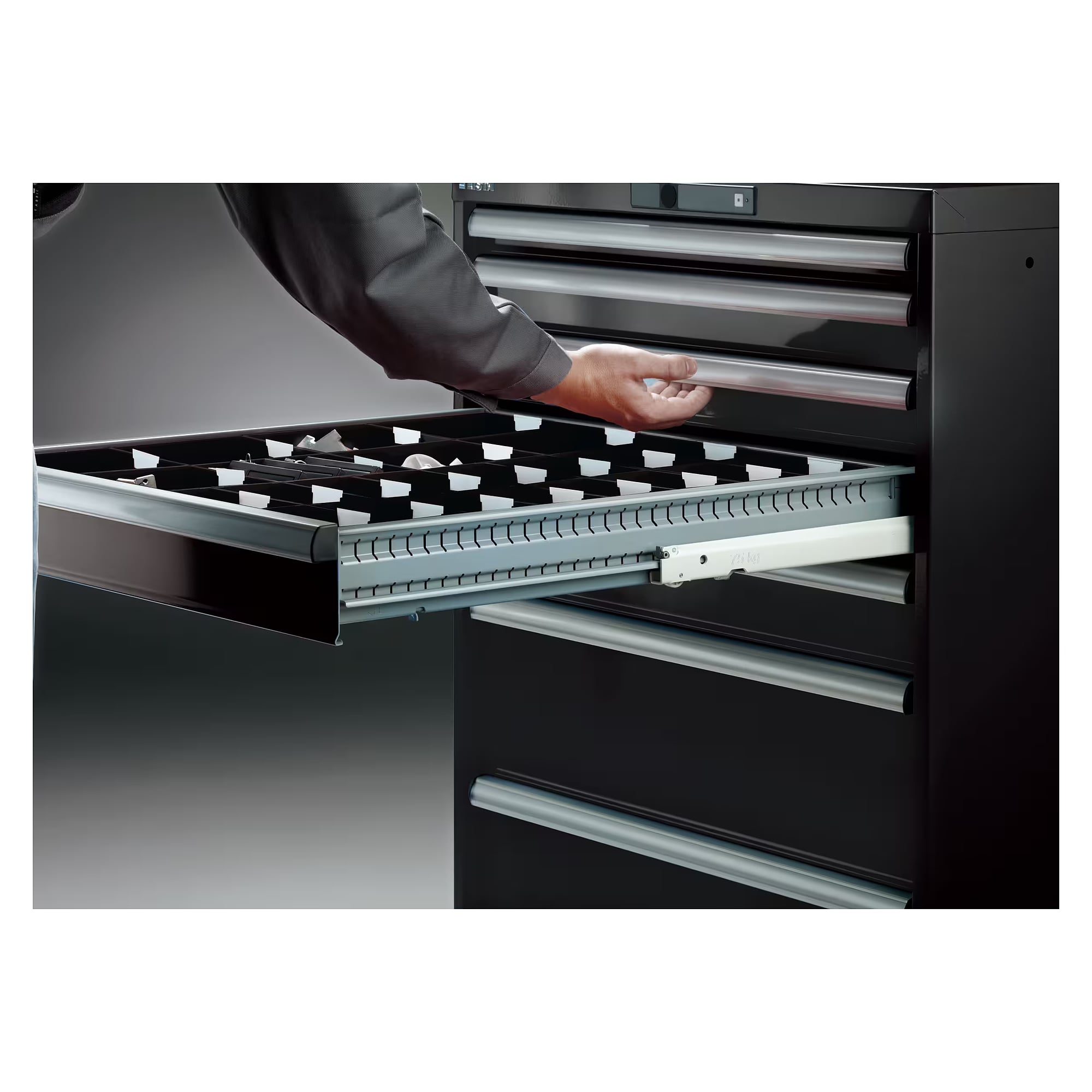

• Single-drawer interlock: Included as standard, only one drawer can be opened at a time.
• AUTO Lock: Automatic opening and locking via RFID or code, time profiles via Lista Access (option).
• Layout: 7 drawers with 1x50/2x75/2x100/1x200/1x300 mm front heights use the full 900 mm clear height.

Colours

Choose the ESD colour when ordering from the following options:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y
• Anthracite grey RAL 7016
• Orange NCS S 1080-Y40R

Use and combination

Typical locations are EPAs in electronics production and at EMS providers, test and repair stations, laboratories and component stores. The dissipative effect requires the cabinet to be properly grounded. At 1000 mm high, the top can serve as an extra surface next to the workstation once a cover plate is fitted. Matching the 54 x 36 E format are an ESD resin cover plate that serves as a top surface, a grooved mat for the top and a three-sided roll-off edge that keeps parts from falling off. Matching Lista partitioning material is available for the drawers.

Notes

• For loading the drawers, follow the Lista assembly instructions and loading guidelines. The stated load capacity applies to evenly distributed loads.
