ESD drawer cabinet 54x36E, 1023x725x1000 mm, 8 drawers 2x75/3x100/3x150, 200 kg, RFID Lock - Lista 95.218

If you need more order at 1000 mm height in the 54 x 36 E grid, Lista 95.218 gives you 8 drawers that together occupy 900 mm clear height. Each drawer offers 918 x 612 mm usable area. 5 of the 8 drawers have front heights up to 100 mm and keep small parts and components clearly arranged, the tallest front measures 150 mm. RFID Lock opens by radio frequency identification in addition to a number code: a transponder in the lock reads standard RFID badges, cards or tags.

Benefits

• Dissipative paint coating: All painted surfaces carry the dissipative paint coating developed by Lista, which drains charges in a controlled way.
• Load capacity: 918 x 612 mm usable area per drawer at 200 kg per drawer.
• Single-drawer interlock: Included as standard, only one drawer can be opened at a time.
• RFID Lock: Opening with an existing RFID badge, card or tag or with a number code.
• Layout: 8 drawers with 2x75/3x100/3x150 mm front heights use the full 900 mm clear height.

Colours

Choose the ESD colour when ordering from the following options:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y

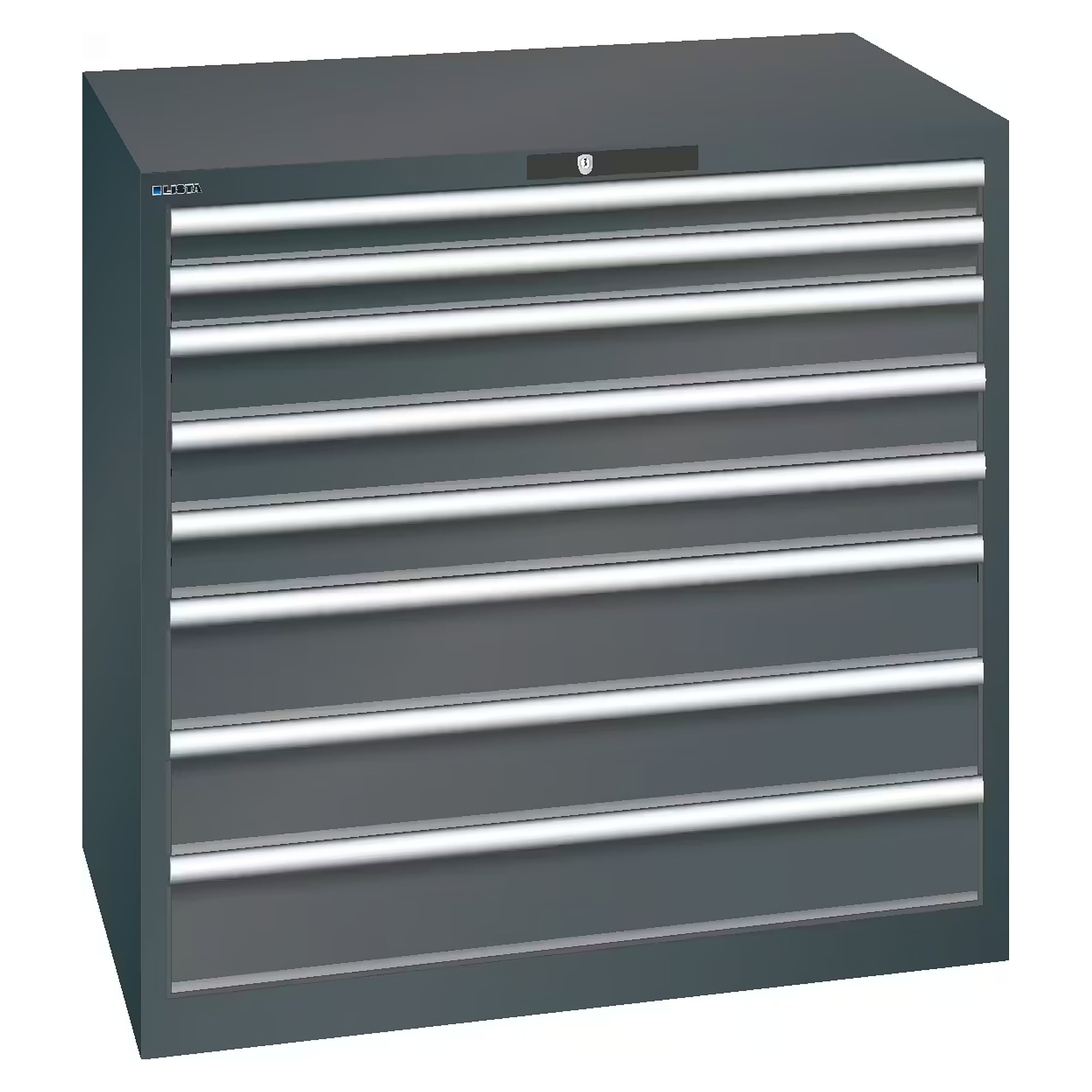

• Anthracite grey RAL 7016

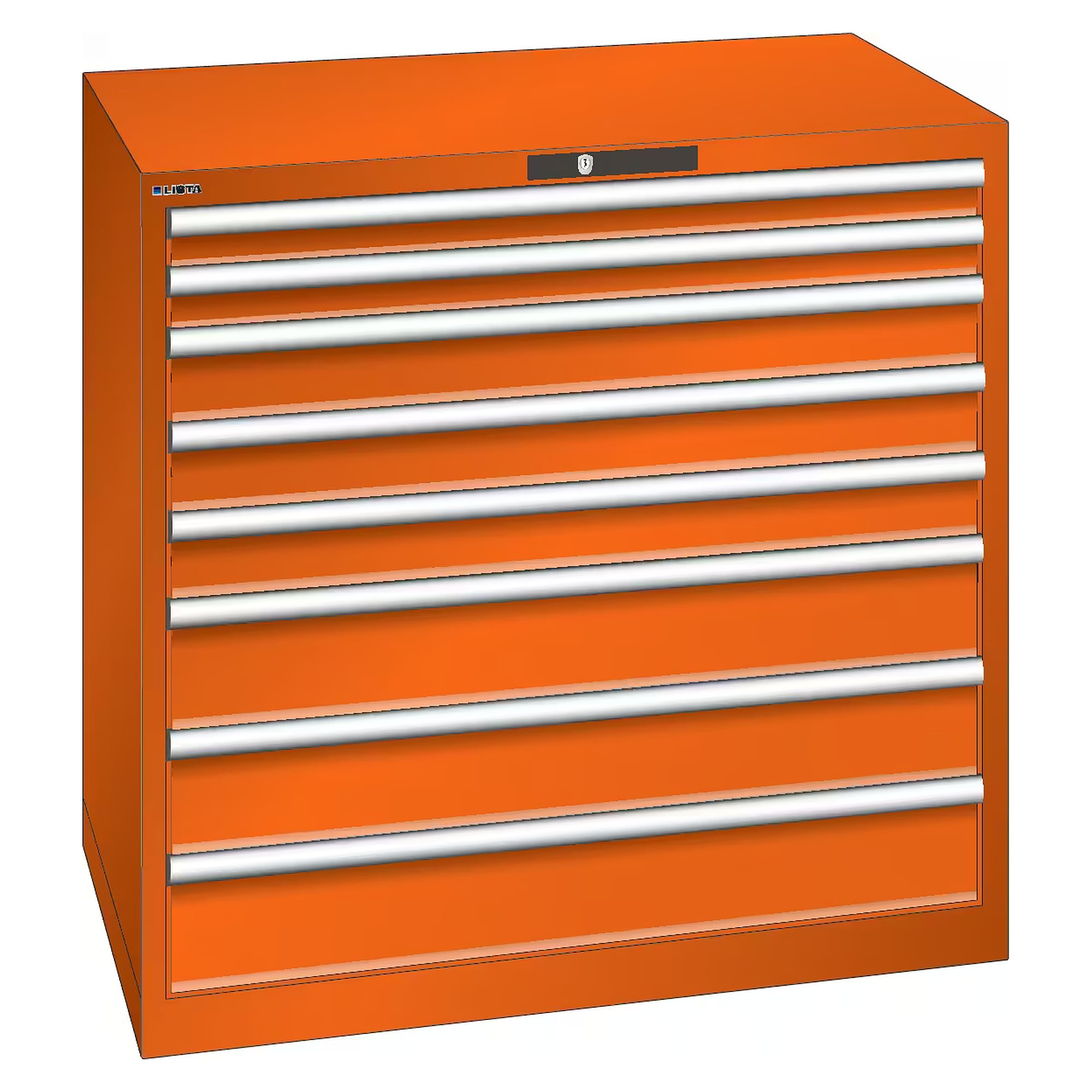

• Orange NCS S 1080-Y40R

Use and combination

Typical locations are EPAs in electronics production and at EMS providers, test and repair stations, laboratories and component stores. The dissipative effect requires the cabinet to be properly grounded. At 1000 mm high, the top can serve as an extra surface next to the workstation once a cover plate is fitted. Matching the 54 x 36 E format are an ESD resin cover plate that serves as a top surface, a grooved mat for the top and a three-sided roll-off edge that keeps parts from falling off. Matching Lista partitioning material is available for the drawers.

Notes

• For loading the drawers, follow the Lista assembly instructions and loading guidelines. The stated load capacity applies to evenly distributed loads.
