ESD drawer cabinet 54x36E, 1023x725x1450 mm, 9 drawers 3x100/5x150/1x300, 75 kg, 1x300 rated 200 kg, RFID Lock - Lista 95.233

Components, assemblies and tools need to be stored in order and under lock in the EPA: this cabinet provides 9 drawers on a 1023 x 725 mm footprint with 75 kg per drawer, with the 300 mm front drawer rated at 200 kg. 6 of the 9 drawers have front heights from 150 mm for assemblies, test equipment and tools, the lowest front measures 100 mm. RFID Lock opens by radio frequency identification in addition to a number code: a transponder in the lock reads standard RFID badges, cards or tags.

Benefits

• Dissipative paint coating: All painted surfaces carry the dissipative paint coating developed by Lista, which drains charges in a controlled way.
• Load capacity: 918 x 612 mm usable area per drawer at 75 kg per drawer, with the 300 mm front drawer rated at 200 kg.
• Single-drawer interlock: Included as standard, only one drawer can be opened at a time.
• RFID Lock: Opening with an existing RFID badge, card or tag or with a number code.
• Layout: 9 drawers with 3x100/5x150/1x300 mm front heights use the full 1350 mm clear height.

Colours

Choose the ESD colour when ordering from the following options:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y

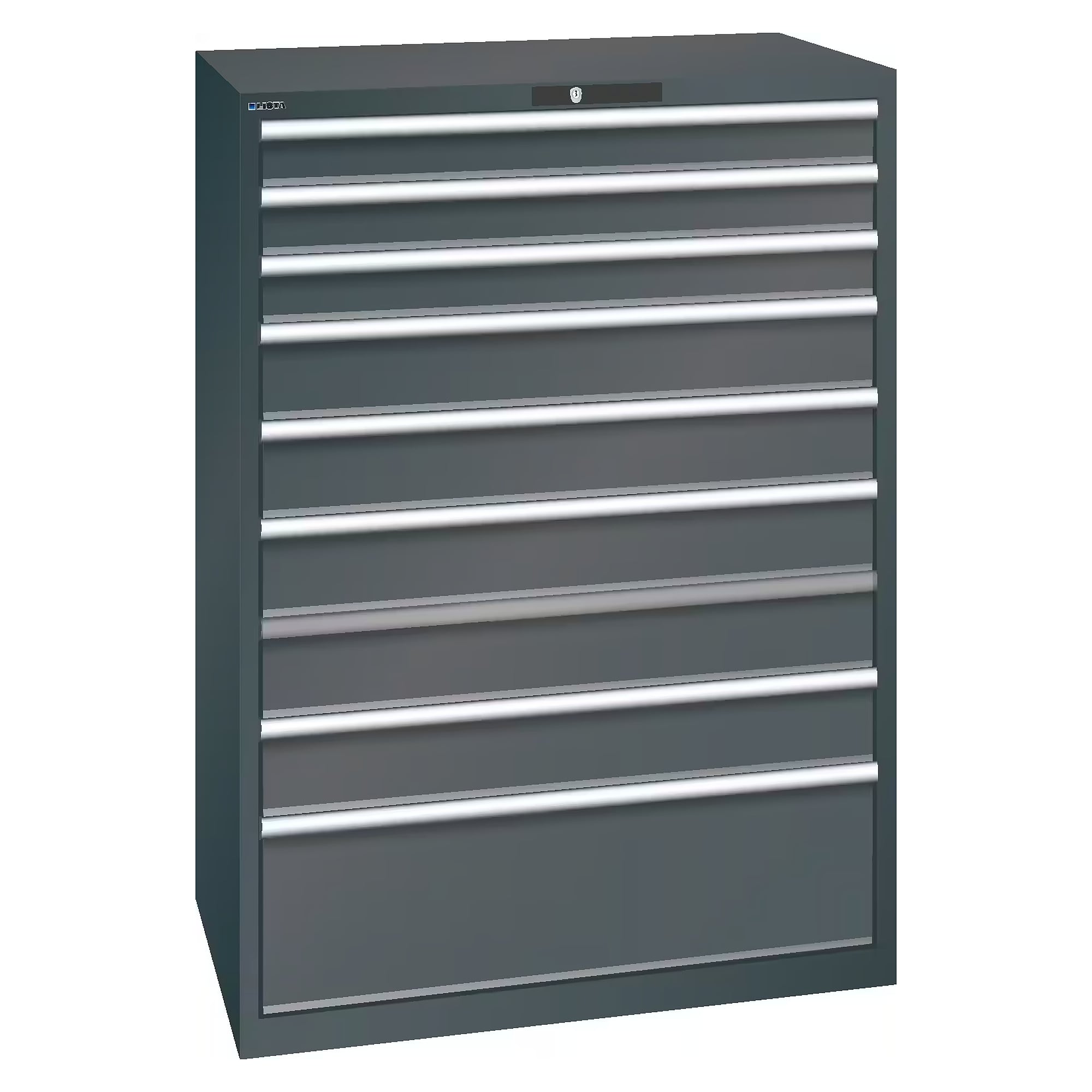

• Anthracite grey RAL 7016

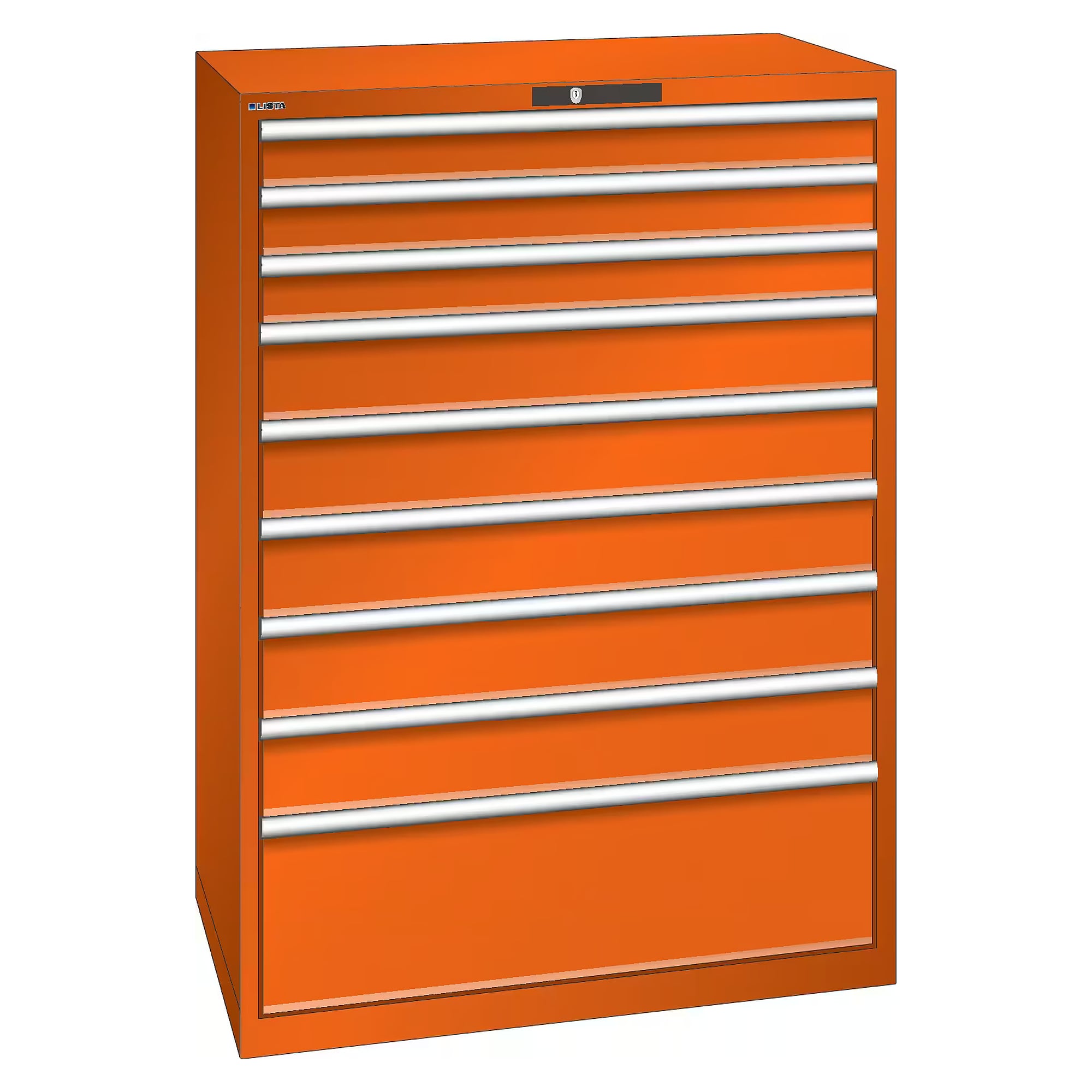

• Orange NCS S 1080-Y40R

Use and combination

Typical locations are EPAs in electronics production and at EMS providers, test and repair stations, laboratories and component stores. The dissipative effect requires the cabinet to be properly grounded. At 1450 mm high it works as a storage cabinet against a wall or next to the line. Matching the 54 x 36 E format are an ESD resin cover plate that serves as a top surface, a grooved mat for the top and a three-sided roll-off edge that keeps parts from falling off. Matching Lista partitioning material is available for the drawers.

Notes

• For loading the drawers, follow the Lista assembly instructions and loading guidelines. The stated load capacity applies to evenly distributed loads.
