Mobile ESD drawer cabinet 27x36E, 564x725x990 mm, 5 drawers 1x50/2x100/1x150/1x300, 75 kg, rubber castors Ø100 mm, KEY Lock - Lista 95.136

If you need to store components and tools sorted and secured in the EPA, this cabinet gives you 5 drawers with front heights of 1x50/2x100/1x150/1x300 mm in the 27 x 36 E grid. The shallow 50 mm drawer at the top suits small parts and component reels, while the 300 mm drawer at the bottom takes measuring instruments and tall assemblies. It locks with the KEY Lock, Lista's standard locking system with interchangeable cylinder, operated by key. On rubber castors Ø 100 mm rated for 400 kg, the cabinet rolls to whichever workstation needs it.

Benefits

• Dissipative surface: all painted parts carry the dissipative paint coating developed by Lista, which drains charges in a controlled way.

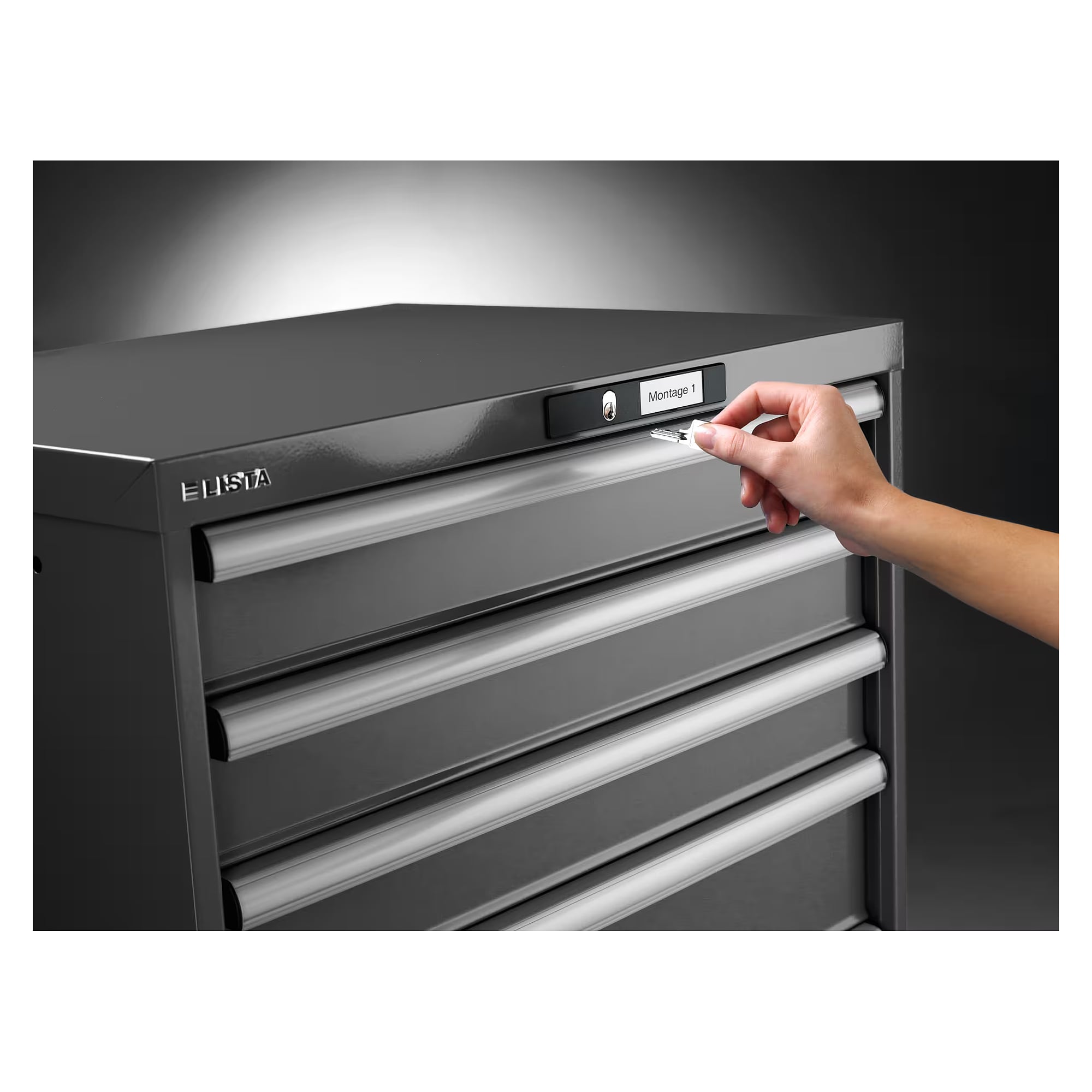

• KEY Lock: key operated lock with interchangeable cylinder that can be replaced if a key goes missing.
• 75 kg per drawer: usable area of 459 x 612 mm per drawer, enough for heavy test equipment and tools.
• Single catch on the right: released with one hand, it keeps drawers shut even when the cabinet is unlocked, the minimum requirement for mobile cabinets.
• Mobile: rubber castors Ø 100 mm rated for 400 kg, with push bar and edge rim with grooved mat included.

Colours

Choose the ESD colour when ordering from the following options:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y
• Anthracite grey RAL 7016
• Orange NCS S 1080-Y40R

Use and combination

As a mobile cabinet it follows maintenance and repair from station to station, typically in EPA areas of electronics production, at EMS providers and in labs. The dissipative effect depends on the cabinet being properly earthed. Edge rim, grooved mat and push bar are already included. Lista partitioning material in the same grid keeps the drawers organised.

Notes

Follow Lista's assembly instructions and loading guidelines when loading the drawers and the cabinet. The stated load capacity applies to an evenly distributed load.
