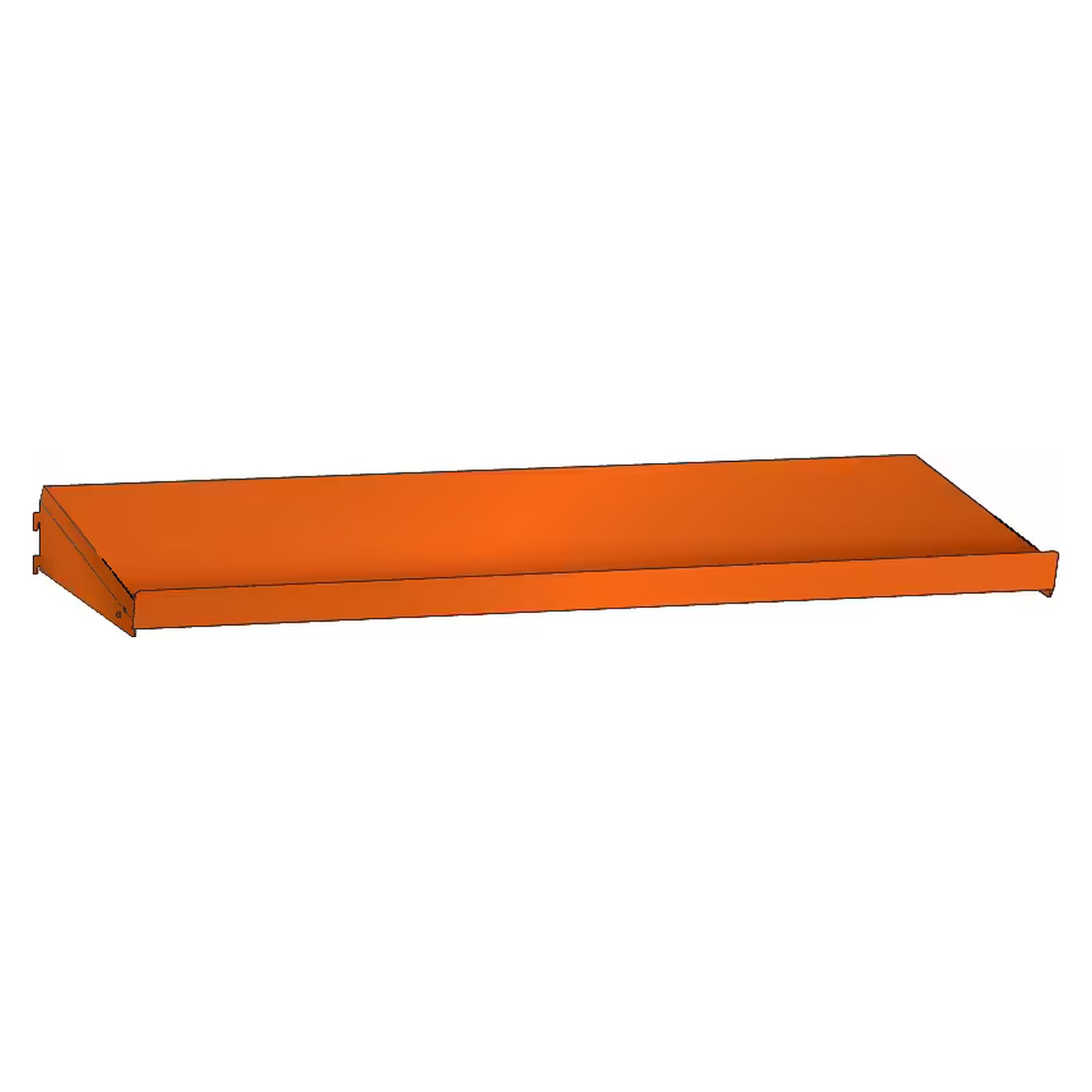

ESD adjustable shelf smooth, 2000x400 mm, usable width 1999 mm, 50 kg, with stop edge - Lista 93.508

Shelf space of 2000 x 400 mm, 1999 mm of it usable: on this ESD adjustable shelf, devices and bins fit across the full width of long assembly lines.

Benefits

• Dissipative surface: The painted surfaces carry the dissipative paint coating developed by Lista, which drains charges in a controlled way.
• Moves without tools: with the 2 consoles supplied, the shelf hangs into the support columns without screws, level or tilted at 15 degrees.
• Stop edge and rim: the stop edge on the long side can be fitted at the front or the back.
• 50 kg capacity: with 1999 mm usable width, shelf height 25 mm plus 17 mm stop edge.

Colours

Choose the ESD colour when ordering from the following options:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y
• Anthracite grey RAL 7016
• Orange NCS S 1080-Y40R

Use and combination

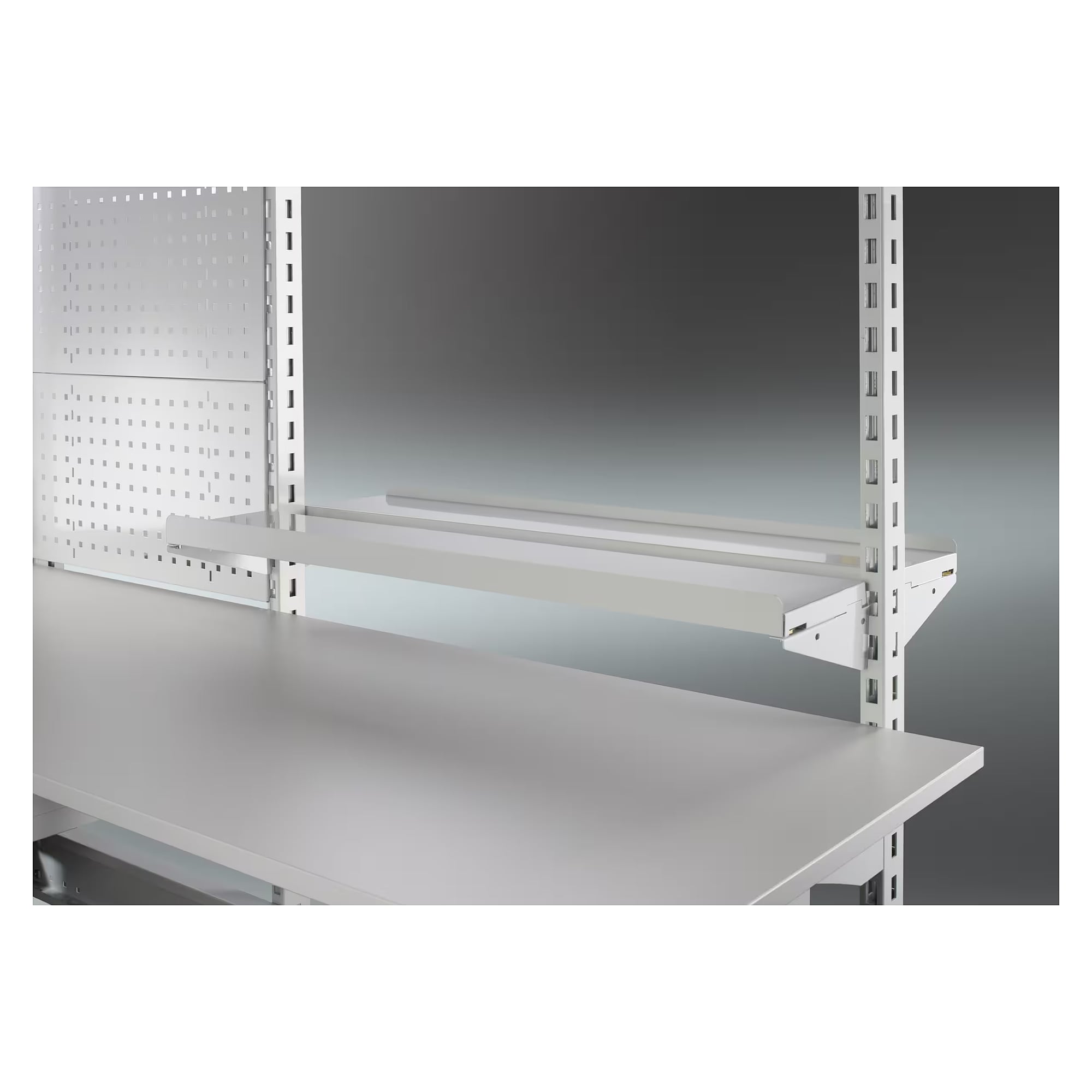

The shelf is used above ESD workbenches, on wall setups, at test and repair stations and in component stores. It hangs in Lista support columns for the workbench top or wall and combines with rear panels and bin rails into a complete setup. The dissipative effect depends on the setup being properly earthed.
