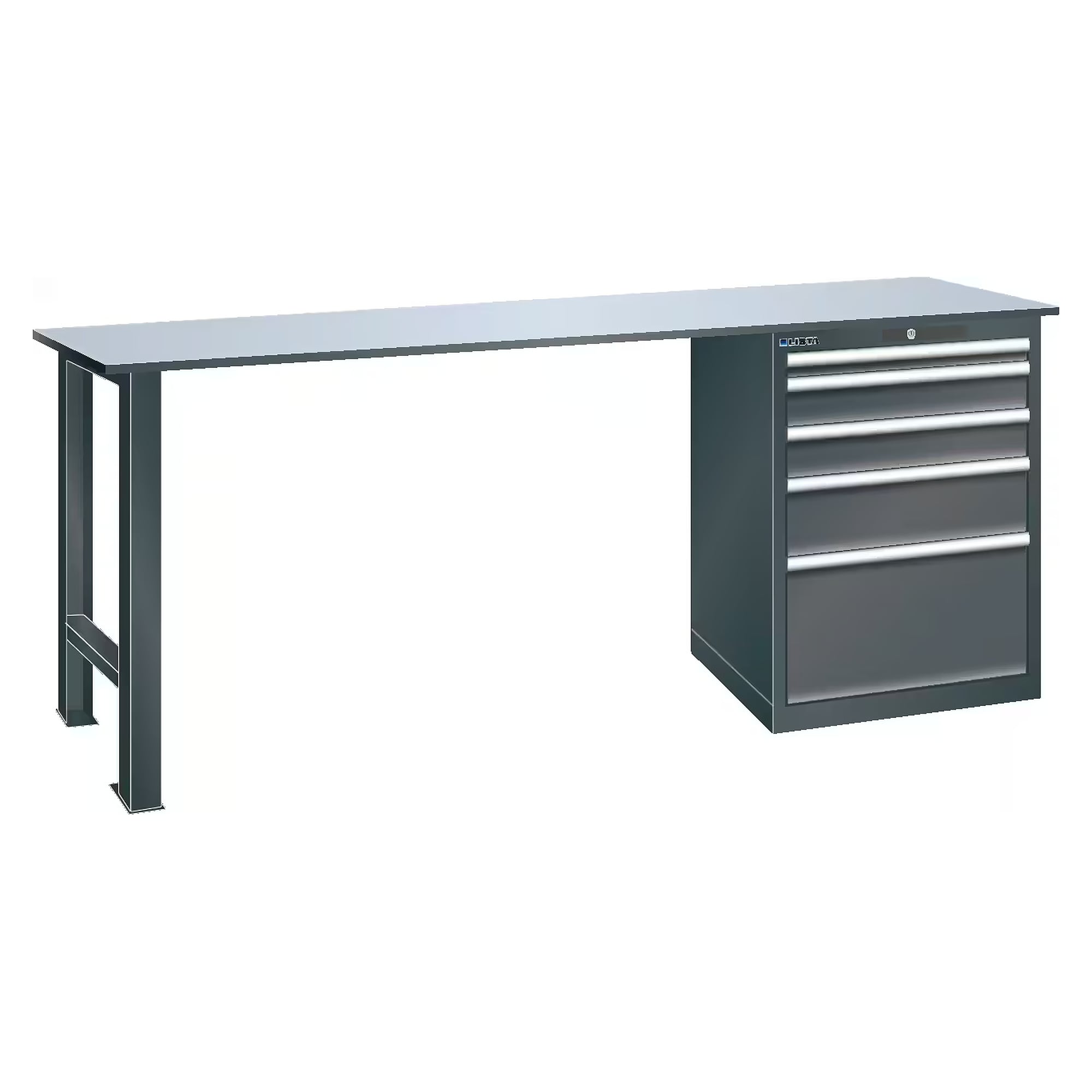

ESD workbench 27x36E, 1500x750x850 mm, 5 drawers 1x50/2x100/1x150/1x300, 75 kg, KEY Lock - Lista 95.916

This workbench combines a dissipative synthetic resin top of 1500 x 750 mm with a drawer cabinet whose 5 drawers (1 x 50 / 2 x 100 / 1 x 150 / 1 x 300 mm) each carry 75 kg. The KEY Lock keeps tools and components secure, and the top bears up to 1500 kg.

Benefits

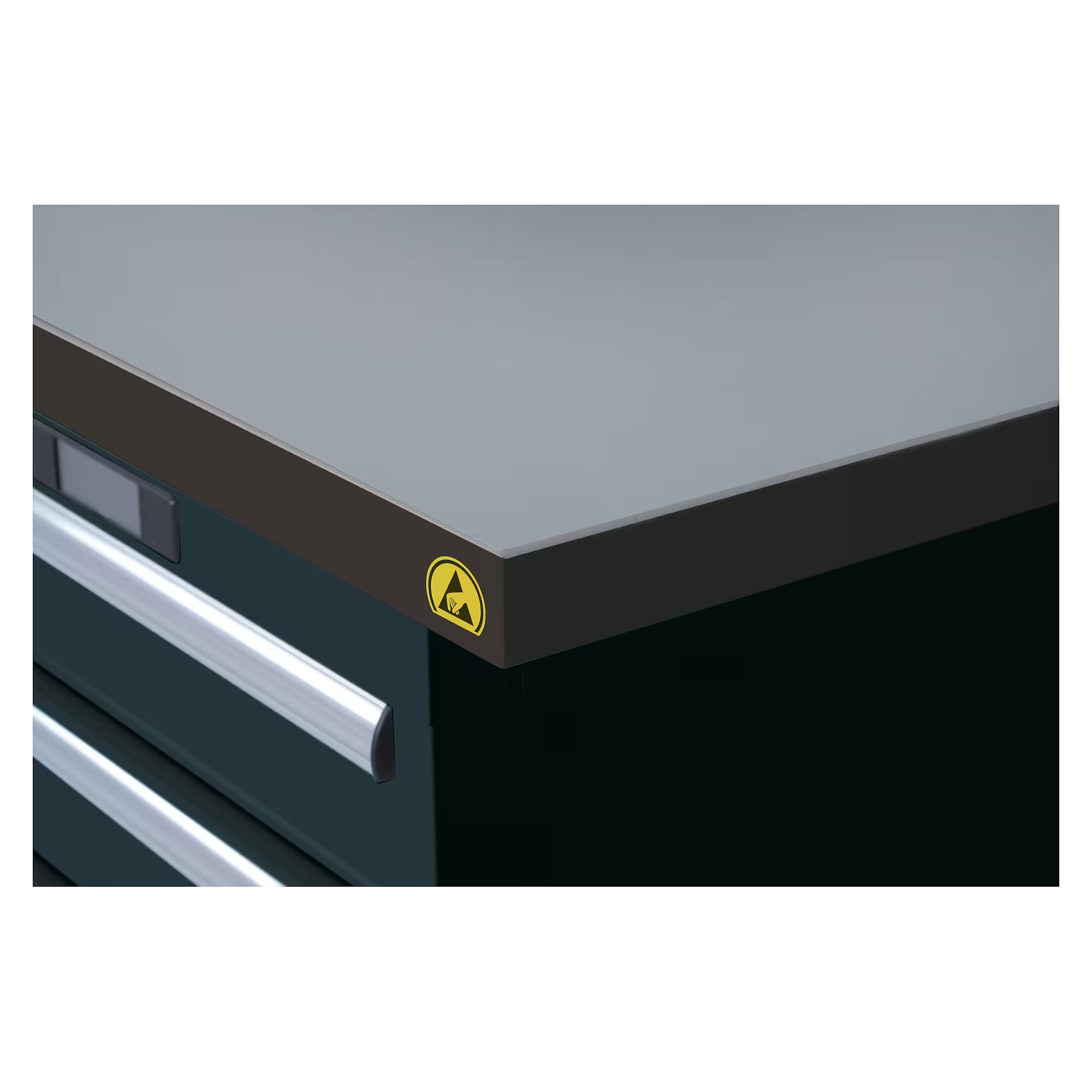

• Dissipative worktop: 50 mm composite element made of volume conductive chipboard with hard-wearing HPL laminate, top surface light grey NCS S 1500-N, edges with 2 mm ABS banding, grounding set included.
• KEY Lock: Lista standard lock with interchangeable cylinder, opened and locked manually with the key.
• 5 drawers at 75 kg each: usable area 459 x 612 mm, a finely graded layout from 50 mm for small parts up to 300 mm for test equipment.
• Dissipative paint coating: The painted parts carry the coating developed by Lista, which drains charges in a controlled way.
• Flexible assembly: The drawer cabinet can be fitted on the right or left, and the bench comes pre-assembled with fixing material. Surface load up to 1500 kg.

Colours

Choose the ESD colour of frame and cabinet when ordering:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y
• Anthracite grey RAL 7016

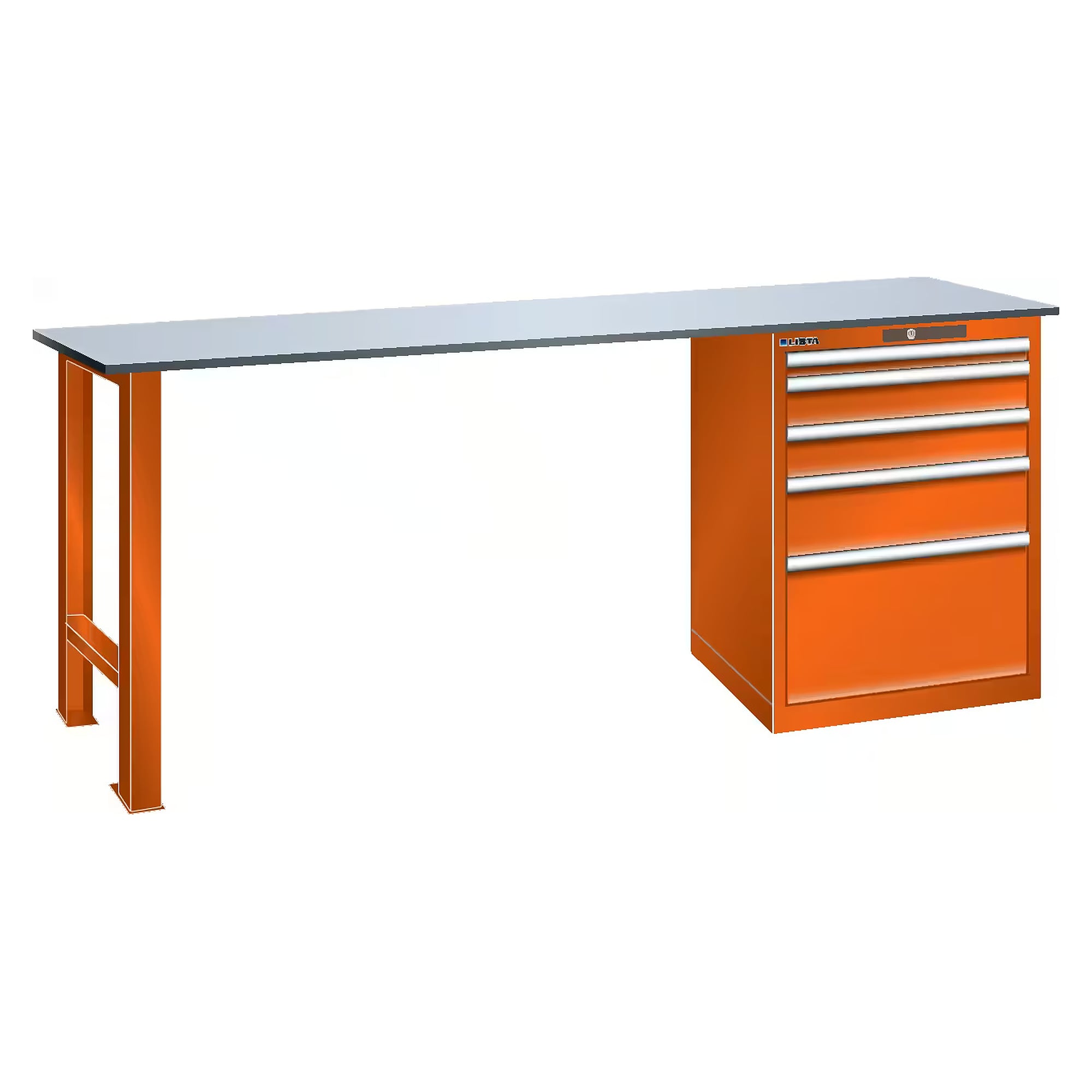

• Orange NCS S 1080-Y40R

Use and combination

The workbench is intended for EPAs in electronics production, at EMS providers, test and repair stations and in the laboratory. The dissipative effect requires the top and frame to be properly grounded via the supplied grounding set. To complete the ESD workstation, we supply a wrist strap with coiled cord, grounding box, ESD table mat and floor mat. Warning signs in German or English and floor marking tape identify the EPA.
