ESD workbench 27x36E, 1500x750x850 mm, 3 drawers 1x50/1x100/1x150, 75 kg, 50 mm synthetic resin top, KEY Lock - Lista 95.900

Work surface and storage in one: this ESD workbench combines a 1500 x 750 mm synthetic resin top with a 27x36E drawer housing under the top. Three drawers with 50, 100 and 150 mm front heights carry 75 kg each and lock with a key, the surface takes up to 700 kg.

Benefits

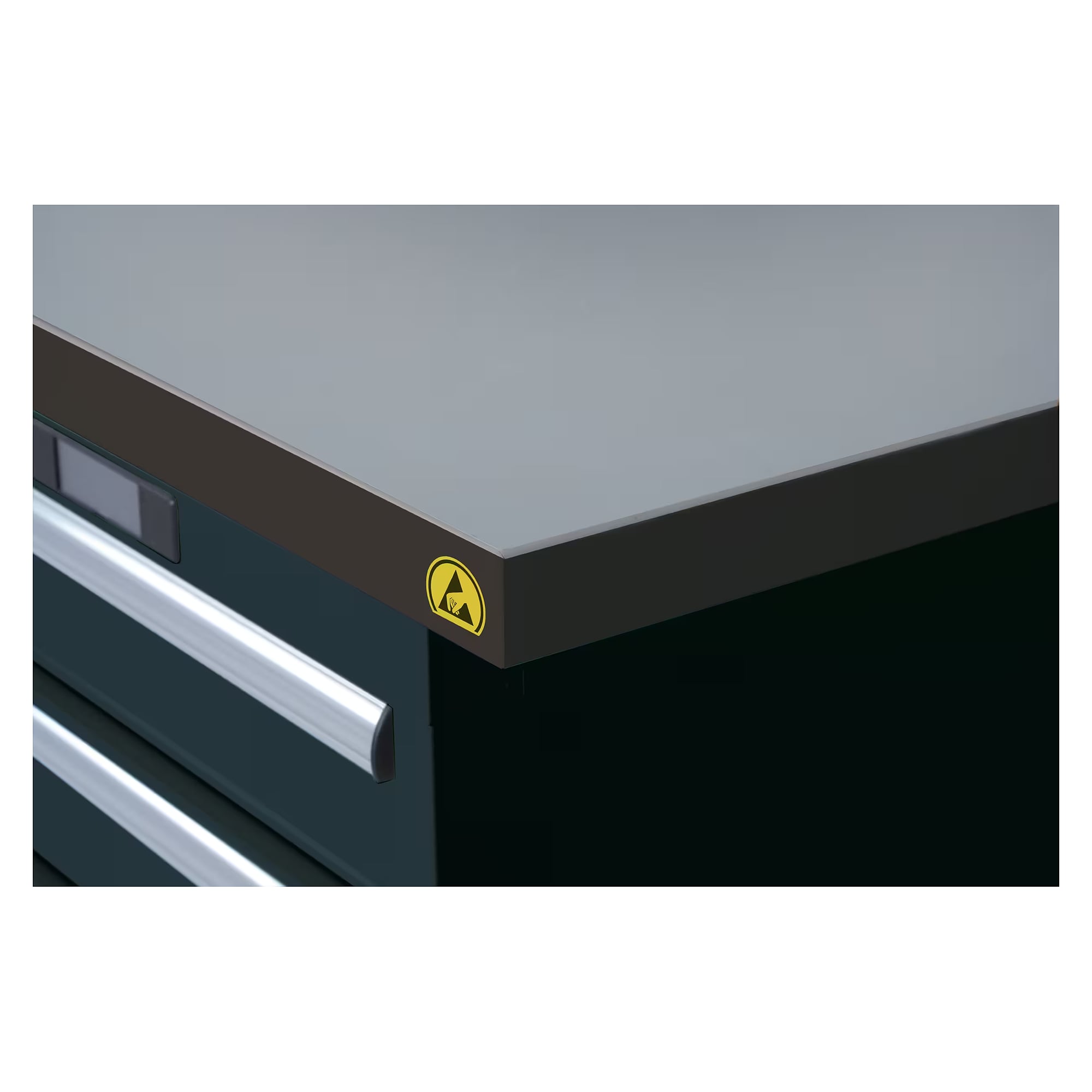

• Synthetic resin worktop of volume-conductive chipboard with HPL laminate in light grey NCS S 1500-N, 50 mm thick, earthing set included
• Lista dissipative paint coating on all painted surfaces, draining charges in a controlled way when the part is connected to the workstation earthing on the base frame and drawer housing
• Drawer housing 564 x 725 x 383 mm with 300 mm clear height, usable area per drawer 459 x 612 mm, load capacity 75 kg

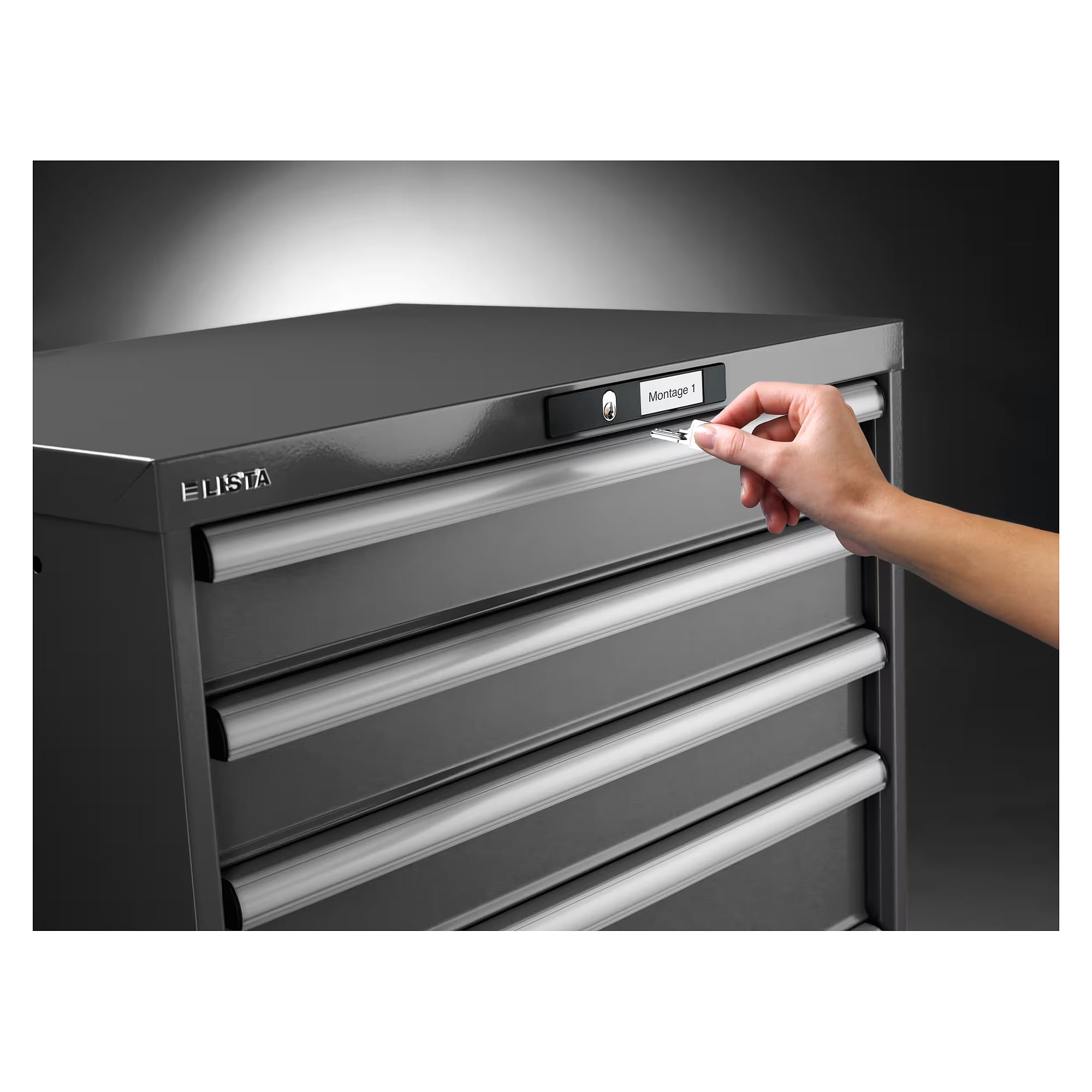

• KEY Lock with interchangeable cylinder, opened and closed by key
• Maximum distributed load 700 kg, supplied pre-assembled with fixings

Colours

Choose the ESD colour when you order, from the following options:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y
• Anthracite grey RAL 7016
• Orange NCS S 1080-Y40R

Use and combination

For assembly, soldering, test and repair stations in electronics production and the lab within the EPA, where tools, components and documents stay locked right at the station. The drawer housing can be mounted on the right or the left. For earthing people and the workstation, an ESD wrist strap with coiled cord, earthing box, table and floor mat are available, and ESD warning signs and floor marking tape for marking the EPA.
