Hakko FX-100. Induction Soldering Station 50W
- FX-100 provides the heat to the tip effectively by ‘Induction heater’
- In addition, it allows more efficient heat supply with power assist of our unique technology.
- No calibration is required.
- Selectable micro soldering iron as usage at your option.
-
This Item:
€643.72Excl. 19% VAT , excl. Shipping Cost
-
Hakko T31-02JL02. Soldering tip Shape-0.2RLB
€17.58Excl. 19% VAT , excl. Shipping Cost
-

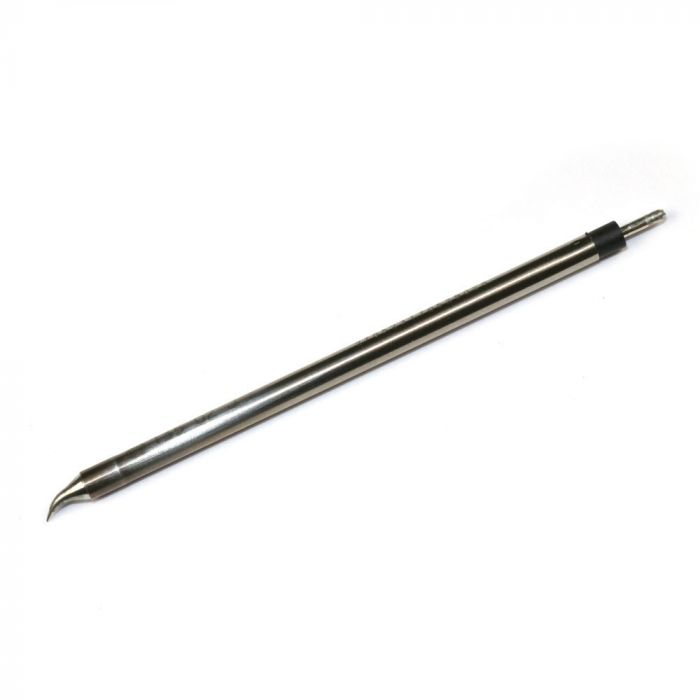

Hakko T35-02J. Composite soldering tip 400°C format J for soldering iron FX 1002
€36.58Excl. 19% VAT , excl. Shipping Cost
The IH system transforms high-density micro-soldering with the heat power it generates.
What is IH (High-Frequency Induction Heating)?
Unlike resistance-based heating systems that control temperature by turning heater power on and off via a sensor, with an induction heating system the soldering tip itself produces heat and maintains a constant temperature, enabling a small soldering tip to handle high thermal capacity, high-density substrates.
With the IH system, controlling the temperature of the soldering iron is easy
Temperature setting control of the soldering iron is easier as the temperature is fixed with the various models in the soldering tip line up, unlike with conventional temperature setting systems. Whatever temperature is selected, it can be displayed on the LCD panel with simple button operations.
HAKKO FX-1001 Soldering Iron (standard): 350°C, 400°C, 450°C
HAKKO FX-1002 Soldering Iron (optional): 350°C, 400°C
When a slight drop in heat capacity is detected...
When there is a drop in heat capacity while soldering, the actual temperature of the tip can be raised slightly by selecting BOOST mode, improving workability.
Two types of soldering irons enable handling of both "high heat capacity, high-density circuit boards" and "soldering under a microscope"
| Standard | Option | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HAKKO FX-1001 Soldering Iron Recommended for use with high heat capacity, high-density circuit boards.
| HAKKO FX-1002 Soldering Iron Recommended for soldering work under a microscope. FX-1002 Features
| |||||||||||
Simple three-button operation
Large LCD displays information for easy operation and management.
 |  | Profile Lets you register station name, user names, solder types, for easier management and status confirmation. |
 | Tip Loads Lets you track tip wear by automatically recording the number of soldering operations*. *This feature is only intended to serve as a general guide. | |
 | Tip Time Counts the length of time that the tip has been powered on. If you set a time with the alert function, the system will notify you when it is time to replace the tip. | |
 | Tip Type Displays the temperature type of tip currently in use. |
| Part No. | Packing list |
| No.FX-100 |
|
A soldering tip is not included with this product. The desired tips should be purchased separately.
| Model No. | FX-100 |
|---|---|
| Power consumption | 28W (85W) |
| Temperature range | T31-01 Series: 450ºC, T31-02 Series: 400ºC, T31-03 Series: 350ºC |
| Temperature stability | ±1.1ºC |
・Station
| Output power | 50W |
|---|---|
| Output frequency | 13.56MHz |
| Dimensions | 127(W)×150(H)×167(D)mm |
| Weight | 3kg |
・Soldering Iron
| Tip to ground resistance | <2Ω |
|---|---|
| Tip to ground potential | <2mV |
| Heating element | IH (Induction heating) |
| Cord length | 1.3m |
| Total length | 190mm (with No.T31-02D24 or T31-03D24) 193mm (with No.T31-01D24) |
| Weight | 31g (with No.T31-02D24) |
* Total length and weight (w/o cord)
| Part No. | Name | Specifications | |
|---|---|---|---|
 | B5007 | Sleeve | green |
 | B5008 | Sleeve | gray |
 | B2300 | Heat resistant pad | |

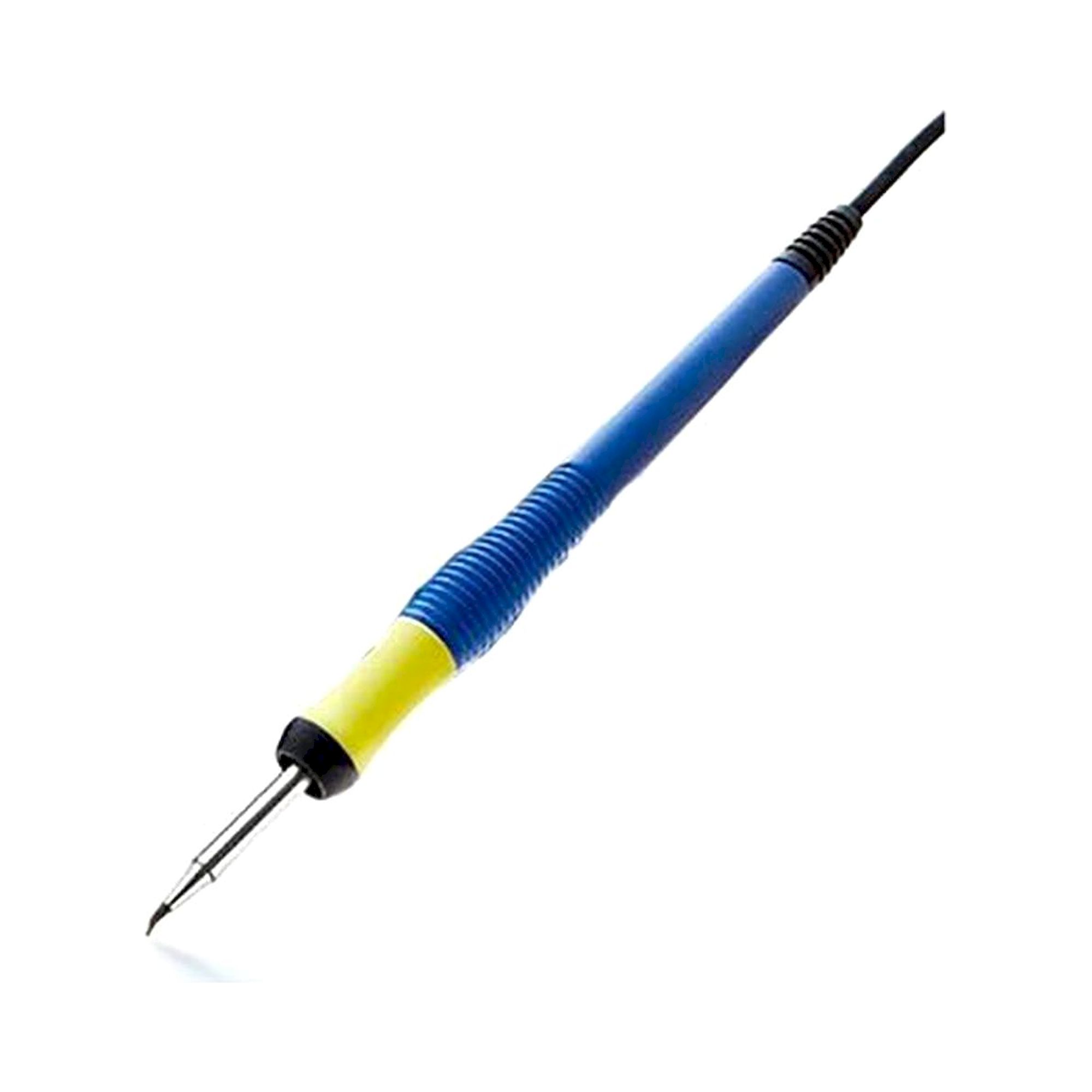

 | FX1001-81 | Soldering iron FX-1001 | |
 | FH800-81BY | Iron holder <w/ cleaning sponge, cleaning wire> | blue |
 | B5006 | Sleeve | yellow |
 | A5038 | Cleaning sponge | yellow |
 | A1561 | Cleaning wire |
| Part No. | Name | Specifications | |
|---|---|---|---|
 | FX1002-81 | Soldering iron FX-1002 | with Sleeve assembly yellow |
 | FX1002-82 | HAKKO FX-1002 conversion kit | with Sleeve assembly green, iron holder and heat resistant pad |
 | B5179 | Sleeve assembly | yellow, for FX-1002 |
 | B5180 | Sleeve assembly | green, for FX-1002 |
 | FH800-82BY | Iron holder <w/ cleaning sponge, cleaning wire> | blue, for FX-1002 |
 | B3474 | Rubber cleaner |
| Category | Title |
|---|---|
| How to use | Select Tip Shape |
| Maintenance | Why is the measured tip temperature lower than the set temperature? |
| Maintenance | Tip life |
| Maintenance | Why do tips oxidize easily when they are used with lead-free solder? |
| Execution | TEC |
|---|---|
| Manufacturer Nr. | FX 100-13 |
| Manufacturer | Hakko |
| Country of Manufacture | Japan |
| EAN | 4962615041303 |
| Weight | 0.009900 |
| Note | Es gibt keine Lieferung von Hakko Produkten in die Schweiz |
| HS-Code | 85151990 |
| GPSR manufacturer information | TBK - Technisches Büro Kullik GmbH Industriestrasse 27 DE-56276 Großmaischeid www.kullik.com |
| Article authenticity | Original product |
| Condition of article | New |
