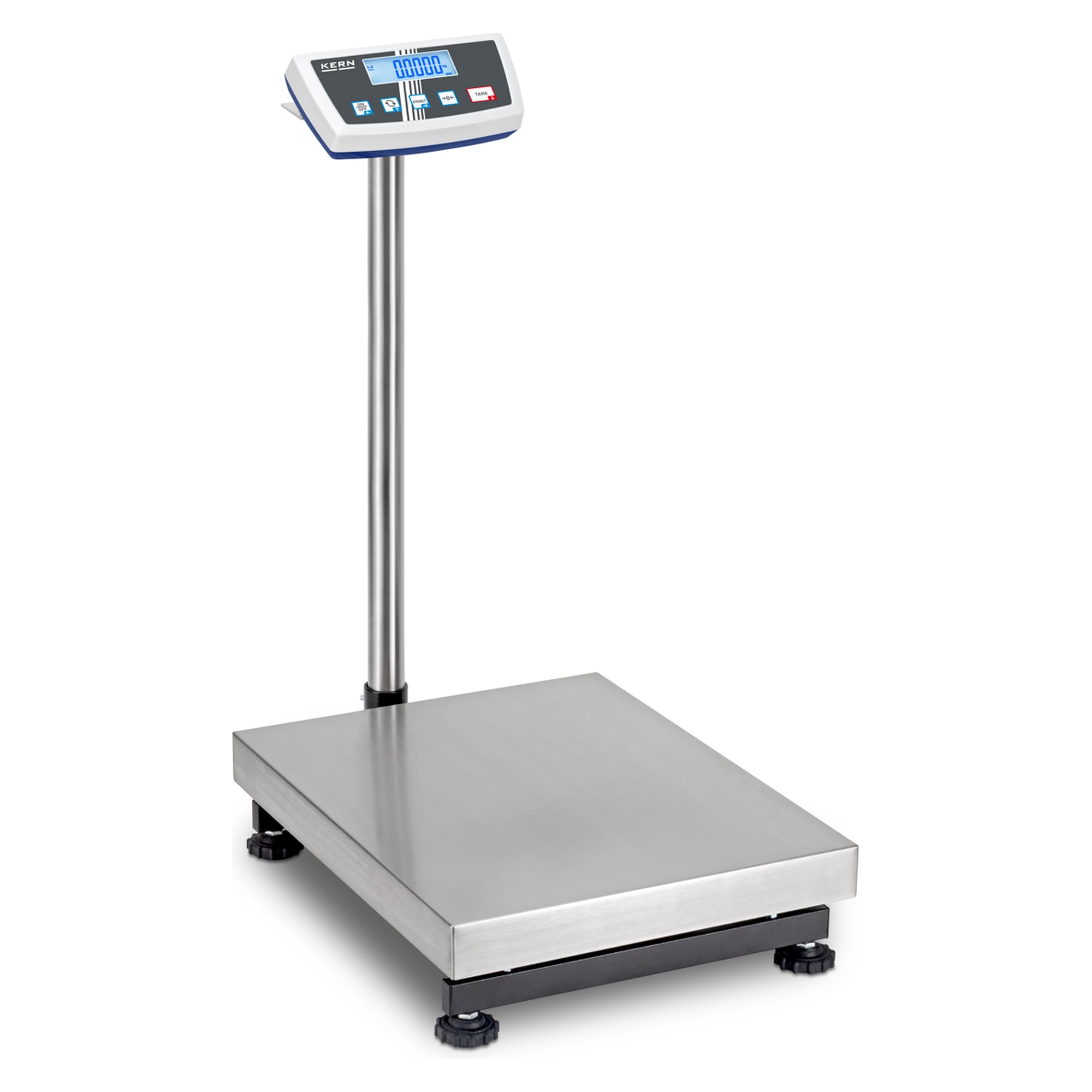

IoT-Line Platform Scale 60 kg Readability 0,0002 kg - KERN DS 60K0.2

In quality assurance and test-equipment monitoring, even large or heavy samples have to be captured precisely. The KERN DS 60K0.2 pairs a 60 kg weighing range with 0,0002 kg readability and a 500×400 mm weighing surface.

Benefits

• Lab accuracy under load: 0,0002 kg readability at a linearity of ± 0,0006 kg
• KERN Universal Port (KUP): add RS-232, USB, Bluetooth, WLAN or Ethernet with no installation effort
• KERN Communication Protocol (KCP): query and remotely control the scale from a PC or controller
• Accurate counting: automatic reference optimisation gradually refines the average piece weight
• Mains-independent: optional internal battery (charge time 8 h, up to 48 h of operation)
• Freely programmable unit: readout directly in g/m or g/m², dust cover included

Technical data

• Weighing range (max): 60 kg
• Readability (d): 0,0002 kg
• Repeatability: 0,0002 kg
• Linearity: ± 0,0006 kg
• Smallest part weight for counting (lab conditions): 200 mg
• Smallest part weight for counting (normal conditions): 2 g
• Weighing system: Strain gauge
• Weighing surface (W×D): 500×400 mm
• Housing dimensions (W×D×H): 225×115×60 mm
• Display: LCD, digit height 21 mm
• Interfaces: RS-232 (optional),Ethernet (optional),Bluetooth BLE (v4.0) (optional),USB-Device (optional),KUP,WLAN (optional)
• Operating temperature: -10 °C to 40 °C
• Net weight approx.: 19 kg

Applications

The KERN DS 60K0.2 supports quality assurance, test-equipment monitoring and digital processes in production.

Compliance and origin

EAN 4045761487901, customs tariff code 84238220, country of origin DE (Made in Germany).
