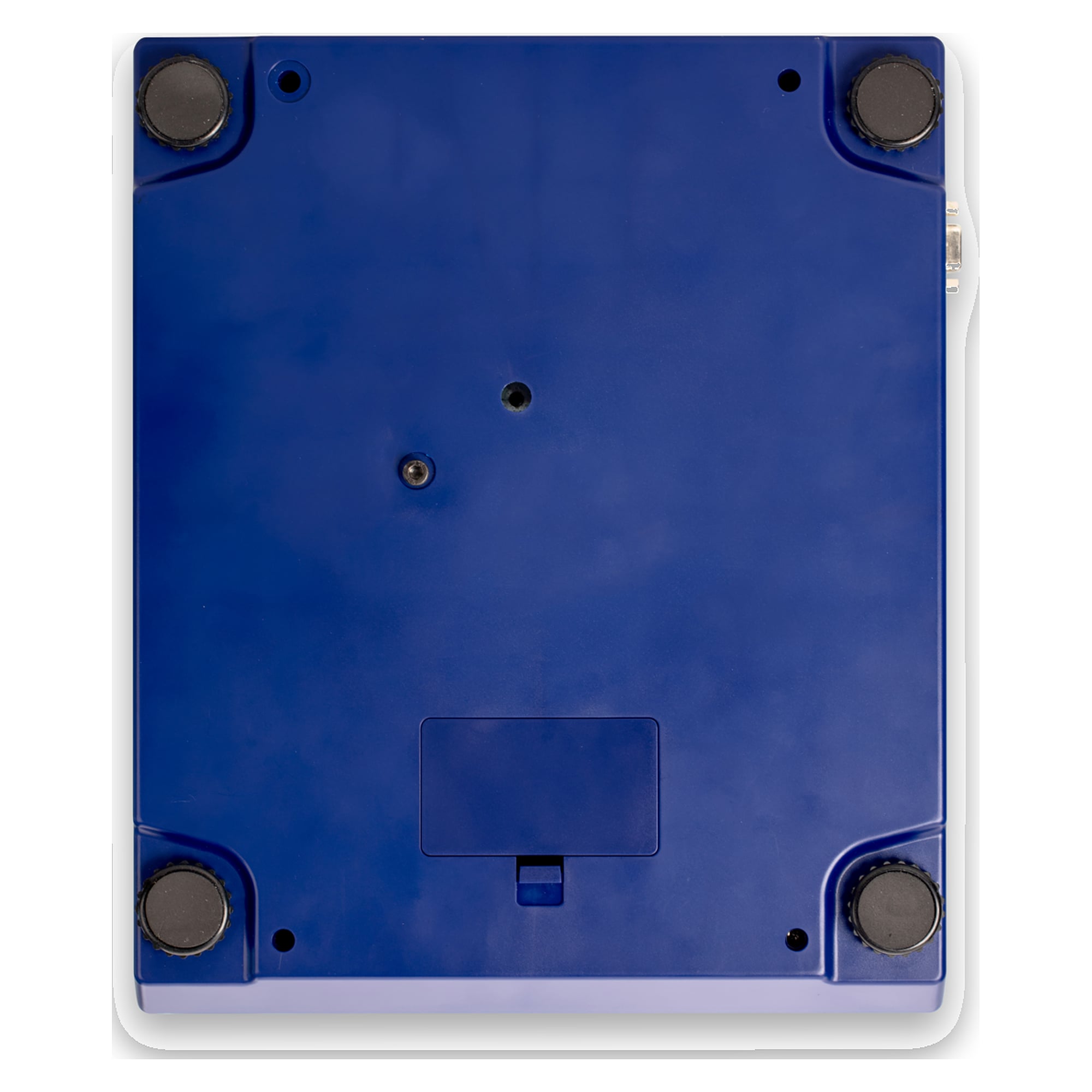

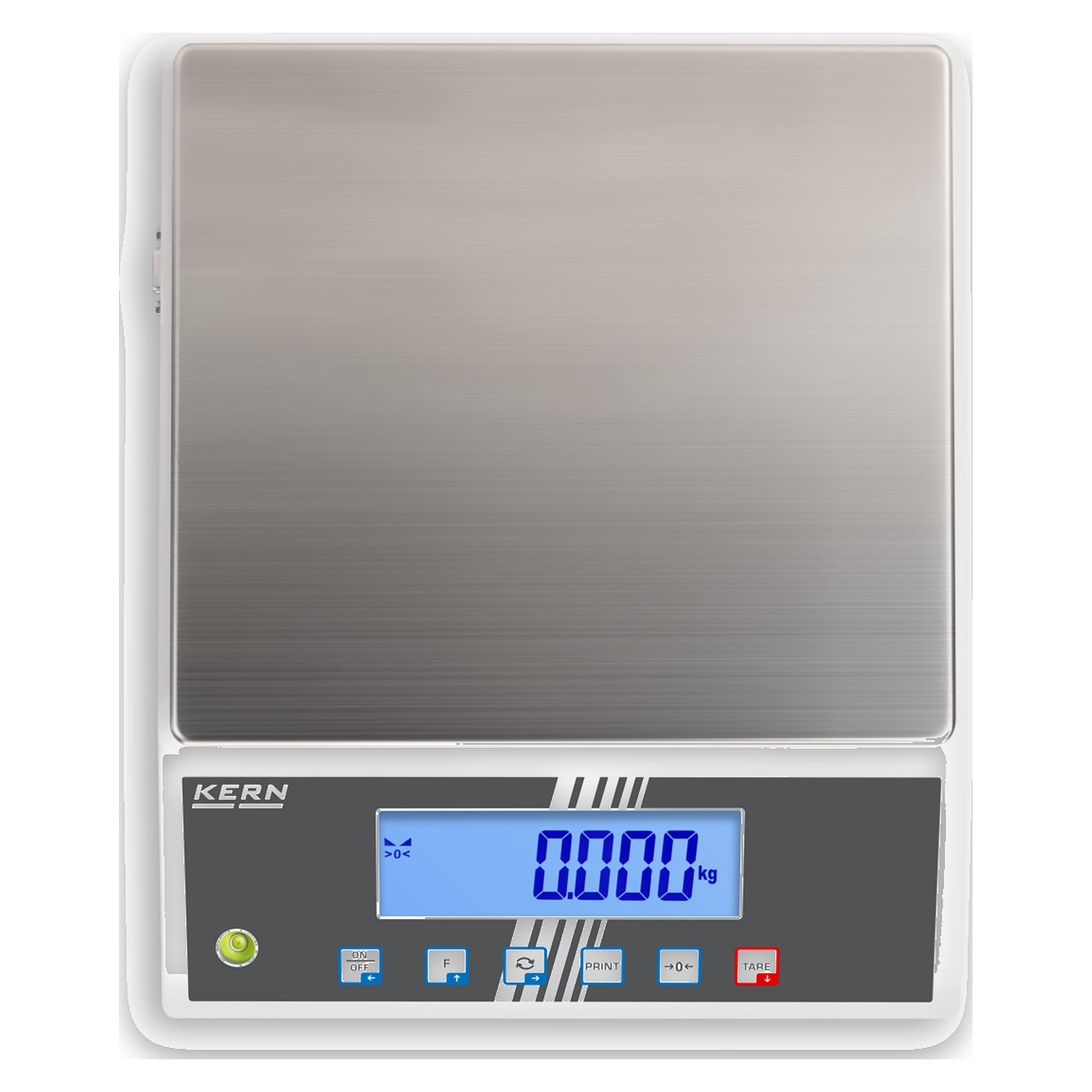

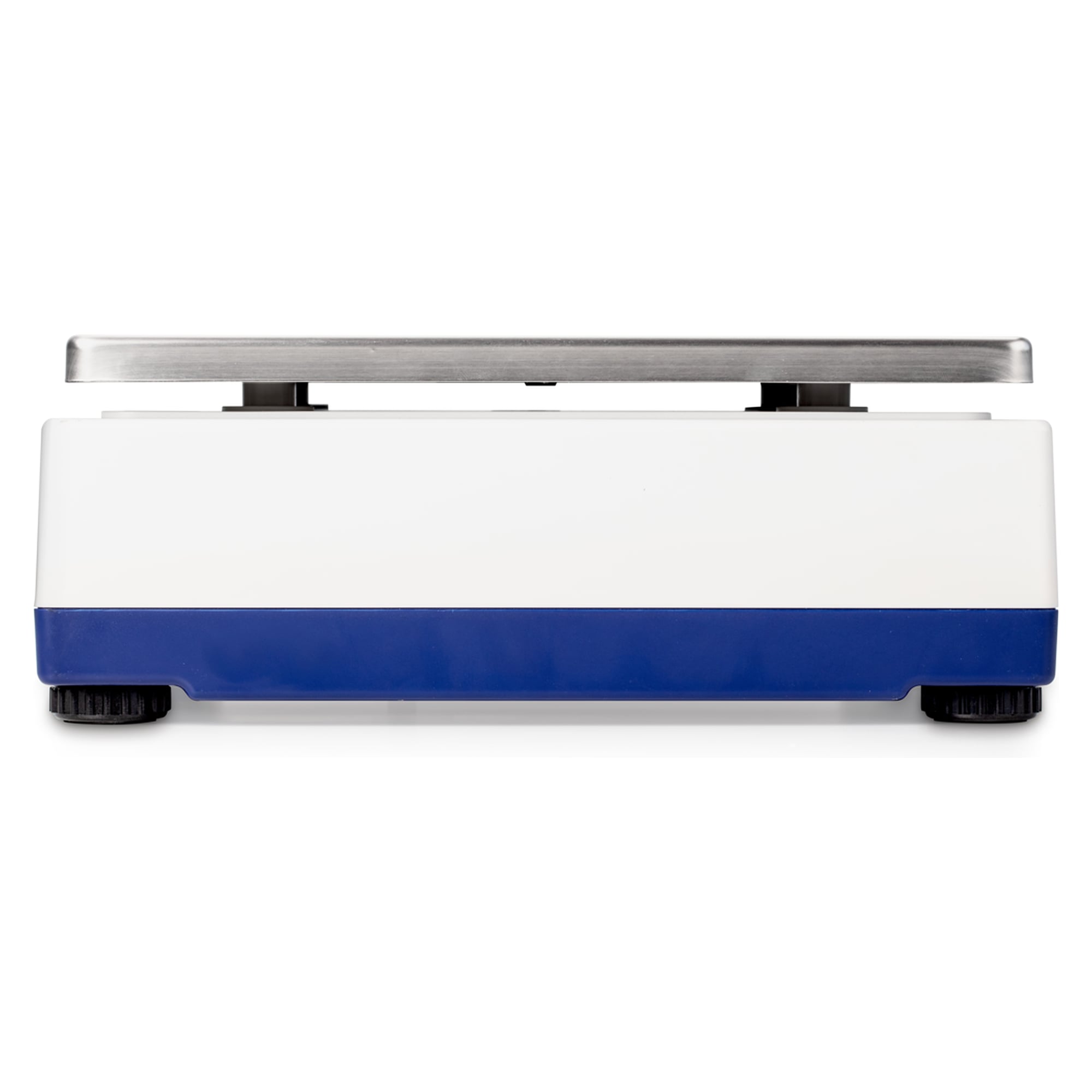

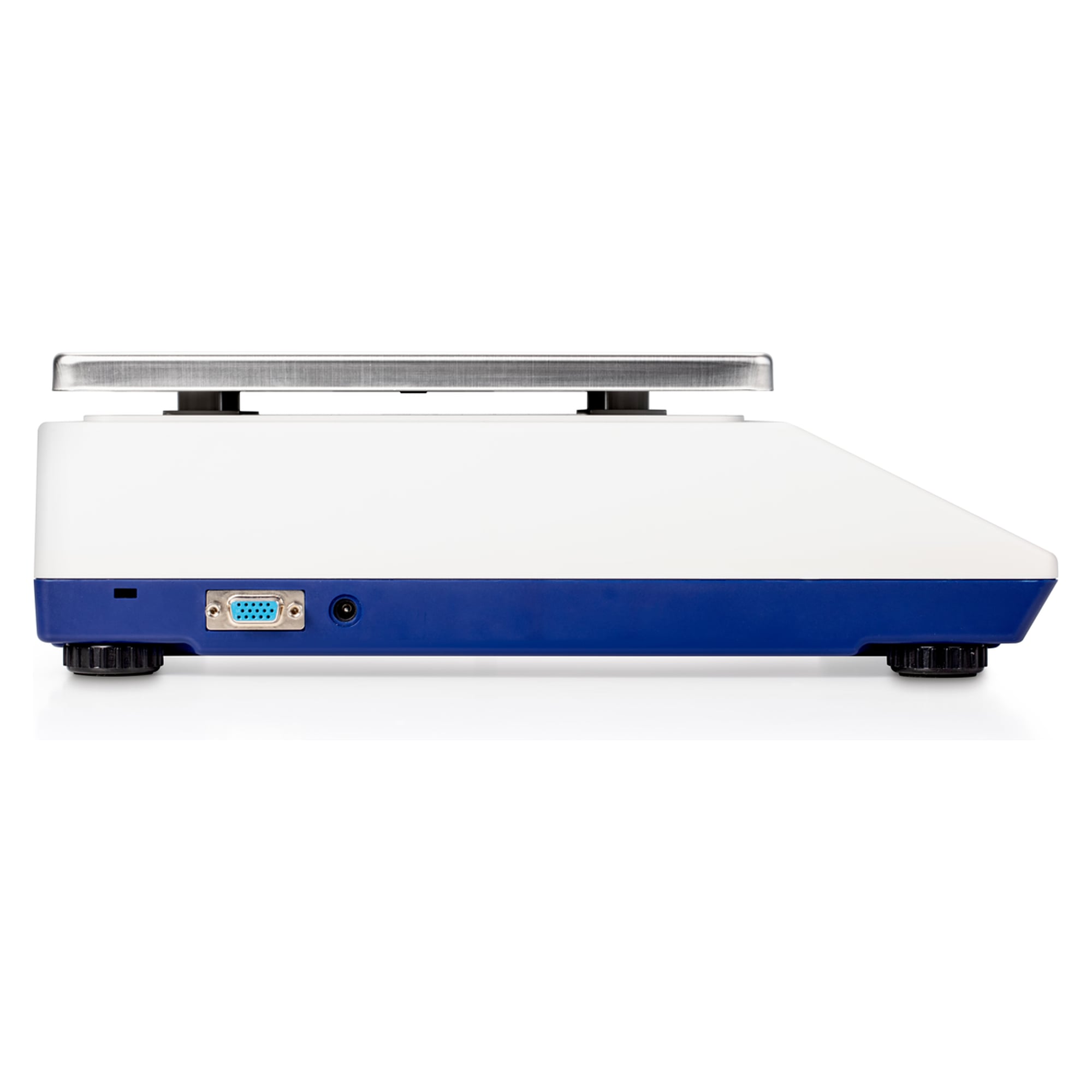

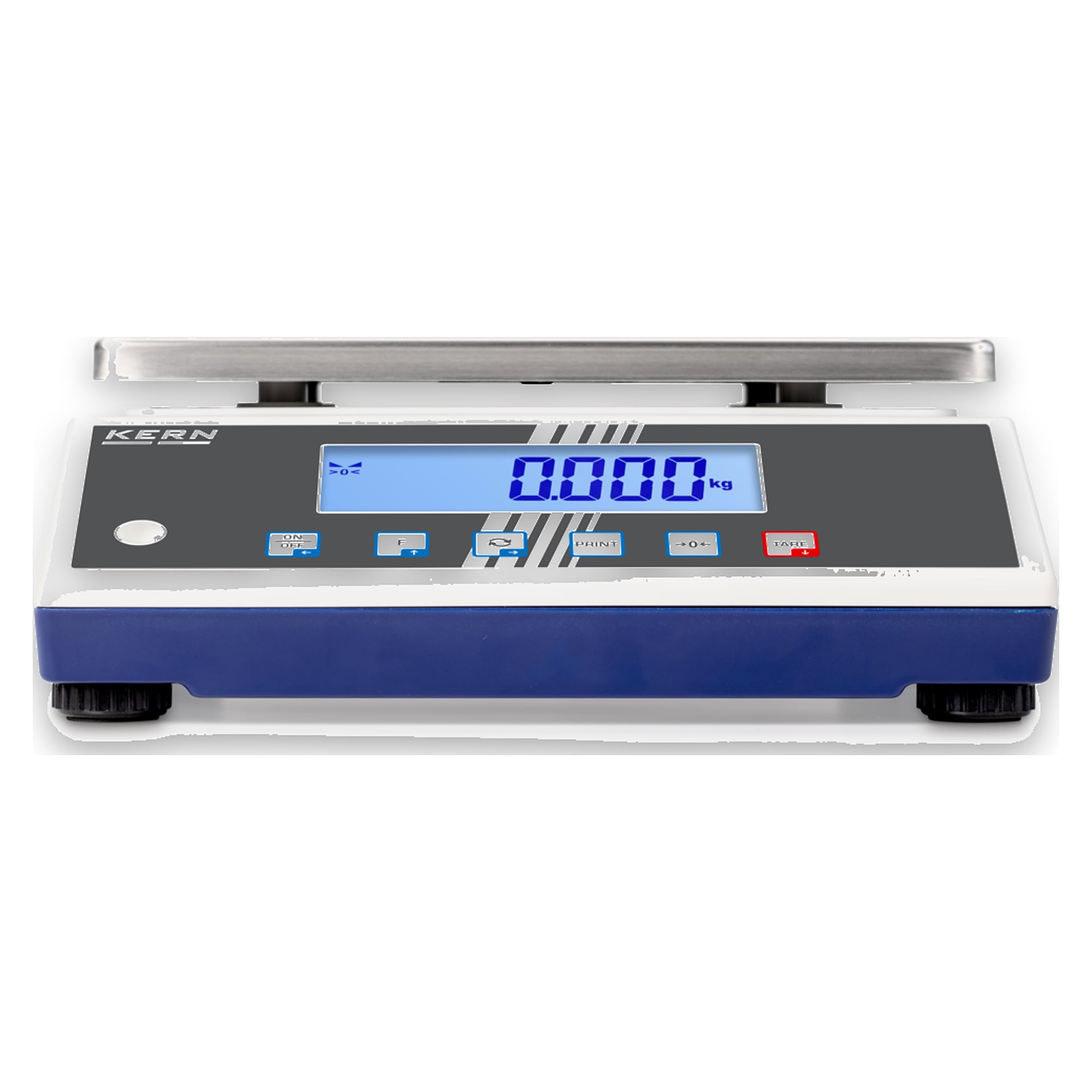

IoT-Line Bench Scale 15 kg / 30 kg Readability 0,005 kg / 0,01 kg - KERN FCB 30K-3DM
The KERN FCB 30K-3DM is a compact IoT bench scale with a 15 kg / 30 kg weighing range and 0.005 kg / 0.01 kg readability. Through the KERN Universal Port (KUP) up to three interfaces can be used in parallel, from RS-232 and USB to Ethernet, WLAN and Bluetooth. The checkweighing function with optical and acoustic signal supports portioning, dosing and sorting.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For anyone integrating control and portion weighing into a digital process chain, the KERN FCB 30K-3DM is an IoT bench scale that captures 15 kg / 30 kg at 0.005 kg / 0.01 kg readability and shares its data over up to three interfaces in parallel.
Benefits
- 15 kg / 30 kg range at 0.005 kg / 0.01 kg readability: fine resolution for check, portion and counting tasks
- KERN Universal Port (KUP): up to three interfaces in parallel: RS-232, USB, Ethernet, WLAN, Bluetooth
- Checkweighing with tolerance range: optical and acoustic signal supports portioning, dosing and sorting
- Verifiable, accuracy class III: multi-interval scale with automatic range switching, available legally verified
- Compact plastic housing 322 × 267 mm: space-saving, with in-use cover and optional battery operation
Applications
For industrial applications, pharmacies and workshops, warehouse logistics and digital processes. Compatible with KERN EasyTouch software.
Compliance
As a verifiable scale of accuracy class III, it can be supplied factory-calibrated and legally verified. EAN 4045761243514, customs tariff code 84238129.
Technical data
| Weighing range (max.) | 15 kg; 30 kg |
|---|---|
| Readability (d) | 0,005 kg; 0,01 kg |
| Verification value (e) | 0,005 kg; 0,01 kg |
| Accuracy class | III |
| Minimum load (Min) | 0,1 kg |
| Repeatability | 0,005 kg; 0,01 kg |
| Linearity | ± 0,005 kg; 0,01 kg |
| Weighing system | Strain gauge |
| Stabilization time | 2 s |
| Weighing surface (W×D) | 252×225 mm |
| Display digit height | 25 mm |
| Housing | Plastic |
| Interfaces | RS-232 (optional),Ethernet (optional),Alibi Speicher,Bluetooth BLE (v4.0) (optional),USB-Device (optional),KUP,WLAN (optional) |
| Net weight | 4,0 kg |
| Weight | 4.6 kg |
| Manufacturer | Kern |
| Manufacturer Nr. | FCB 30K-3DM |
| EAN | 4045761243514 |
| HS-Code | 84238129 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
| Material | Plastic |
| Wägebereich max (g) | 30000 |
| Ablesbarkeit (g) | 5 |
| Display type | LCD |
| Verification class | III |
| Interface | Alibi memory, Bluetooth, Ethernet, KUP, RS-232, USB device, WLAN |
